科技數據
| U | 230 V | Operating voltage |
| f | 50 – 60 Hz | Power frequency |
| P | 3 kVA | Power consumption |
| I | 13 A | Current rating |
| ϑh max | 240 °C | Max. heating temperature |
0 – 99 min | Heating time | |
Digital | Display | |
1 | Magnetic probe, quantity | |
| ≈m | 24.2 kg | 重量 |
Functions
+ | Temperature hold | |
+ | Automatic demagnetization, <2A/cm | |
— | Swivel arm | |
— | Log function | |
— | Delta-T control | |
+ | Temperature control | |
+ | Time control | |
— | Temperature and time control | |
— | Temperature and speed control | |
+ | Overheating protection | |
+ | Automatic power reduction | |
+ | Device supports horizontal / lying heating of the workpiece | |
+ | Device supports vertical / hanging heating of the workpiece |

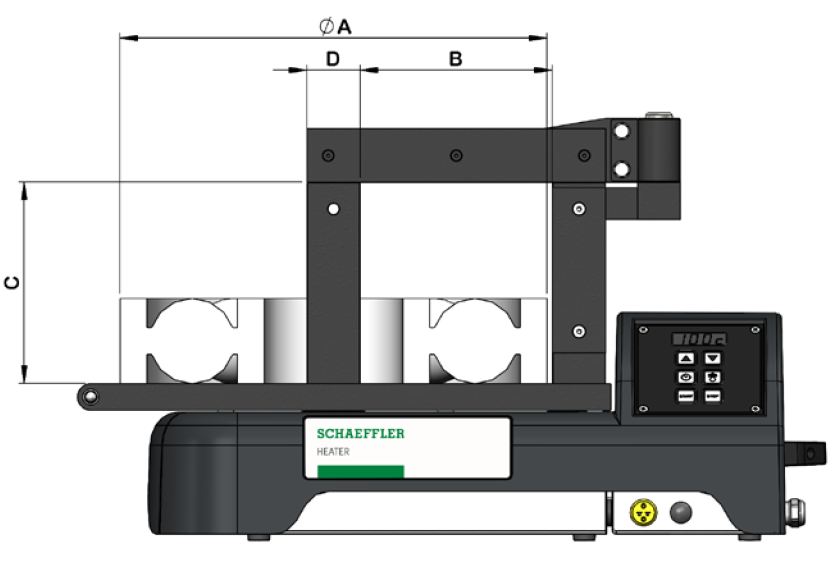

尺寸
600 mm | Length HEATER | |
226 mm | Width HEATER | |
274 mm | Height HEATER | |
| B | 120 mm | Space between poles |
| C | 130 mm | Pole length |
| D | 40x50 | Pole cross section (mm²) |
Workpiece to be heated
10 mm | Min. 內徑 workpiece, vertical heating: with included yoke | |
65 mm | Min. 內徑 workpiece, horizontal heating | |
| ØAmax | 400 mm | Max. 外徑 workpiece |
115 mm | Max. workpiece width, vertical heating | |
125 mm | Max. workpiece width, horizontal heating | |
| mb max | 50 kg | Max. workpiece weight |
附加資訊
3 | Yokes included, quantity | |
7x7, 14x14, 40x50 | Yokes included, cross section (mm²) |
您目前的產品型號
| Series | BASIC | Base version |
| Version | 50 | mb max = 50 kg |
