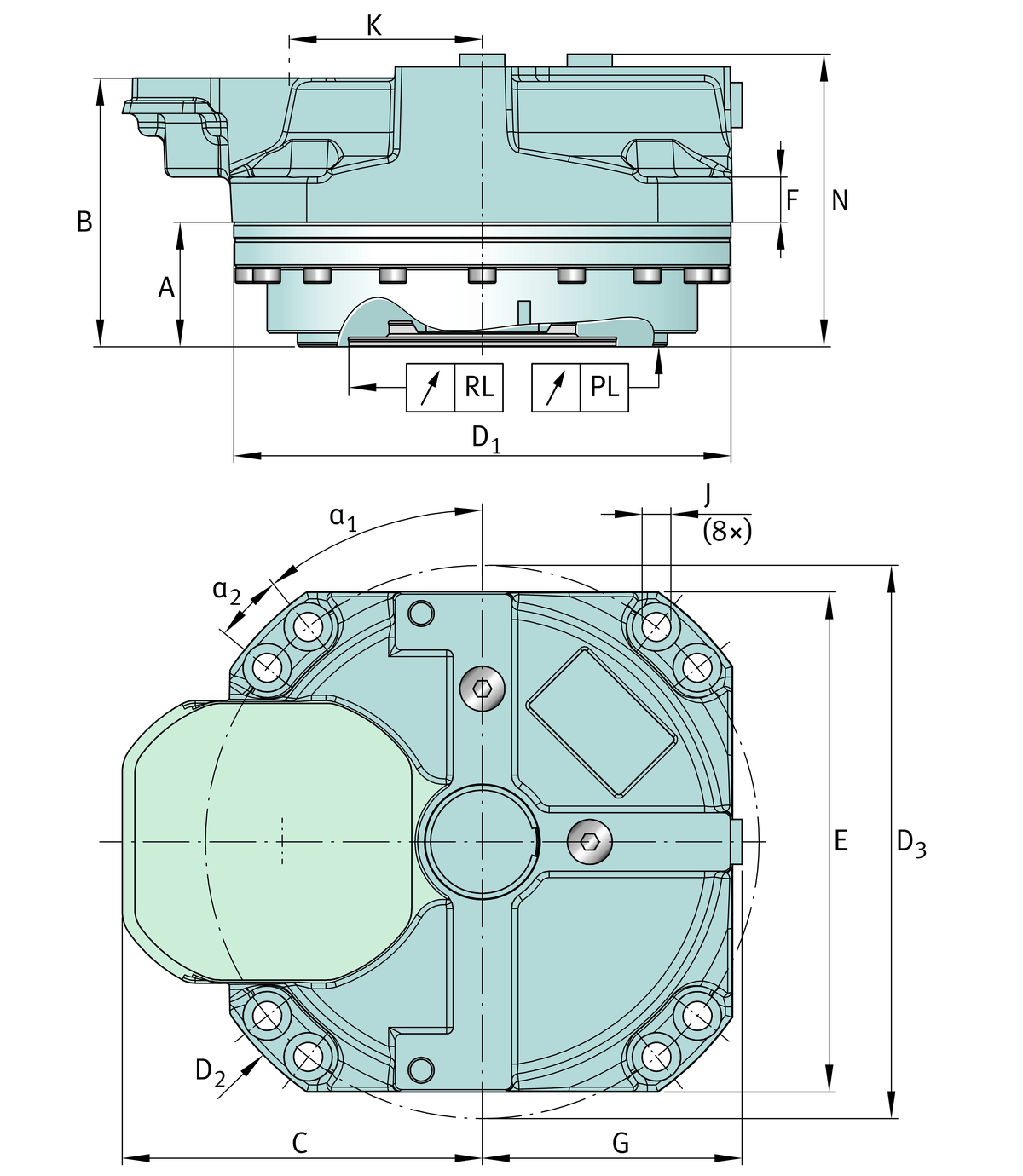

主要尺寸與性能資料
| i | 200 | Gear reduction ratio |
| JJ | 0.22 kg*cm2 | Mass moment of interia at input |
| nmax out | 25 1/min | Max. output speed |
| nmax per In | 5,000 1/min | Maximum input drive speed |
| nper In | 3,500 1/min | |
| Ck | 1,560 Nm/arcmin | 傾斜剛性 |
| Cr | 260 Nm/arcmin | Torsional rigidity |
| MOut | 980 Nm | Maximum torque |
| Mnom Out | 770 Nm | Rated torque |
| Macc | 1,075 Nm | Acceleration moment |
| Mestopp | 2,530 Nm | E-stop moment |
| MTilt | 1,280 Nm | Continuous tilting moment |
| MTilt estop | 4,345 Nm | Max. e-stop tilting moment |
| Fa max dyn | 18.5 kN | Max. dynamic axial force |
| Fa max stat | 168 kN | Max. static axial force |
| Fr max stat | 11.5 kN | Max. dynamic radial force |
| Fr max stat | 57 kN | Max. static radial force |
| Pρ | 88 Nm/kg | Power density |
| φα back | 0.1 arcmin | Torsional backlash at output |
| φα lost | 0.6 arcmin | Lost Motion at output |
| Ups | 50 arcsec | Synchronous running accuracy |
| ≈m | 11.2 kg | 重量 |
您目前的產品型號
| Size code | 080 | 080 |
| 優化設計 | B | Gear unit with flange |
| Product type | PSC | Precision Planetary Gearboxes Series PSC |
| Engine construction variant | 2 | Unconnected input shaft with keyway |
| Design | V | Solid shaft |
