Main dimensions

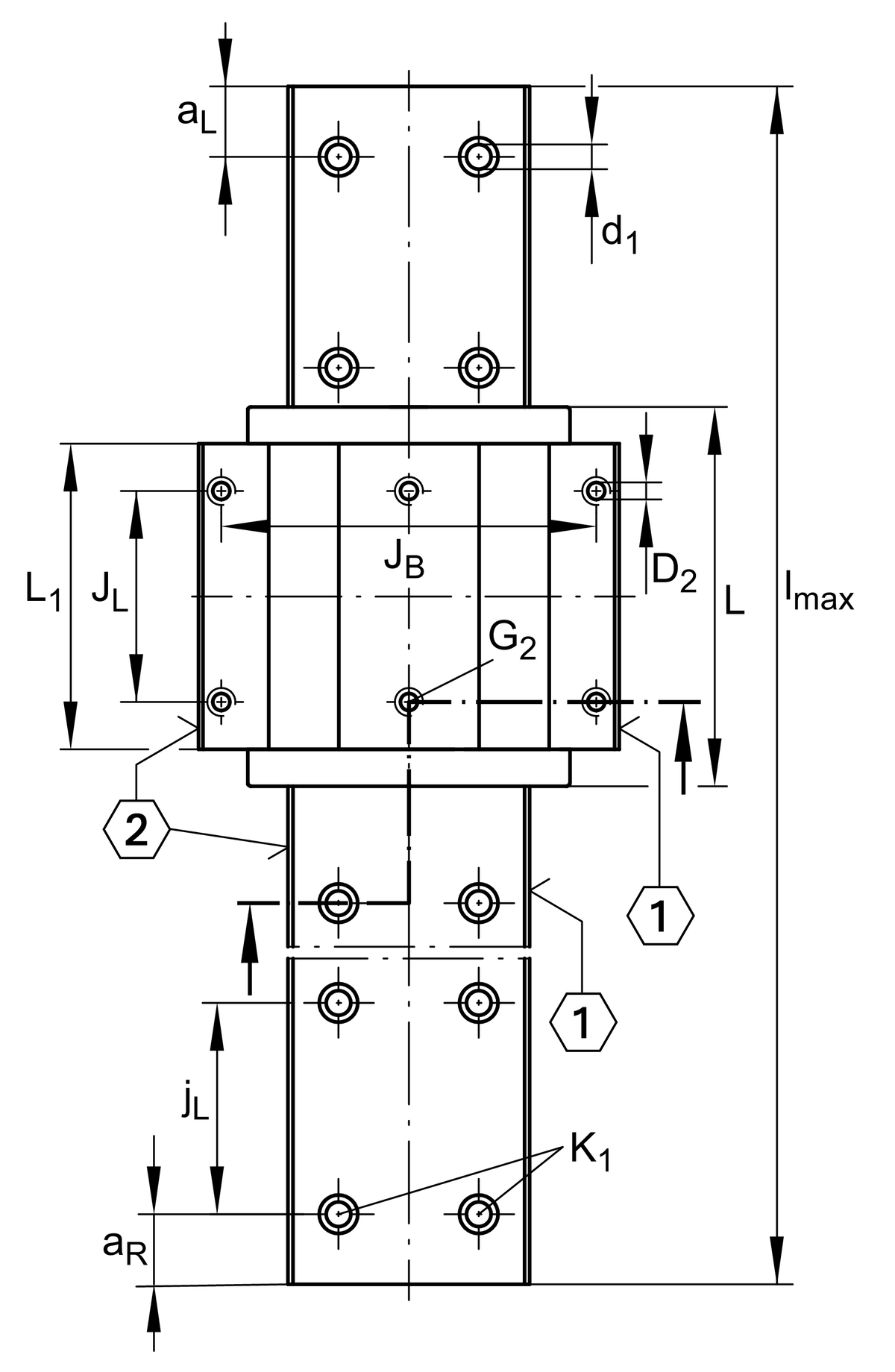

| lmax | 2,880 mm | Max length single piece guideway 1 |
| H | 27 mm | height system |
| B | 80 mm | width carriage |
| L | 87.3 mm | overall length carriage |
Technical data

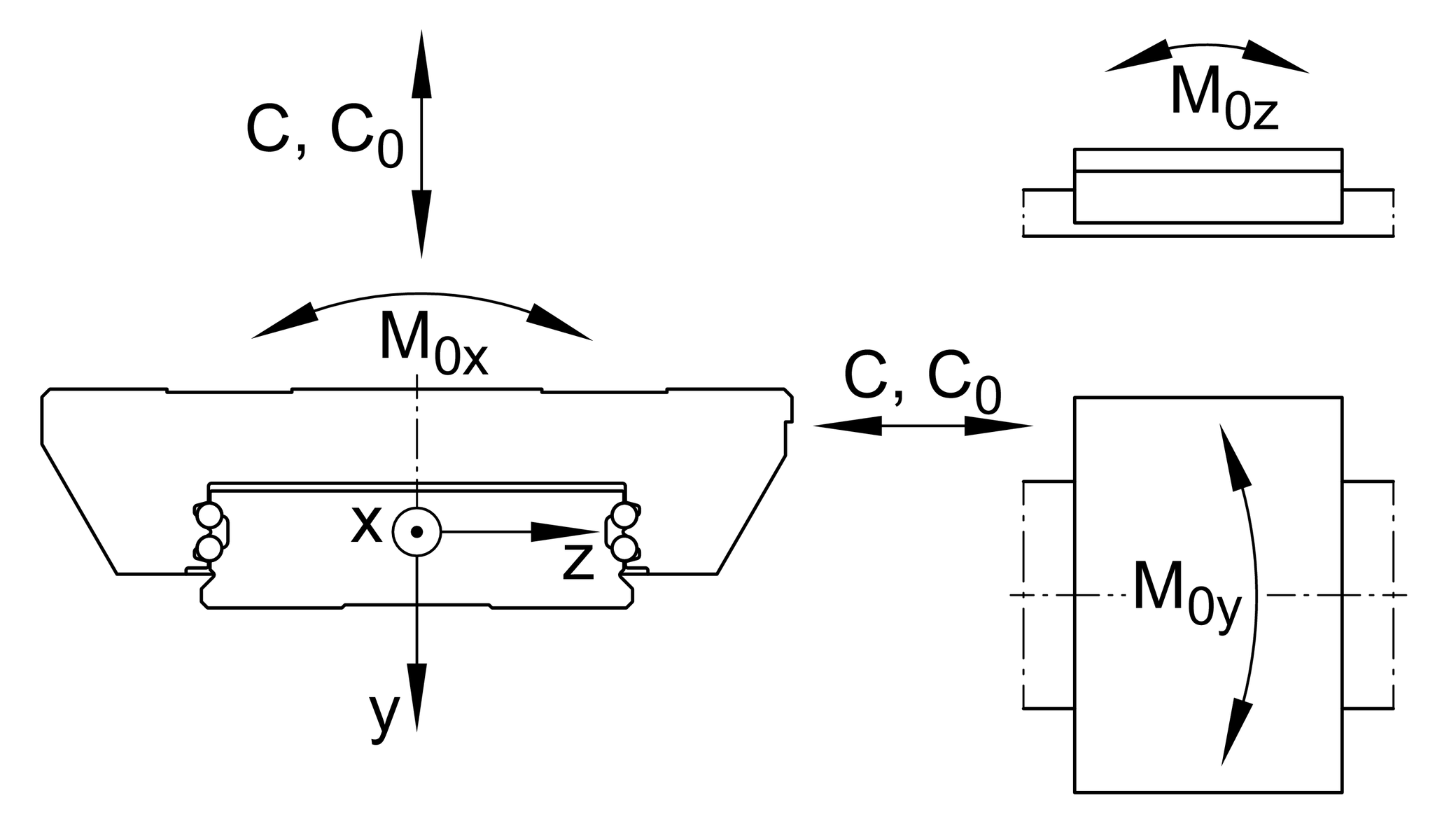

| C | 16,200 N | dynamic load rating 2 |
| C0 | 36,500 N | static load rating 2 |
| M0x | 920 Nm | static moment rating about X axis |
| M0y | 400 Nm | static moment rating about Y axis |
| M0z | 400 Nm | static moment rating about Z axis |
Mounting dimensions

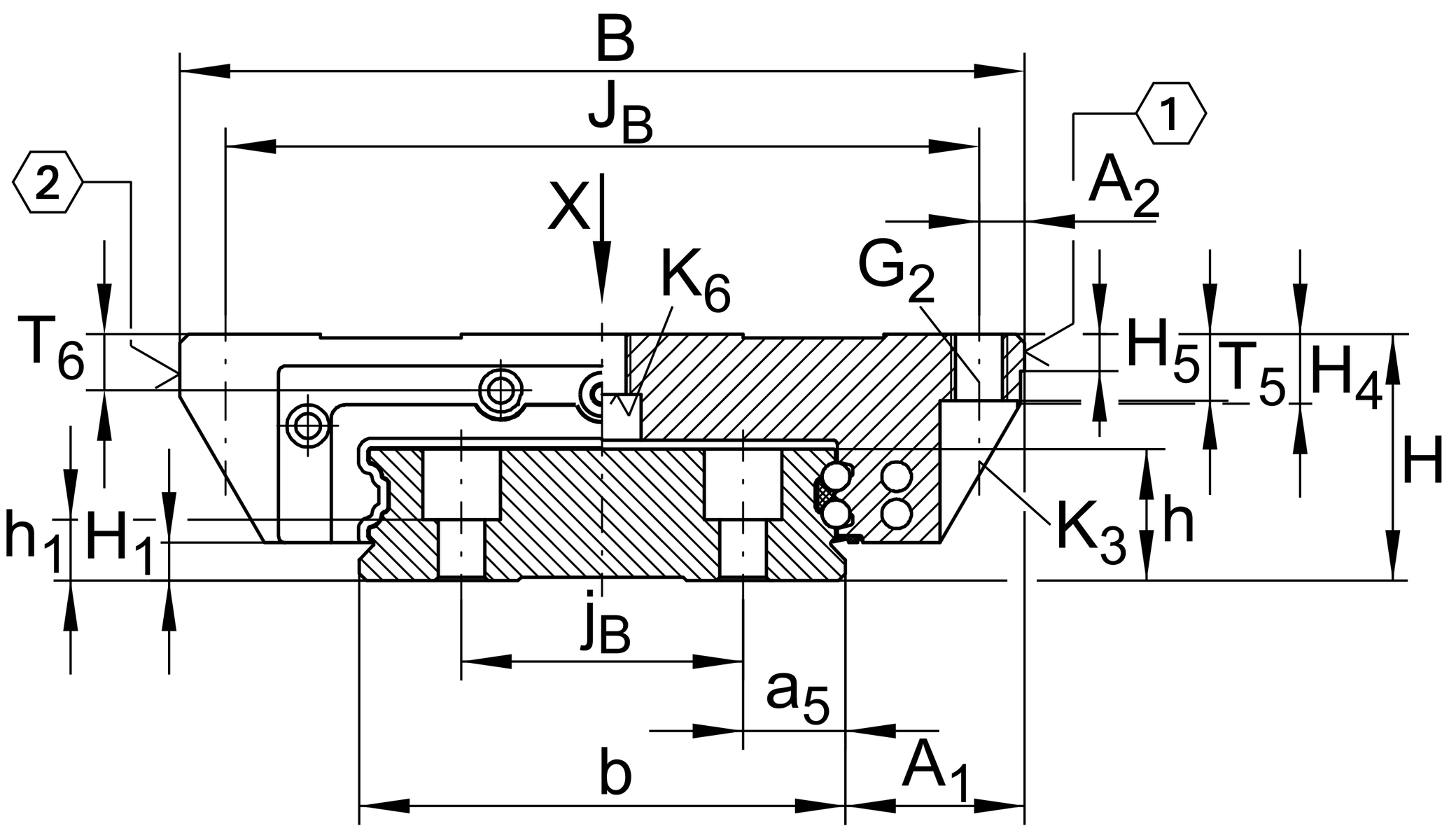

| A1 | 19 mm | |
| JB | 70 mm | |
| jB | 24 mm | |
| b | 42 mm | width rail |
| a5 | 9 mm | |
| A2 | 5 mm | |
| L1 | 67.9 mm | |
| JL | 40 mm | |
| jL | 60 mm | |
| aL min | 20 mm | 3 |
| aL max | 53 mm | 3 |
| aR min | 20 mm | 3 |
| aR max | 53 mm | 3 |
| H1 | 4.6 mm | |
| H4 | 10.6 mm | |
| H5 | 5 mm | |
| T5 | 10 mm | |
| T6 | 6 mm | |
| h | 17 mm | |
| h1 | 10 mm | |
| G2 | M6 | fixing screws |
| G2 MA | 10 Nm | maximum tightening torque 4 |
| K1 | M4 | fixing screws |
| K1 MA | 5 Nm | maximum tightening torque 4 |
| K3 | M5 | fixing screws |
| K3 MA | 10 Nm | maximum tightening torque 4 |
| K6 | M6 | fixing screws |
| K6 MA | 17 Nm | maximum tightening torque 4 |
| d1 | 4.6 mm | |
| D2 | 5.5 mm | |

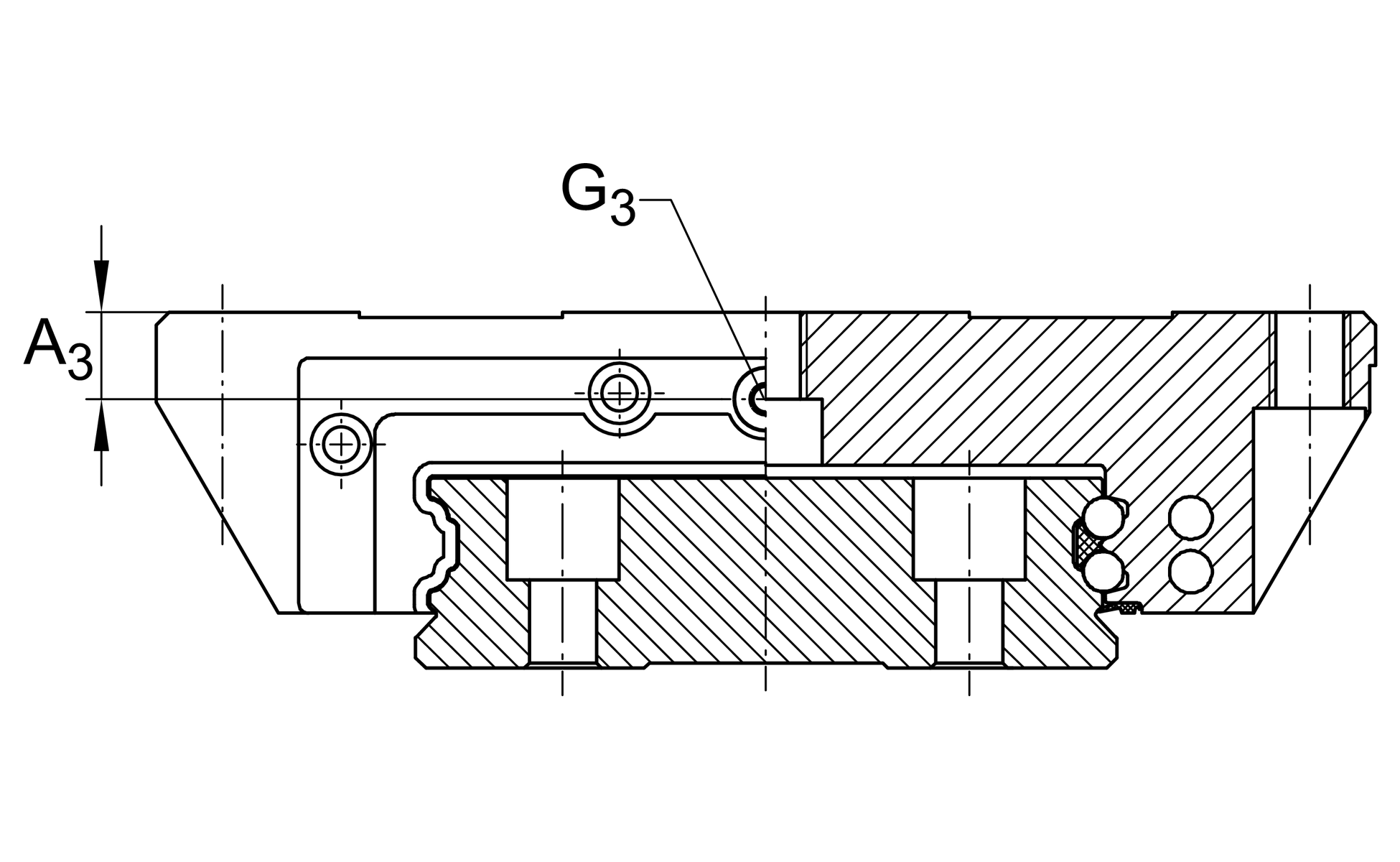

| A3 | 5 mm | |
| G3 | M5 | |
| t G3 | 5 mm | 5 |
Related products
KWVE20-WL | Carriage | |
TKVD20-W | suitable Guide Rail |
Your current product variant
| Size code | 20 | |
| Carriage design | WL | Wide, long carriage and wide guideway |
