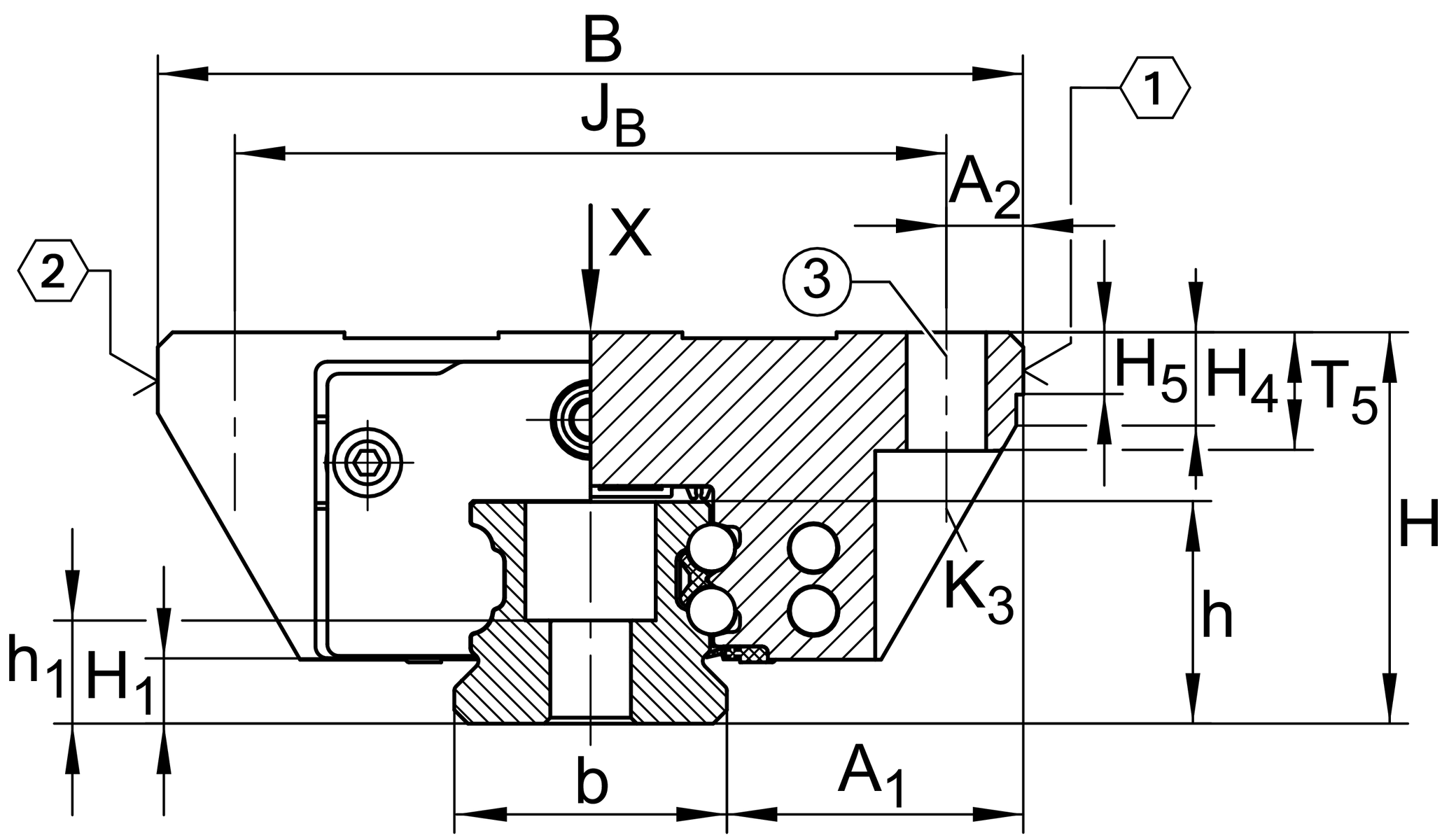

Main dimensions
| lmax | 5,880 mm | Max length single piece guideway 1 |
| H | 28 mm | height system |
| B | 59 mm | width carriage |
| L | 71.4 mm | overall length carriage |
Technical data
| C | 13,100 N | dynamic load rating 2 |
| C0 | 27,000 N | static load rating 2 |
| M0x | 332 Nm | static moment rating about X axis |
| M0y | 240 Nm | static moment rating about Y axis |
| M0z | 240 Nm | static moment rating about Z axis |

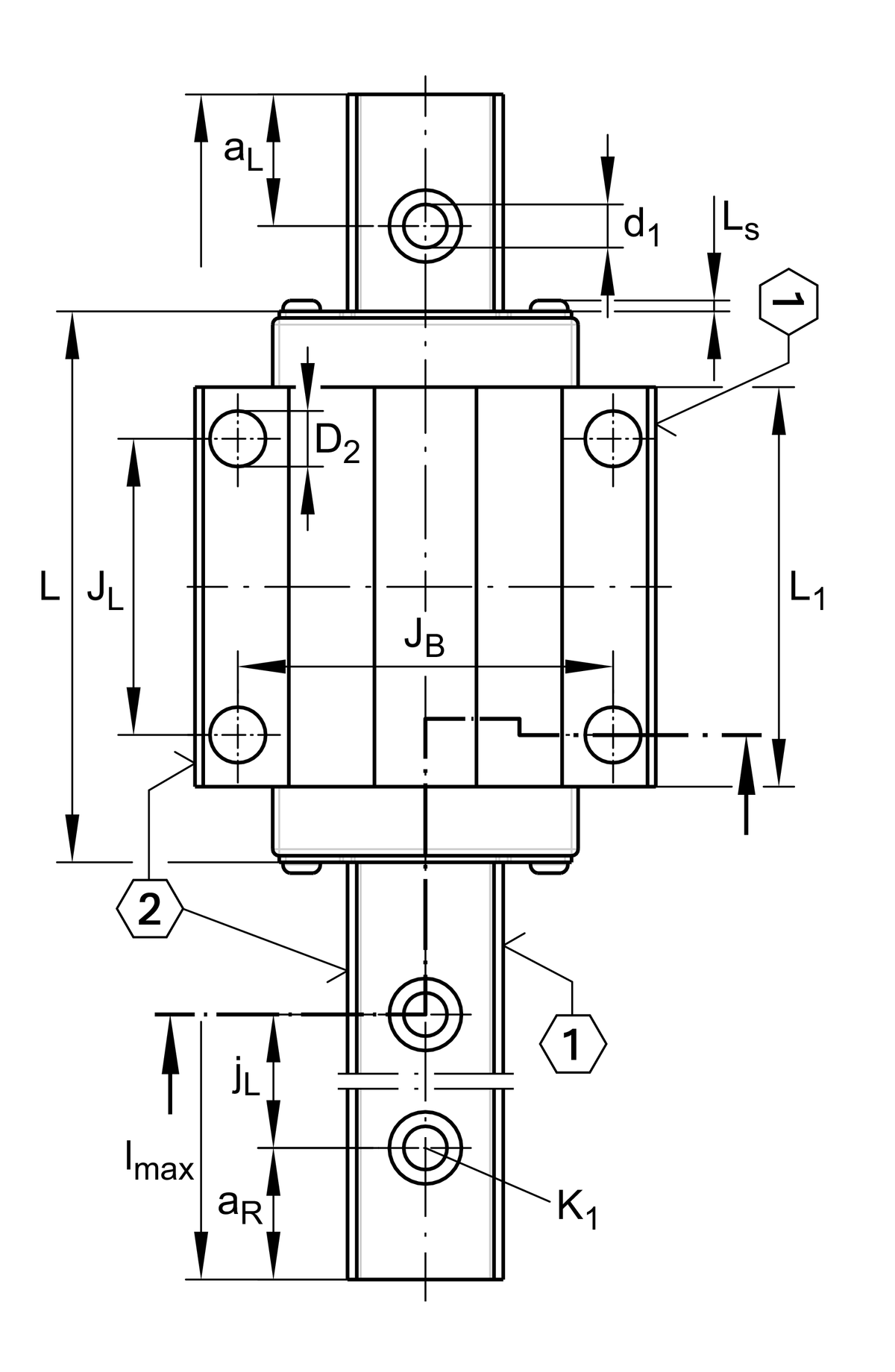

Mounting dimensions
| A1 | 19.5 mm | |
| JB | 49 mm | |
| b | 20 mm | width rail |
| Tolb | -0.005 mm | Upper tolerance |
| Tolb | -0.03 mm | Lower tolerance |
| A2 | 5 mm | |
| L1 | 50.4 mm | |
| Ls | 1.3 mm | |
| JL | 32 mm | |
| jL | 60 mm | |
| aL min | 20 mm | 3 |
| aL max | 53 mm | 3 |
| aR min | 20 mm | 3 |
| aR max | 53 mm | 3 |
| H1 | 4.5 mm | |
| H4 | 11.2 mm | |
| H5 | 5.25 mm | |
| T5 | 9 mm | |
| h | 17 mm | |
| h1 | 9.1 mm | |
| K1 | M5 | fixing screws |
| K1 MA | 10 Nm | maximum tightening torque 4 |
| K3 | M5 | fixing screws |
| K3 MA | 10 Nm | maximum tightening torque 4 |
| d1 | 5.8 mm | |
| D2 | 5.5 mm | |

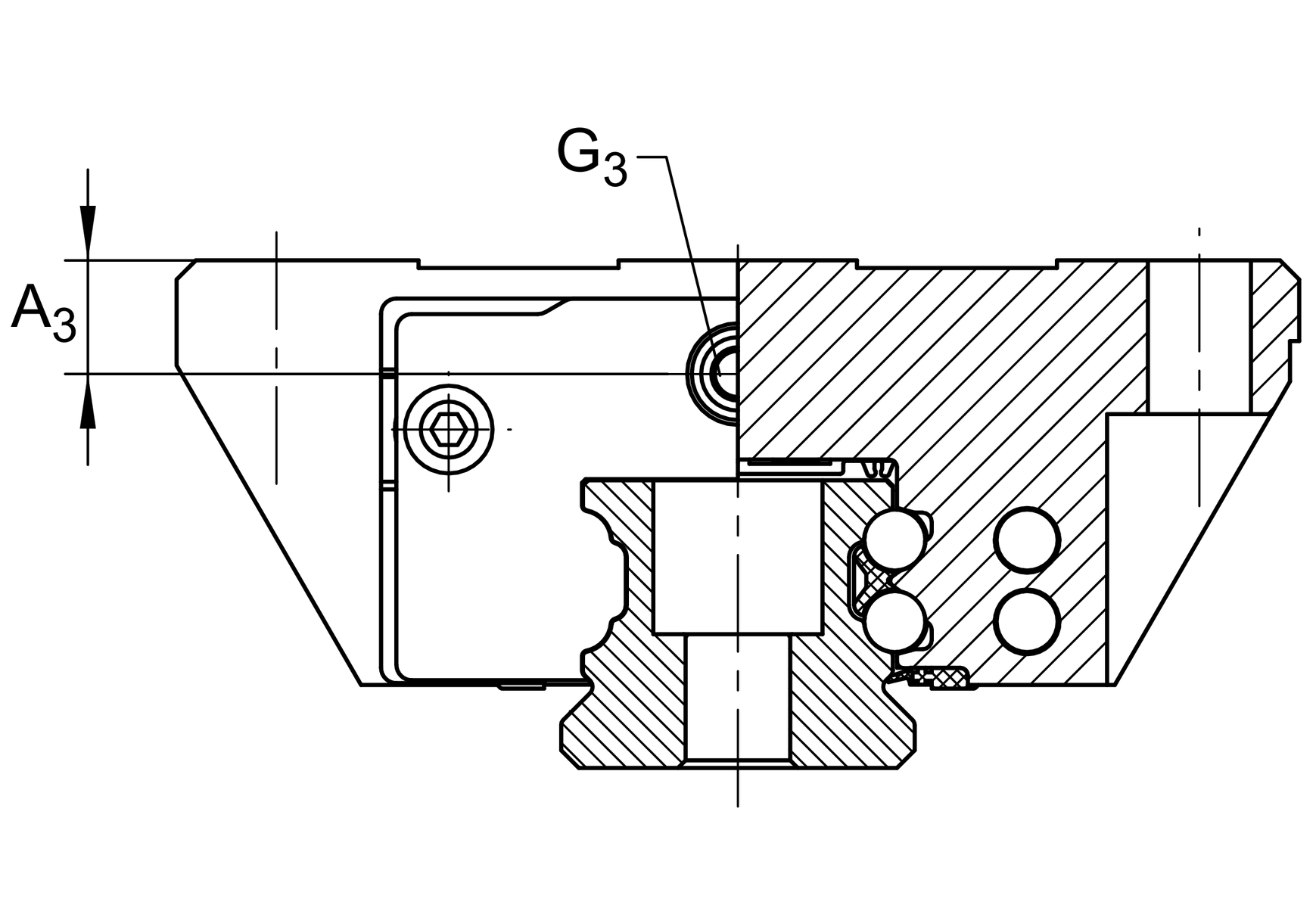

| A3 | 6 mm | |
| G3 | M5 | |
| t G3 | 7 mm | 5 |

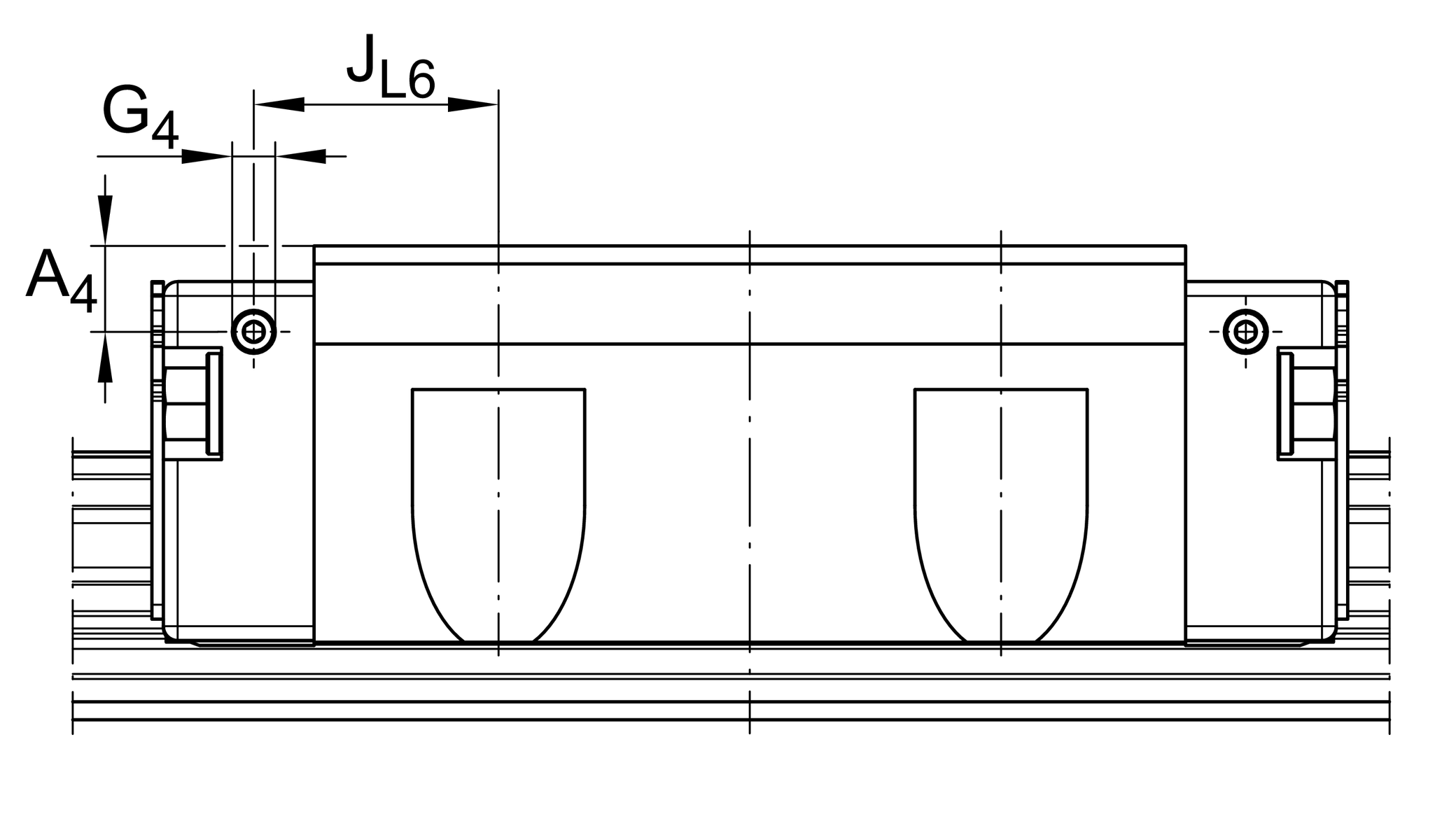

| A4 | 4.3 mm | |
| G4 | M3 | |
| t G4 | 5.5 mm | 5 |
| JL6 | 13.4 mm |
Related products
KWVE20-B-E | Carriage | |
TKVD20 | suitable Guide Rail |
Your current product variant
| Size code | 20 | |
| Carriage design | E | Expanded design (carriage without screw threads) |
| Version | B |
