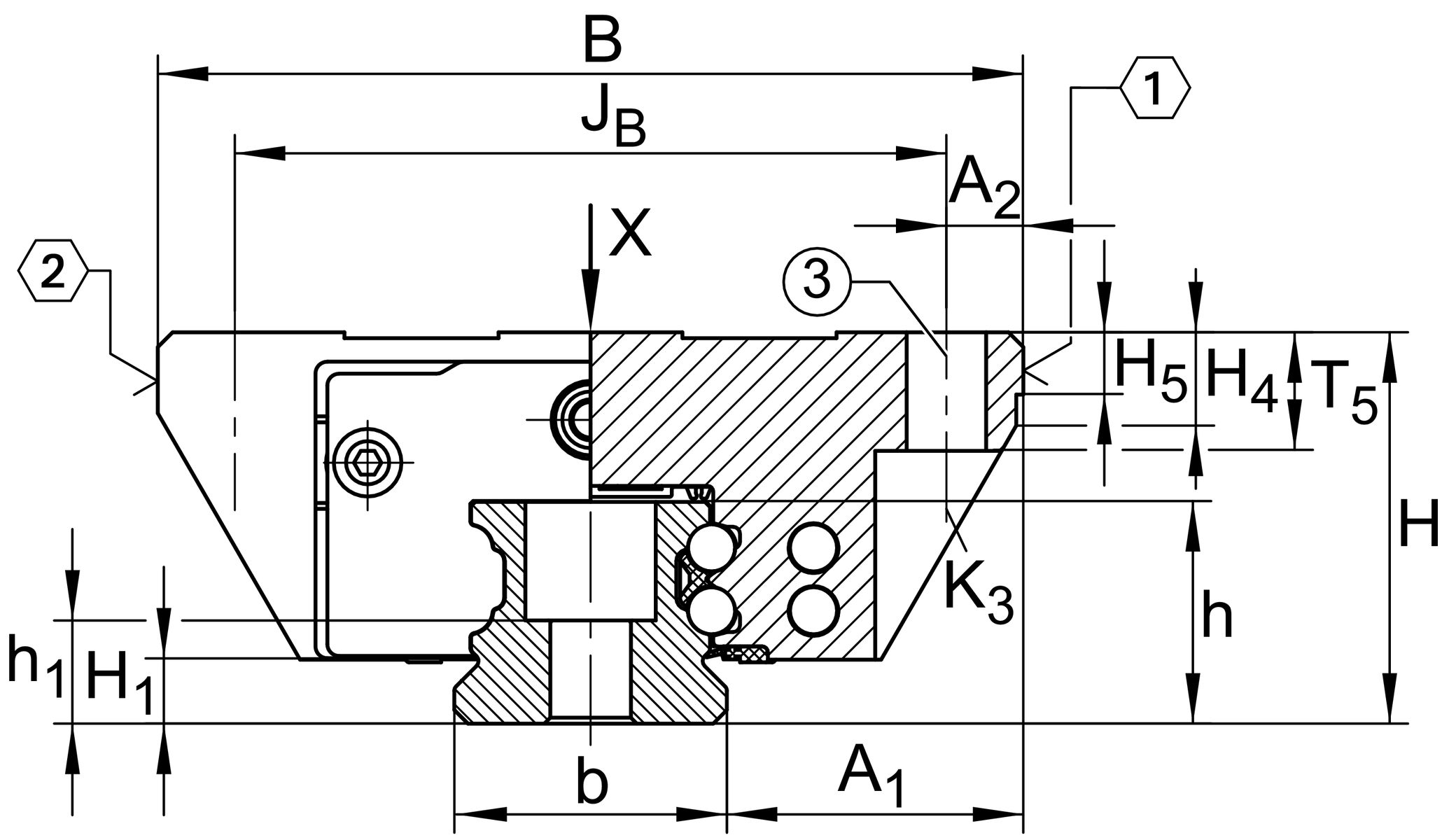

Main dimensions
| lmax | 2,880 mm | Max length single piece guideway 1 |
| H | 24 mm | height system |
| B | 52 mm | width carriage |
| L | 61.2 mm | overall length carriage |
Technical data
| C | 7,200 N | dynamic load rating 2 |
| C0 | 14,500 N | static load rating 2 |
| M0x | 150 Nm | static moment rating about X axis |
| M0y | 100 Nm | static moment rating about Y axis |
| M0z | 100 Nm | static moment rating about Z axis |

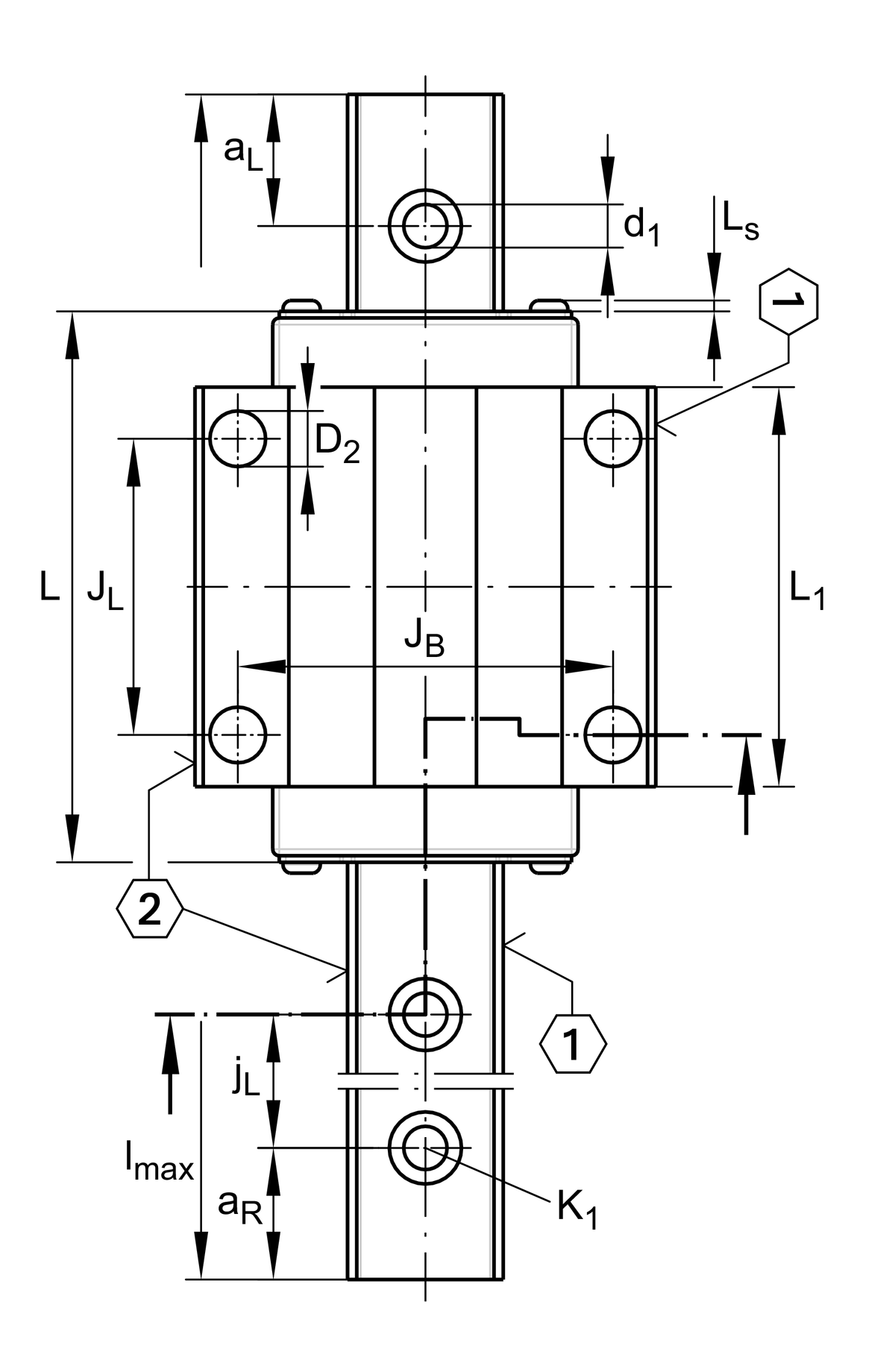

Mounting dimensions
| A1 | 18.5 mm | |
| JB | 41 mm | |
| b | 15 mm | width rail |
| Tolb | -0.005 mm | Upper tolerance |
| Tolb | -0.03 mm | Lower tolerance |
| A2 | 5.5 mm | |
| L1 | 39.8 mm | |
| Ls | 1.3 mm | |
| JL | 26 mm | |
| jL | 60 mm | |
| aL min | 20 mm | 3 |
| aL max | 53 mm | 3 |
| aR min | 20 mm | 3 |
| aR max | 53 mm | 3 |
| H1 | 4.3 mm | |
| H4 | 6.1 mm | |
| H5 | 4.75 mm | |
| T5 | 7 mm | |
| h | 15 mm | |
| h1 | 8.15 mm | |
| K1 | M4 | fixing screws |
| K1 MA | 5 Nm | maximum tightening torque 4 |
| K3 | M4 | fixing screws |
| K3 MA | 5 Nm | maximum tightening torque 4 |
| d1 | 4.6 mm | |
| D2 | 4.5 mm | |

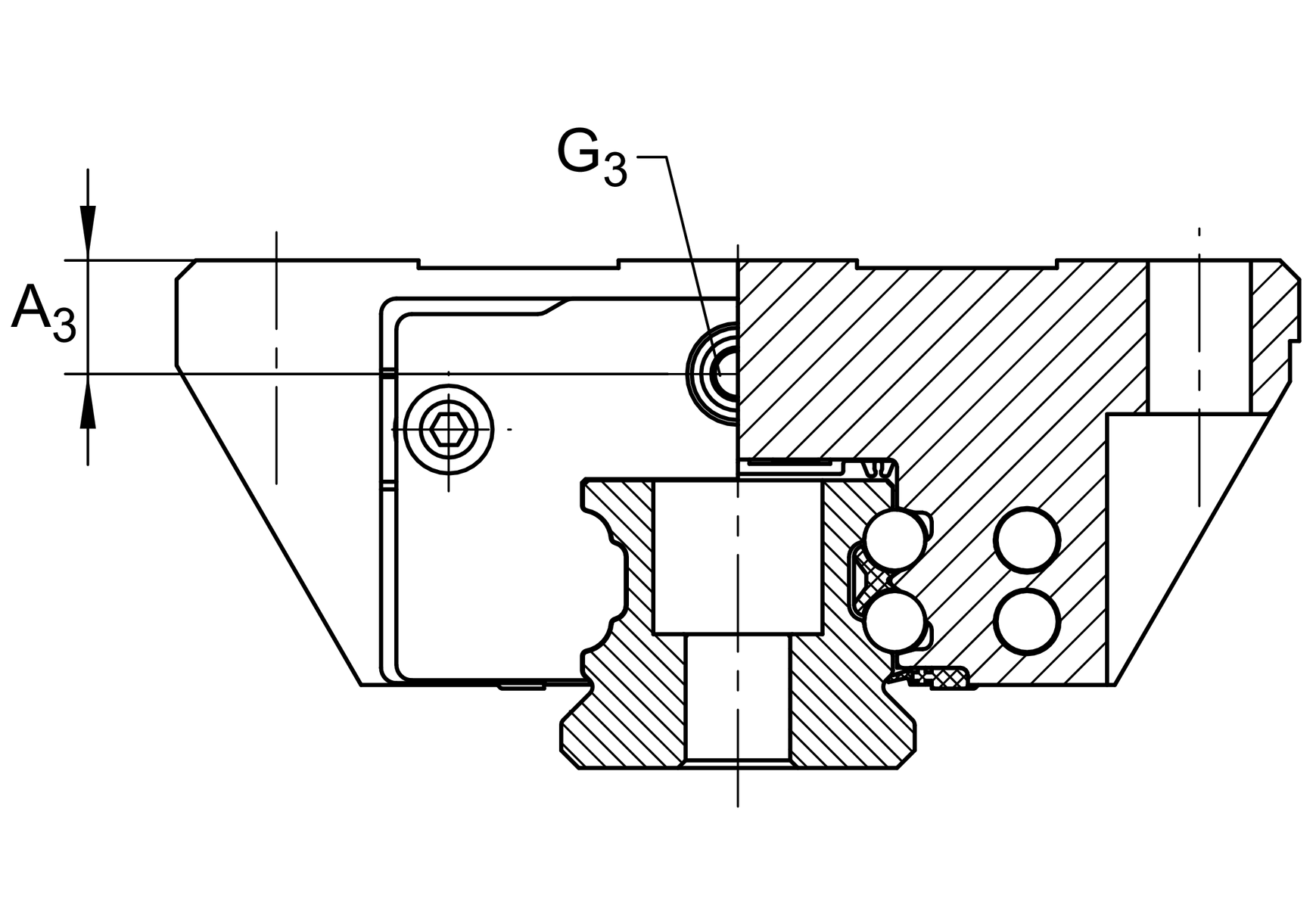

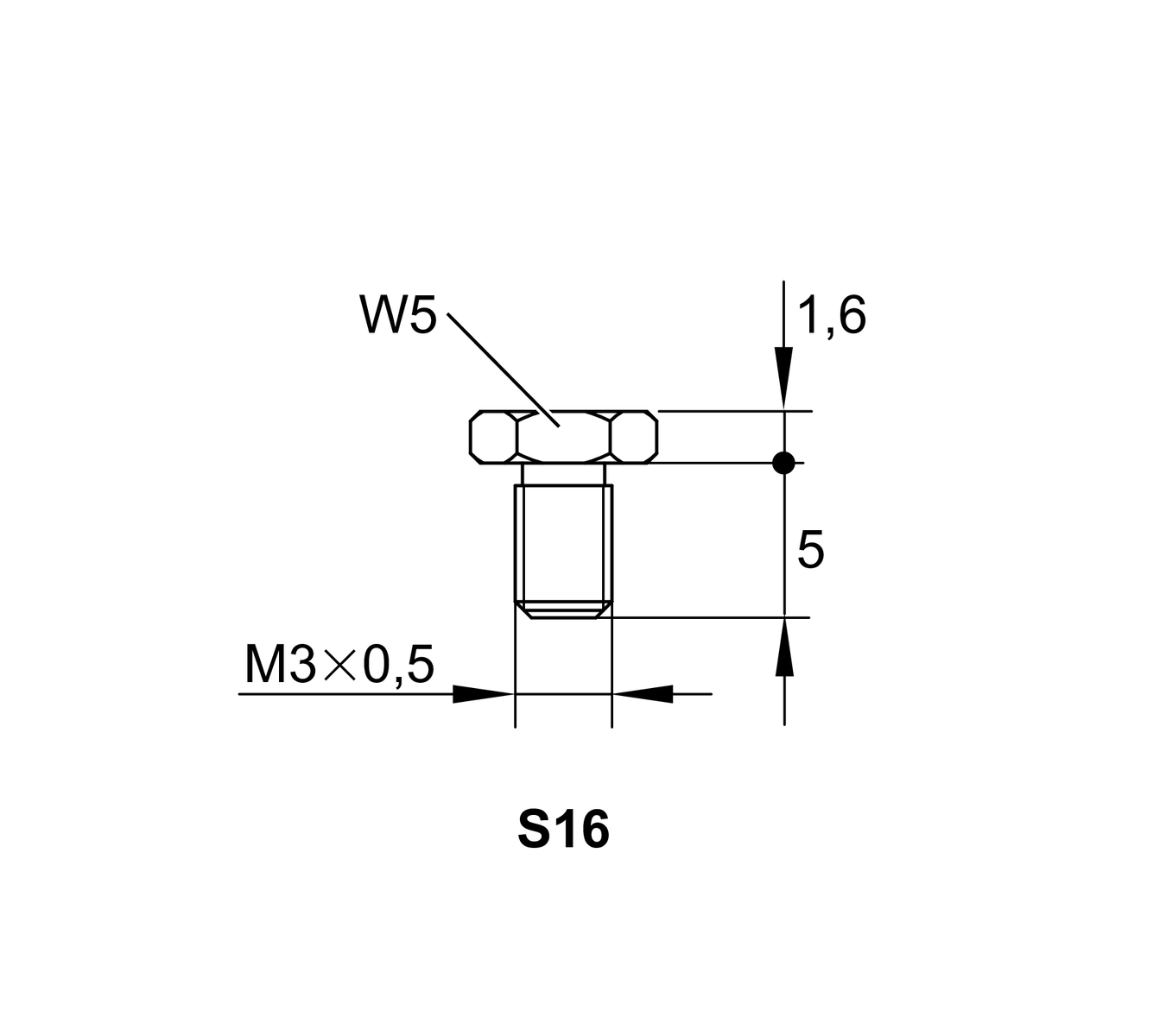

| A3 | 4.3 mm | |
| G3 | M3 | |
| t G3 | 5.5 mm | 5 |

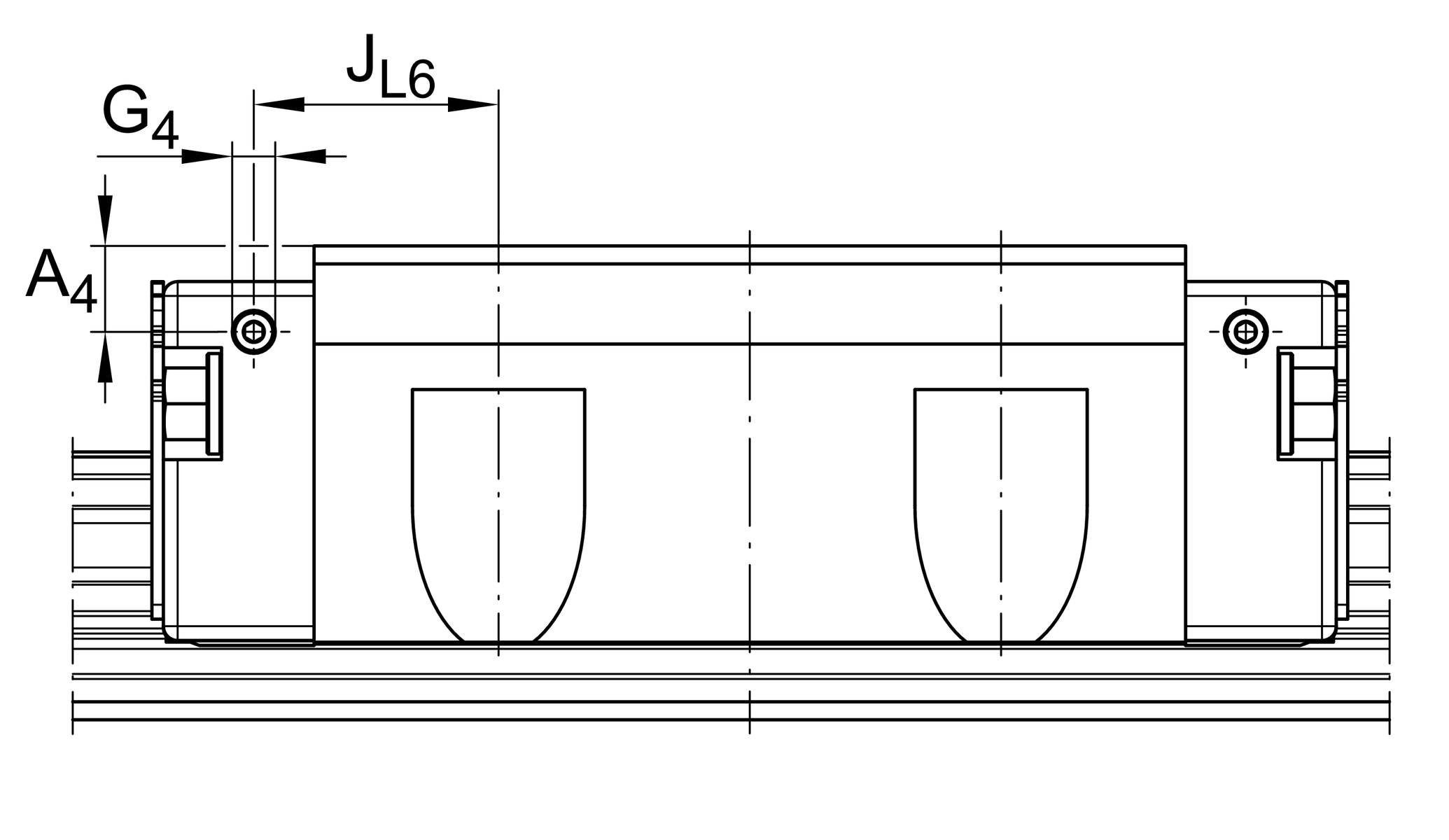

| A4 | 3.2 mm | |
| G4 | M3 | |
| t G4 | 5.5 mm | 5 |
| JL6 | 11.1 mm |
Related products
KWVE15-B-E | Carriage | |
TKVD15-B | suitable Guide Rail |
Your current product variant
| Size code | 15 | |
| Carriage design | E | Expanded design (carriage without screw threads) |
| Version | B |
