Main Dimensions & Performance Data
| d | 65 mm | Shaft diameter |
| a | 290 mm | Length base |
| h1 | 183 mm | Height |
| g2 | 480 mm | Total width with cover |
| ≈m | 61 kg | Weight |

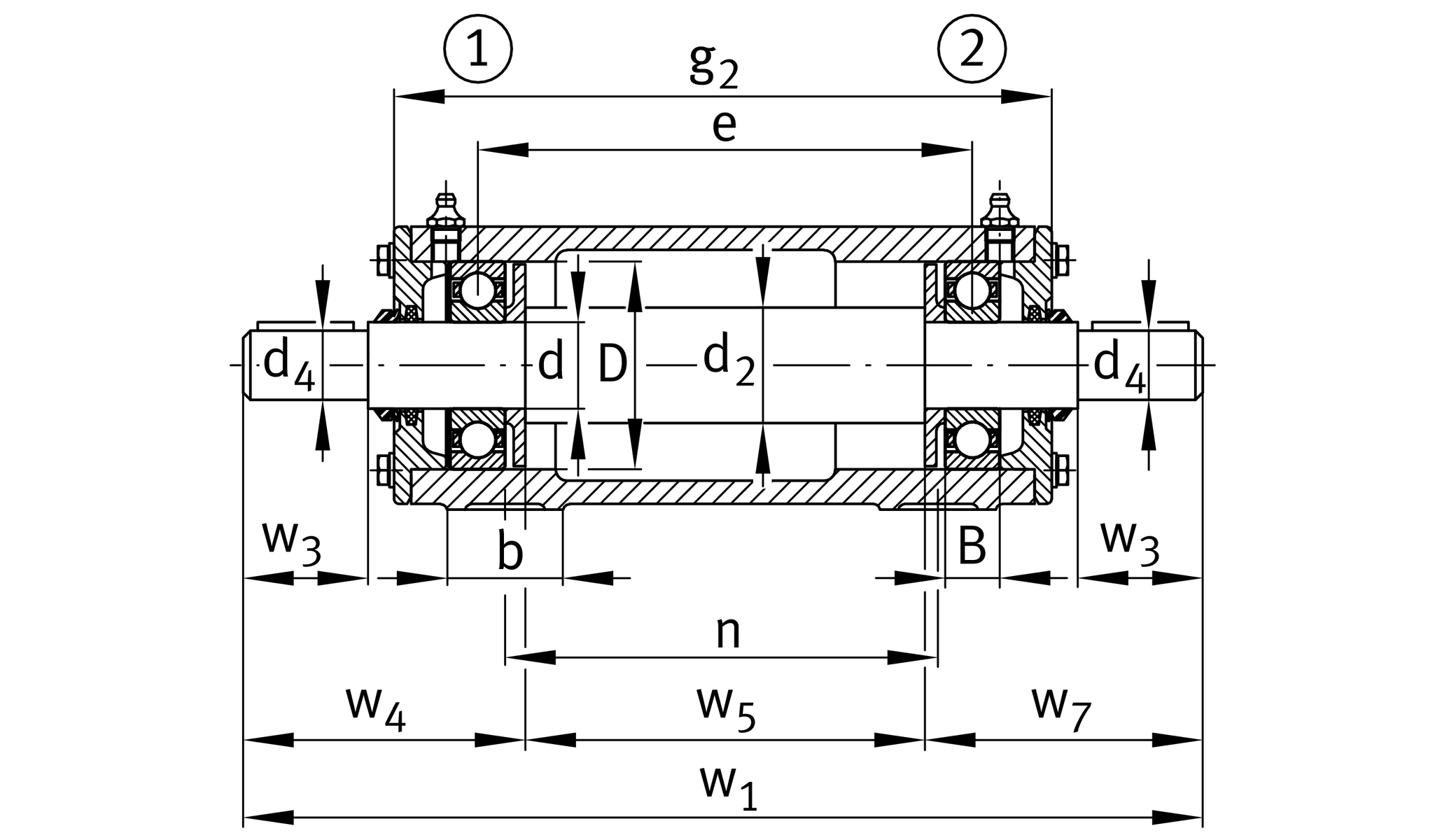

Dimensions
| B | 33 mm | width |
| b | 70 mm | width base |
| c | 25 mm | heigth base |
| D | 140 mm | outside diameter bearing |
| d2 | 75 mm | shaft diameter shoulder |
| d4 | 55 mm | Shaft dieameter outside |
| e | 402.5 mm | locking collar width |
| h | 95 mm | center heigth |
| m | 230 mm | distance fixing bore |
| n | 360 mm | bore distance width |
| s | M16 | size of fixing screws |
| w1 | 724 mm | length shaft total |
| w3 | 110 mm | length shaft tap |
| w4 | 189 mm | lenght shaft end |
| w5 | 347.5 mm | length shaft shoulder |
| w7 | 187.5 mm | Lenght shaft end |
Additional information
6313-C3 | bearing designation | |
6313-C3 | reference bearing designation | |
VR313-F | housing |
