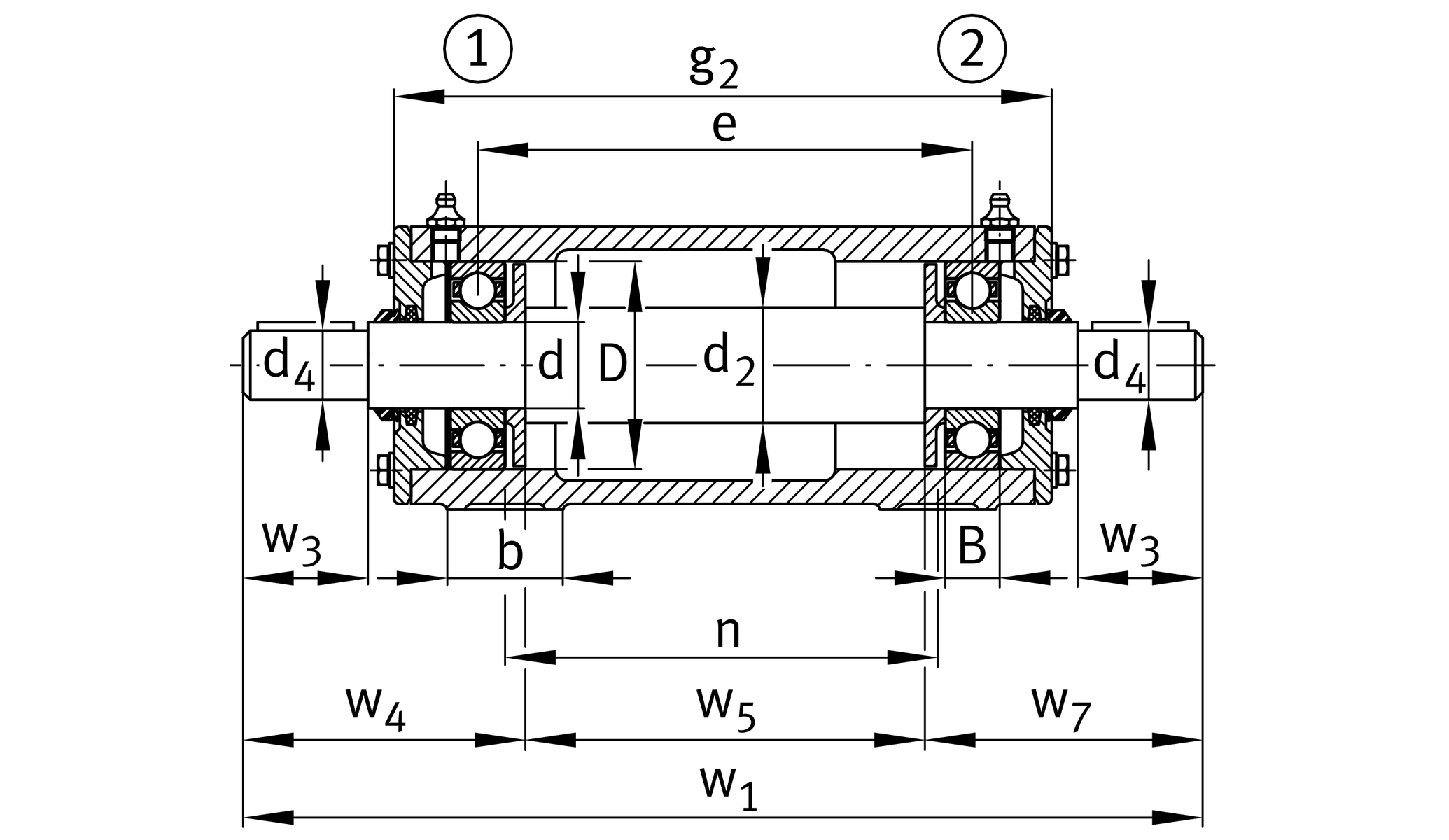

d | 50 mm | Shaft diameter |
a | 210 mm | Length base |
h1 | 138 mm | Height |
g2 | 381 mm | Total width with cover |
≈m | 30.3 kg | Weight |
B | 27 mm | width |
b | 60 mm | width base |
c | 25 mm | heigth base |
D | 110 mm | outside diameter bearing |
d2 | 60 mm | shaft diameter shoulder |
d4 | 42 mm | Shaft dieameter outside |
e | 312 mm | locking collar width |
h | 70 mm | center heigth |
m | 170 mm | distance fixing bore |
n | 275 mm | bore distance width |
s | M12 | size of fixing screws |
w1 | 625 mm | length shaft total |
w3 | 110 mm | length shaft tap |
w4 | 180.5 mm | lenght shaft end |
w5 | 265 mm | length shaft shoulder |
w7 | 179.5 mm | Lenght shaft end |
6310-C3 | bearing designation | |
6310-C3 | reference bearing designation | |
VR310-F | housing |
