Main Dimensions & Performance Data
| d | 45 mm | Shaft diameter |
| a | 210 mm | Length base |
| h1 | 135 mm | Height |
| g2 | 343 mm | Total width with cover |
| ≈m | 24.2 kg | Weight |

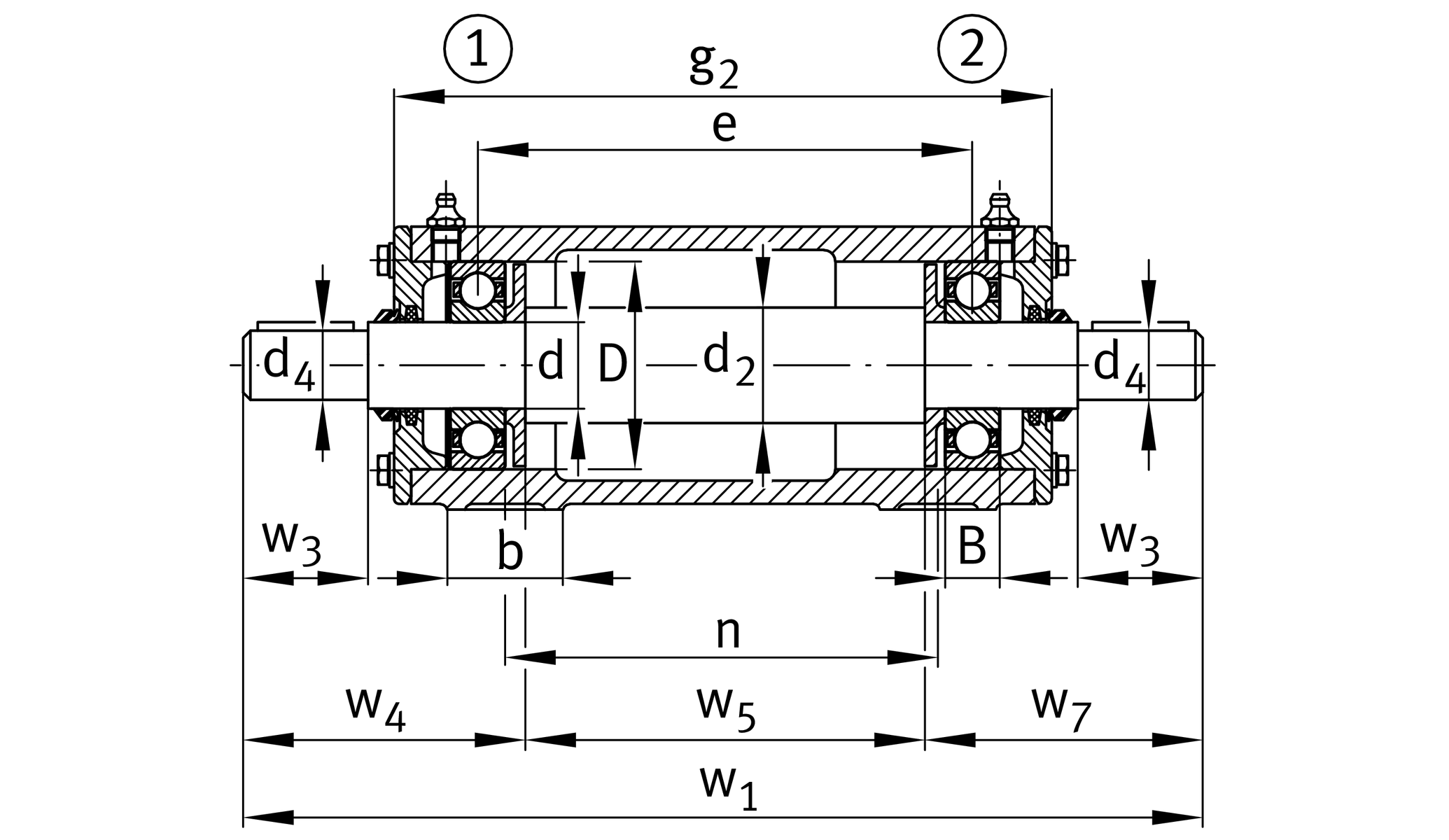

Dimensions
| B | 25 mm | width |
| b | 52 mm | width base |
| c | 22 mm | heigth base |
| D | 100 mm | outside diameter bearing |
| d2 | 55 mm | shaft diameter shoulder |
| d4 | 38 mm | Shaft dieameter outside |
| e | 280 mm | locking collar width |
| h | 70 mm | center heigth |
| m | 170 mm | distance fixing bore |
| n | 250 mm | bore distance width |
| s | M12 | size of fixing screws |
| w1 | 527 mm | length shaft total |
| w3 | 80 mm | length shaft tap |
| w4 | 146.5 mm | lenght shaft end |
| w5 | 235 mm | length shaft shoulder |
| w7 | 145.5 mm | Lenght shaft end |
Additional information
6309-C3 | bearing designation | |
6309-C3 | reference bearing designation | |
VR309-F | housing |
