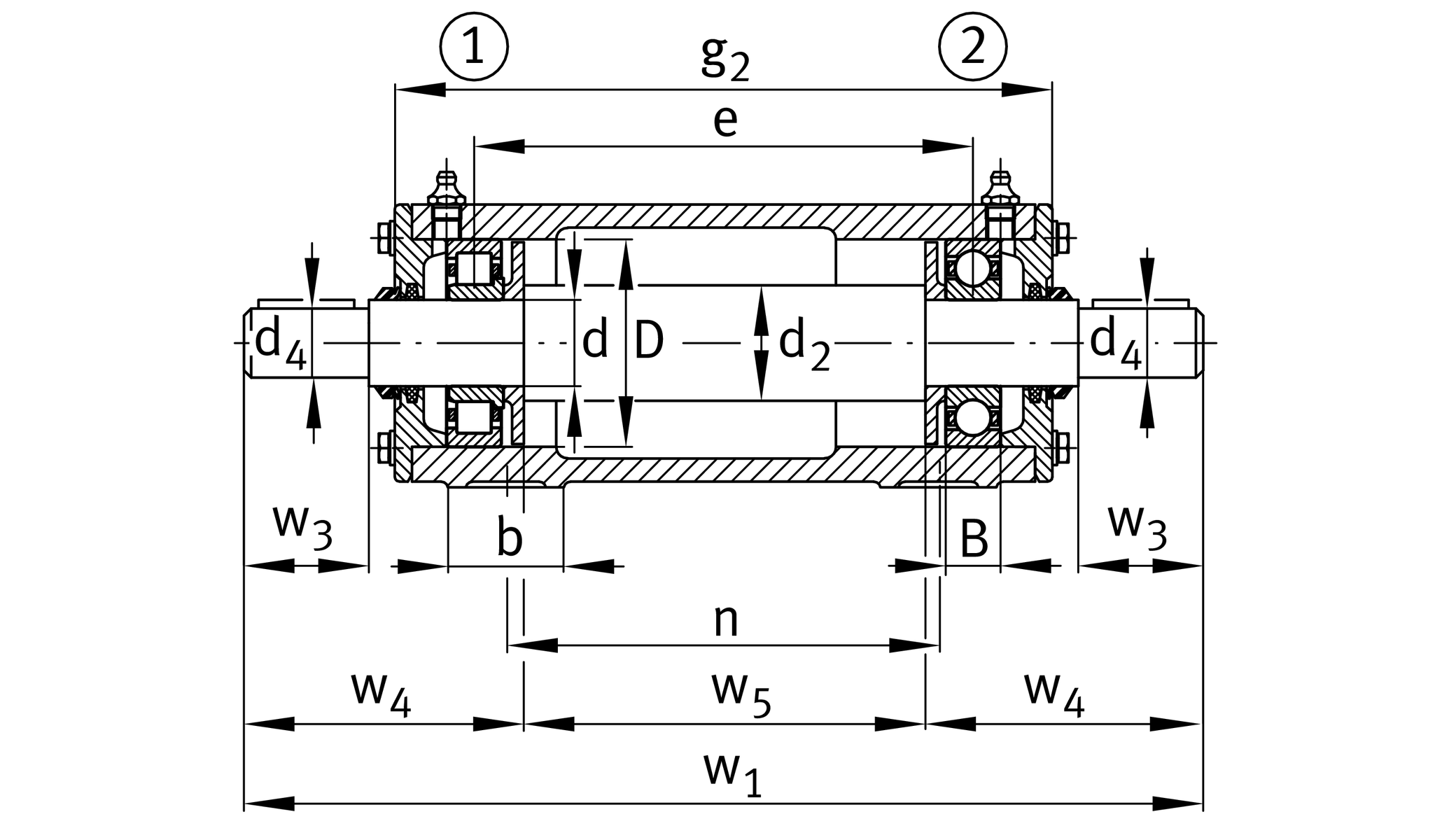

Main Dimensions & Performance Data
| d | 30 mm | Shaft diameter |
| a | 160 mm | Length base |
| h1 | 98 mm | Height |
| g2 | 225 mm | Total width with cover |
| ≈m | 8.9 kg | Weight |
Dimensions
| B | 19 mm | width |
| b | 40 mm | width base |
| c | 18 mm | heigth base |
| D | 72 mm | outside diameter bearing |
| d2 | 40 mm | shaft diameter shoulder |
| d4 | 24 mm | Shaft dieameter outside |
| e | 174 mm | locking collar width |
| h | 50 mm | center heigth |
| m | 130 mm | distance fixing bore |
| n | 150 mm | bore distance width |
| s | M12 | size of fixing screws |
| w1 | 345 mm | length shaft total |
| w3 | 50 mm | length shaft tap |
| w4 | 102.5 mm | lenght shaft end |
| w5 | 140 mm | length shaft shoulder |
Additional information
NJ306-E-TVP2 | bearing designation | |
6306-C3 | reference bearing designation | |
VR306-A | housing |
