Main Dimensions & Performance Data
| d | 460 mm | Bore diameter |
0 mm | Bore diameter upper tolerance | |
-0.023 mm | Bore diameter lower tolerance | |
| D | 600 mm | Flange diameter |
0 mm | Flange diameter upper tolerance | |
-0.028 mm | Flange diameter lower tolerance | |
| H | 70 mm | Height |
| nG | 1,400 1/min | Limiting speed |
| Ca | 255,000 N | Basic dynamic load rating, axial |
| C0a | 1,860,000 N | Basic static load rating, axial |
| Cua | 37,000 N | Fatigue load limit, axial |
| ≈m | 46.2 kg | Weight |

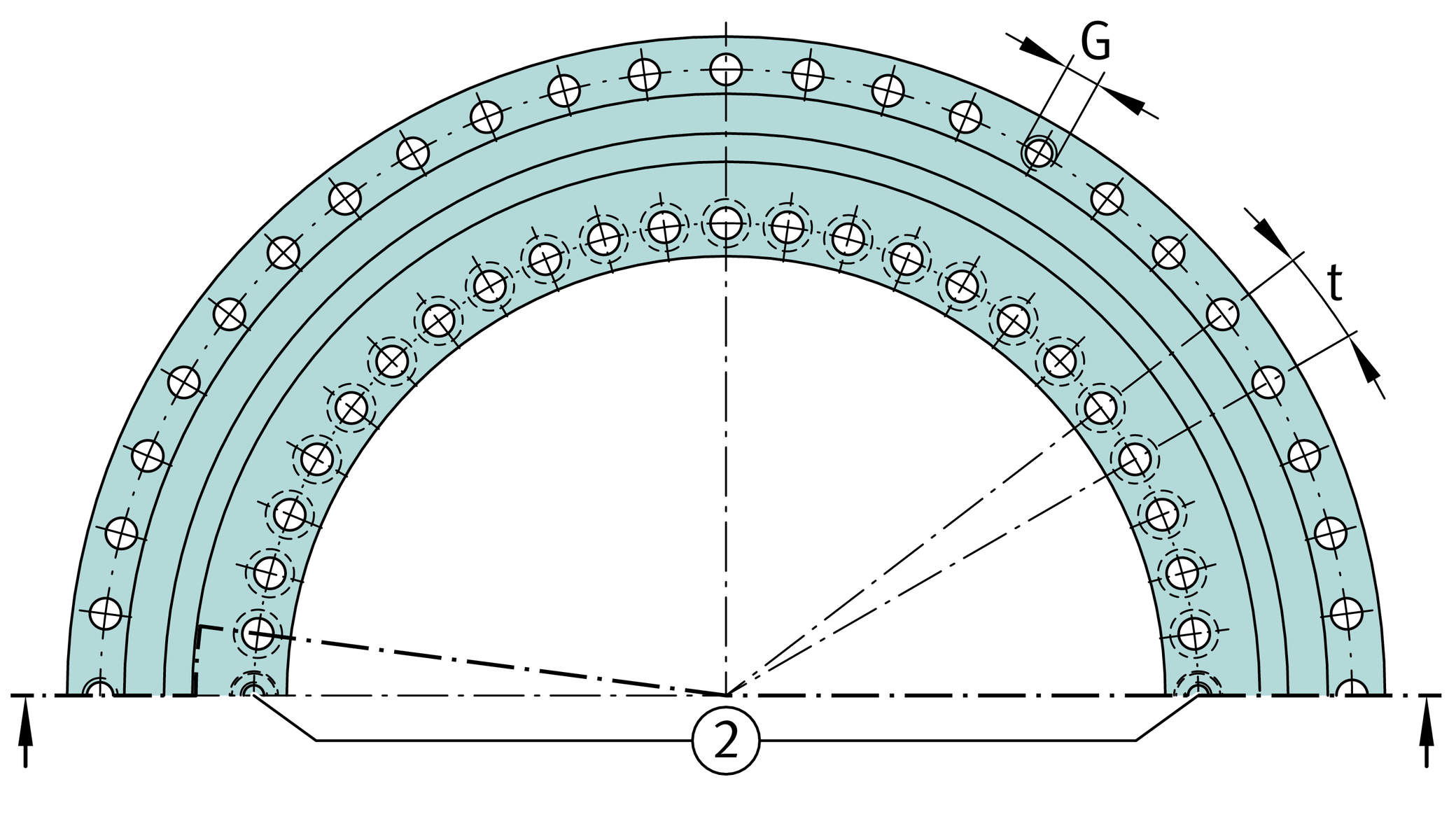

Mounting dimensions
| J | 482 mm | Pitch circle diameter fixing holes in inner ring |
| J1 | 580 mm | Pitch circle diameter fixing holes in outer ring |
| d1 | 9.3 mm | Fixing holes diameter inner ring |
| d2 | 15 mm | Counterbore diameter of fixing holes |
| a | 8.2 mm | Counterbore depth of fixing holes |
46 | Quantity of fixing holes inner ring | |
| d3 | 9.3 mm | Fixing holes diameter outer ring |
45 | Quantity of fixing holes outer ring | |
| n | 48 | Pitch quantity |
| t | 7.5 ° | Pitch separation angle |
| G | M12 | Threaded extraction hole |
3 | Quantity of threaded extraction hole | |
| MA | 34 Nm | Screw tightening torque |
2 | Quantity of retaining screws |

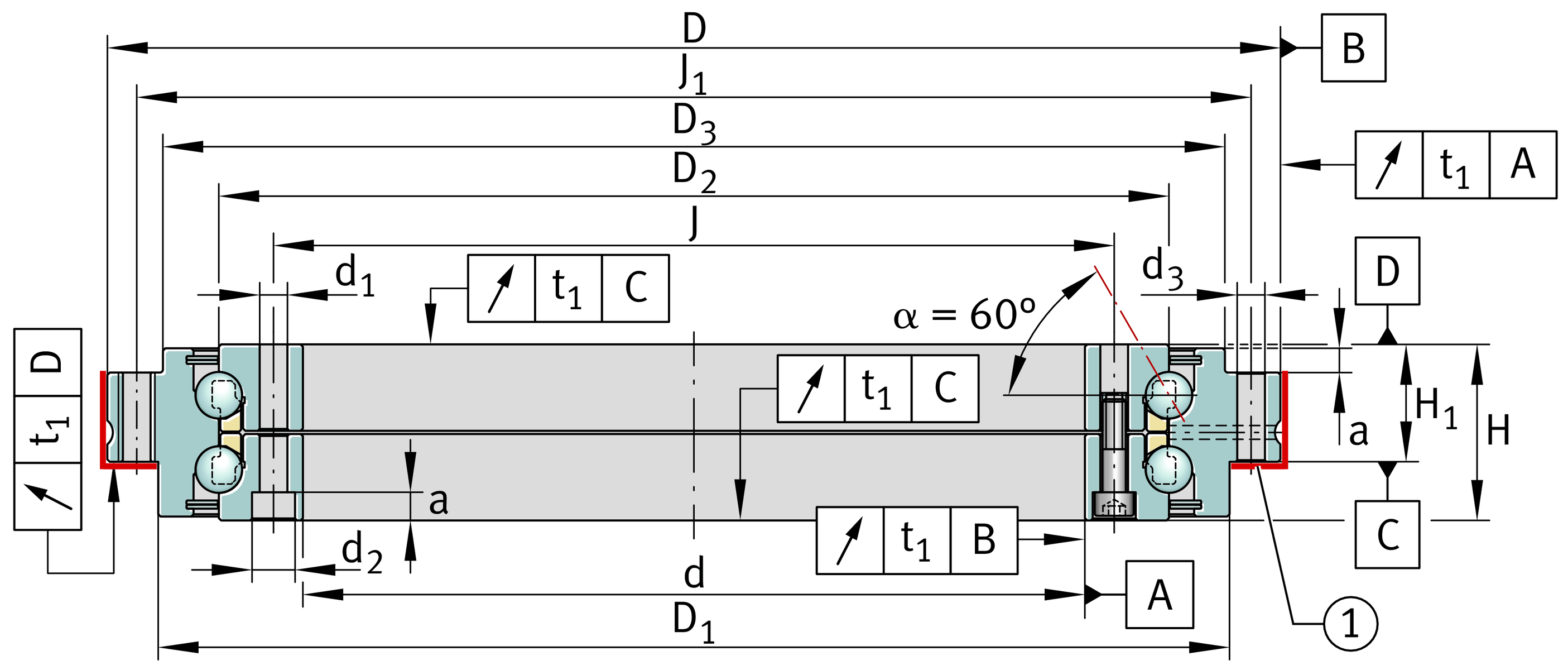

Dimensions
| H1 | 46 mm | Height contact face outer ring |
0.225 mm | Height contact face outerring H1 upper tolerance | |
-0.225 mm | Height contact face outerring H1 lower tolerance | |
| D1 | 560 mm | Outside diameter D1 |
| D2 | 520 mm | Rib diameter inner ring |
| D3 | 563 mm | Outside diameter D3 |
| t1 | 6 µm | Axial and radial runout, measurement standard; Measured on mounted bearing, with ideal adjacent construction. |
Temperature range
| Tmin | -30 °C | Operating temperature min. |
| Tmax | 120 °C | Operating temperature max. |
Additional information
| caL | 5,300 N/µm | Axial rigidity of bearing position |
| crL | 1,100 N/µm | Radial rigidity of bearing position |
| ckL | 175,000 Nm/mrad | Tilting rigidity of bearing position |
| caL | 7,100 N/µm | Axial rigidity of rolling element set |
| crL | 1,100 N/µm | Radial rigidity of rolling element set |
| ckL | 223,000 Nm/mrad | Tilting rigidity of rolling element set |
Your current product variant
| Generation | B |
