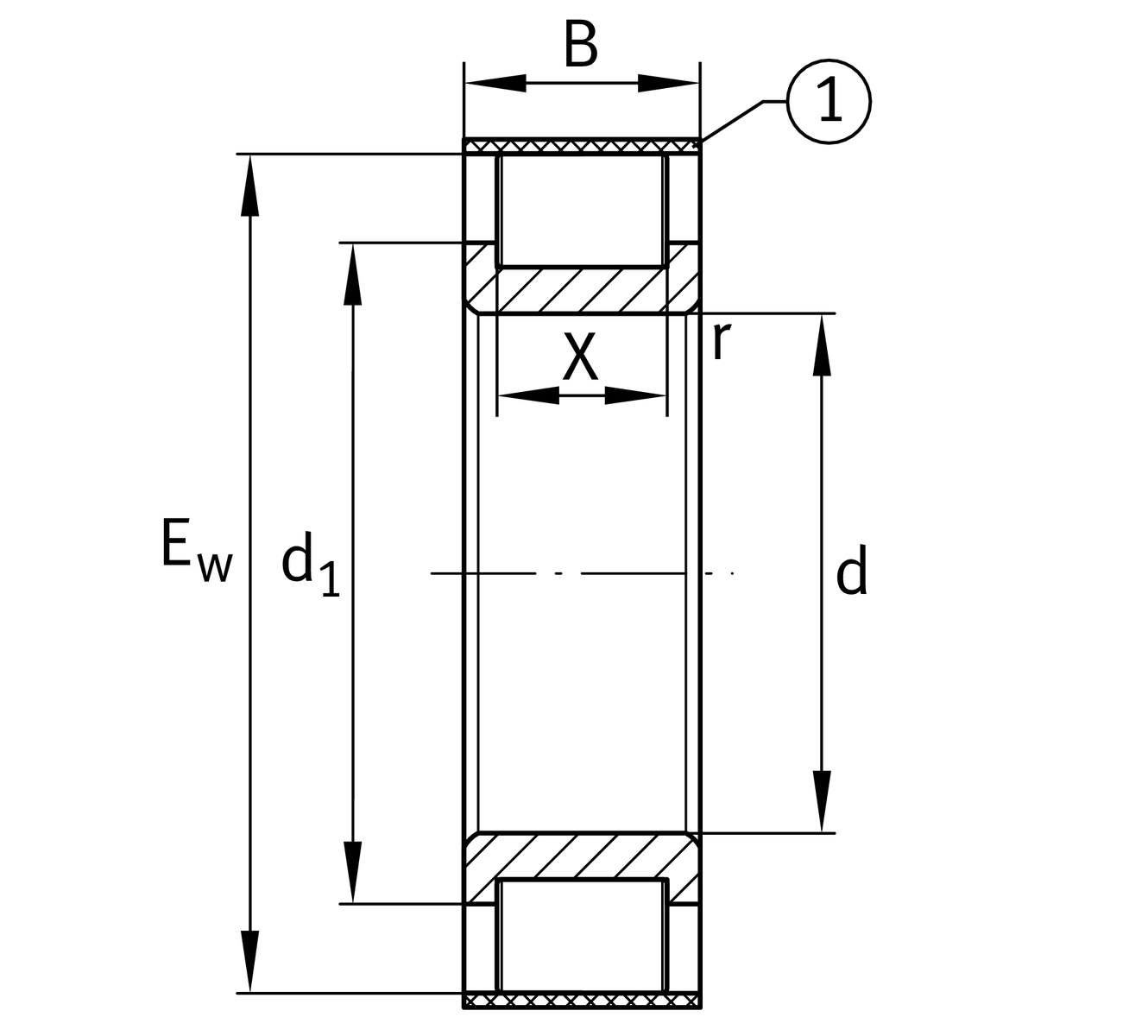

Main Dimensions & Performance Data
| d | 65 mm | Bore diameter |
| Ew | 106.25 mm | Outer envelope circle |
| B | 31 mm | Width |
| Cr | 198,000 N | Basic dynamic load rating, radial |
| C0r | 210,000 N | Basic static load rating, radial |
| Cur | 39,500 N | Fatigue load limit, radial |
| nG | 3,650 1/min | Limiting speed |
| ≈m | 0.95 kg | Weight |
Mounting dimensions
| da min | 82.3 mm | Minimum diameter shaft shoulder |
| X | 22 mm | raceway width |
Dimensions
| rmin | 1.5 mm | Minimum chamfer dimension |
| d1 | 82.3 mm | Maximum rib diameter inner ring |
| TK | 91.25 mm | pitch circle |
| RV | 4,00 | edge radius |
Temperature range
| Tmin | -30 °C | Operating temperature min. |
| Tmax | 120 °C | Operating temperature max. |
Your current product variant
| Design variant | RV | with edge radius |
| Number of rolling element rows | 1 | Single-row design |
