Main Dimensions & Performance Data
| d | 340 mm | Bore diameter |
| T | 64 mm | Height |
| Ca | 1,130,000 N | Basic dynamic load rating, axial |
| C0a | 5,000,000 N | Basic static load rating, axial |
| Cua | 410,000 N | Fatigue load limit, axial |
| nG | 760 1/min | Limiting speed |
| nϑr | 265 1/min | Reference speed |
| D | 420 mm | Outside diameter |
| ≈m | 22.45 kg | Weight |

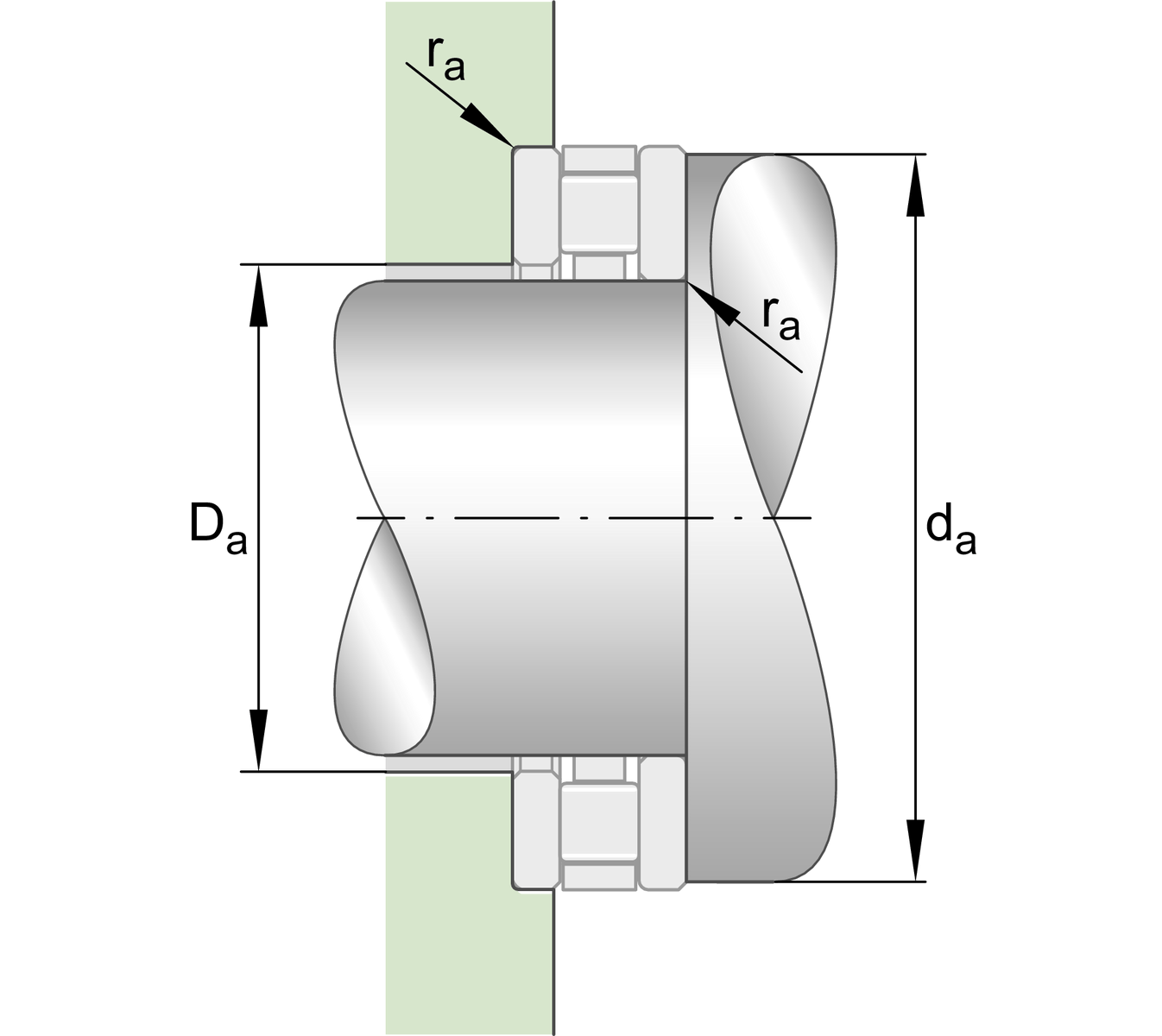

Mounting dimensions
| da min | 414 mm | Minimum diameter shaft shoulder |
| Da max | 354 mm | Maximum diameter of housing shoulder |
| ra max | 2 mm | Maximum recess radius |
Dimensions
| D1 | 344 mm | Bore diameter housing washer |
| d1 | 416 mm | Rip diameter shaft washer |
| rmin | 2 mm | Minimum chamfer dimension |
Temperature range
| Tmin | -30 °C | Operating temperature min. |
| Tmax | 120 °C | Operating temperature max. |
Additional information
K81168-M | Axial roller and cage assembly | |
GS81168 | Housing Washer | |
WS81168 | Shaft washer |
Your current product variant
| Cage | M | Brass Cage |
