Spherical Roller Bearing WS22205-E1-XL-K-2RSR
Add item
Main Dimensions & Performance Data
d
25 mm
Bore diameter
D
52 mm
Outside diameter
B
23 mm
Width
Cr
48,500 N
Basic dynamic load rating, radial
C0r
42,500 N
Basic static load rating, radial
Cur
4,900 N
Fatigue load limit, radial
nG
3,600 1/min
Limiting speed
≈m
0.235 kg
Weight

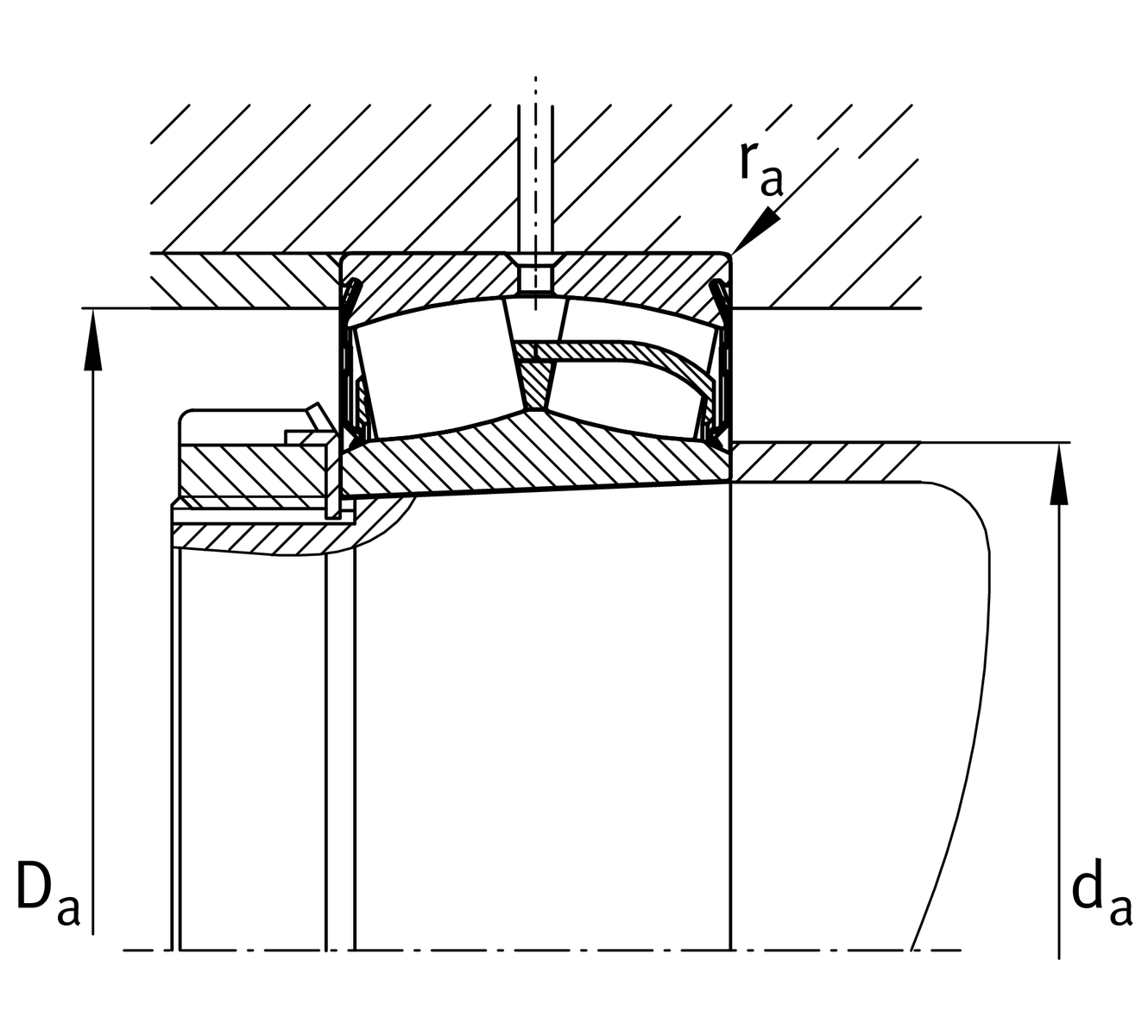

Mounting dimensions
da min
29.8 mm
Minimum diameter shaft shoulder
da max
29.8 mm
Maximum diameter of shaft shoulder
Da max
46.4 mm
Maximum diameter of housing shoulder
ra max
1 mm
Maximum recess radius
db min
28 mm
Minimum cavity diameter of the sleeve
Ba min
5 mm
Minimum cavity width of the sleeve

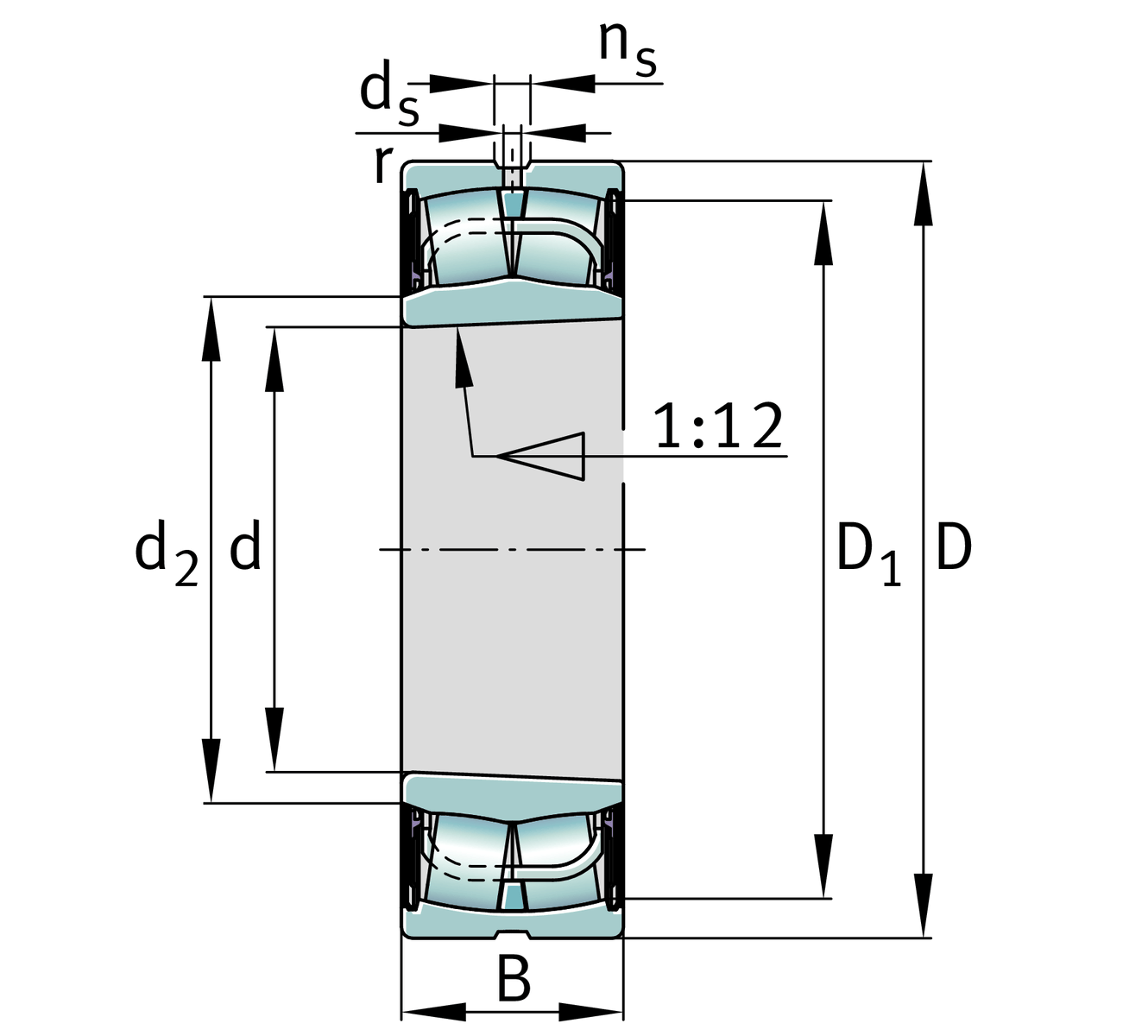

Dimensions
rmin
1 mm
Minimum chamfer dimension
D1
46.1 mm
Bore diameter outer ring
d2
29.8 mm
Raceway diameter of the inner ring
ds
3.2 mm
Diameter lubrication hole
ns
4.8 mm
Width of lubricating groove

Temperature range
Tmin
-30 °C
Operating temperature min.
Tmax
100 °C
Operating temperature max.

Calculation factors
e
0.33
Limiting value of Fa/Fr for the applicability of diff. Values of factors X and Y
Y1
2.07
Dynamic axial load factor
Y2
3.09
Dynamic axial load factor
Y0
2.03
Static axial load factor

Additional information
H2205-T-WS
Adapter sleeve
AH2205-WS
Withdrawal sleeve

Your current product variant
DesignE1without central rip
Bore typeKTapered, taper 1:12
CageJPASheet metal cage
Radial internal clearanceCN (Group N)Normal internal clearance
Relubrication featureStandard
Sealing2RSRSeals on both sides, normal temperature
Sealing - excess widthWSSealing - excess width
