Main Dimensions & Performance Data
| d | M8X0,75 | Thread |
| D | 16 mm | Outside diameter |
| h | 8 mm | Height |
| MA | 1 Nm | Mounting torque set screw |
| FaB | 23,000 N | Breaking load, axial |
| ML | 25 Nm | Breakawag |
| MAL | 4 Nm | Mounting torque reference |
| MM | 0.004 kg*cm2 | Mass moment of inertia |
| ≈m | 7.346 g | Weight |

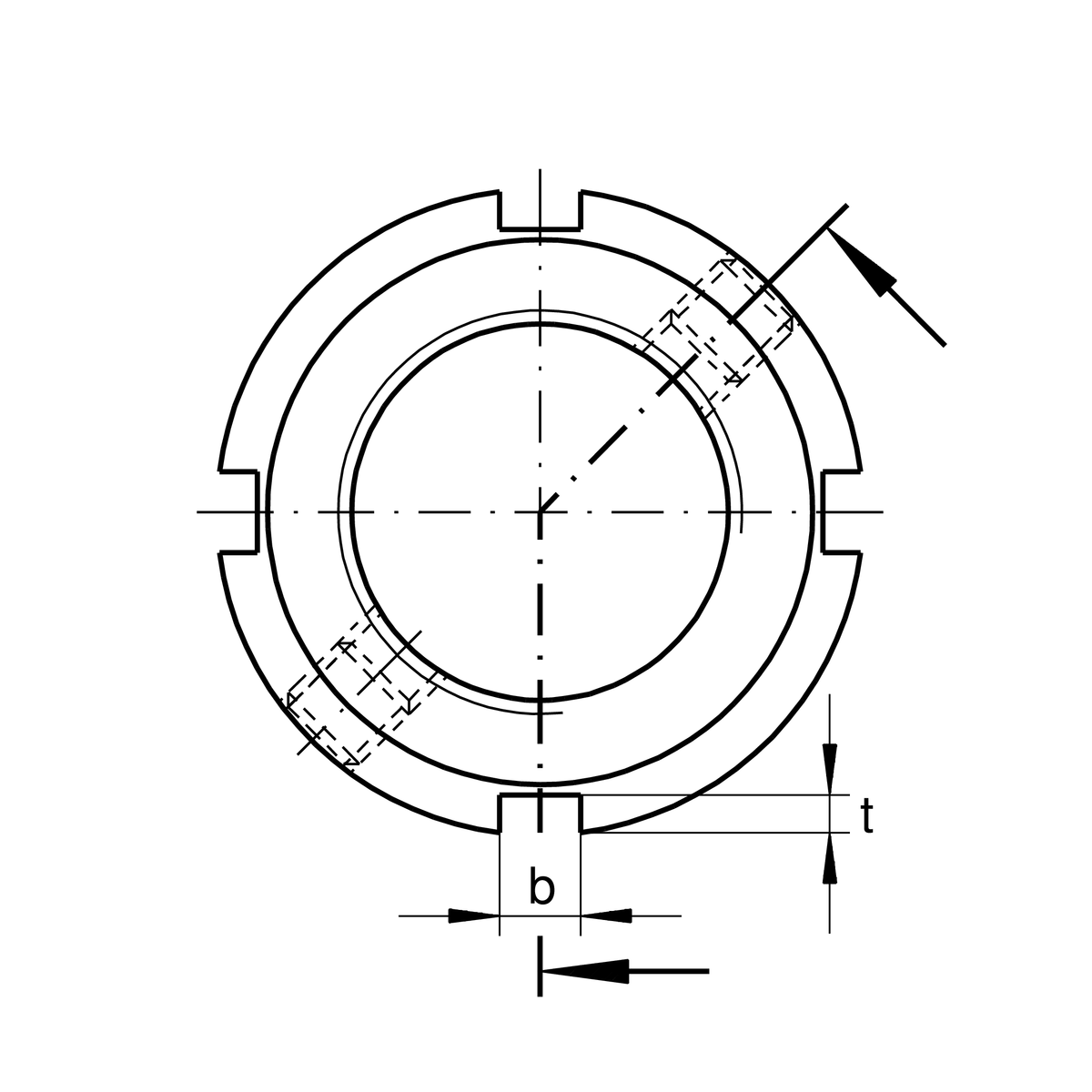

Dimensions
| d1 | 11 mm | Plant diameter outside |
| t | 2 mm | Hight retaining slot |
| b | 3 mm | Width retaining slot |
| c | 4 mm | Distance bore |
| m | M4 | Threaded - threaded pin |
