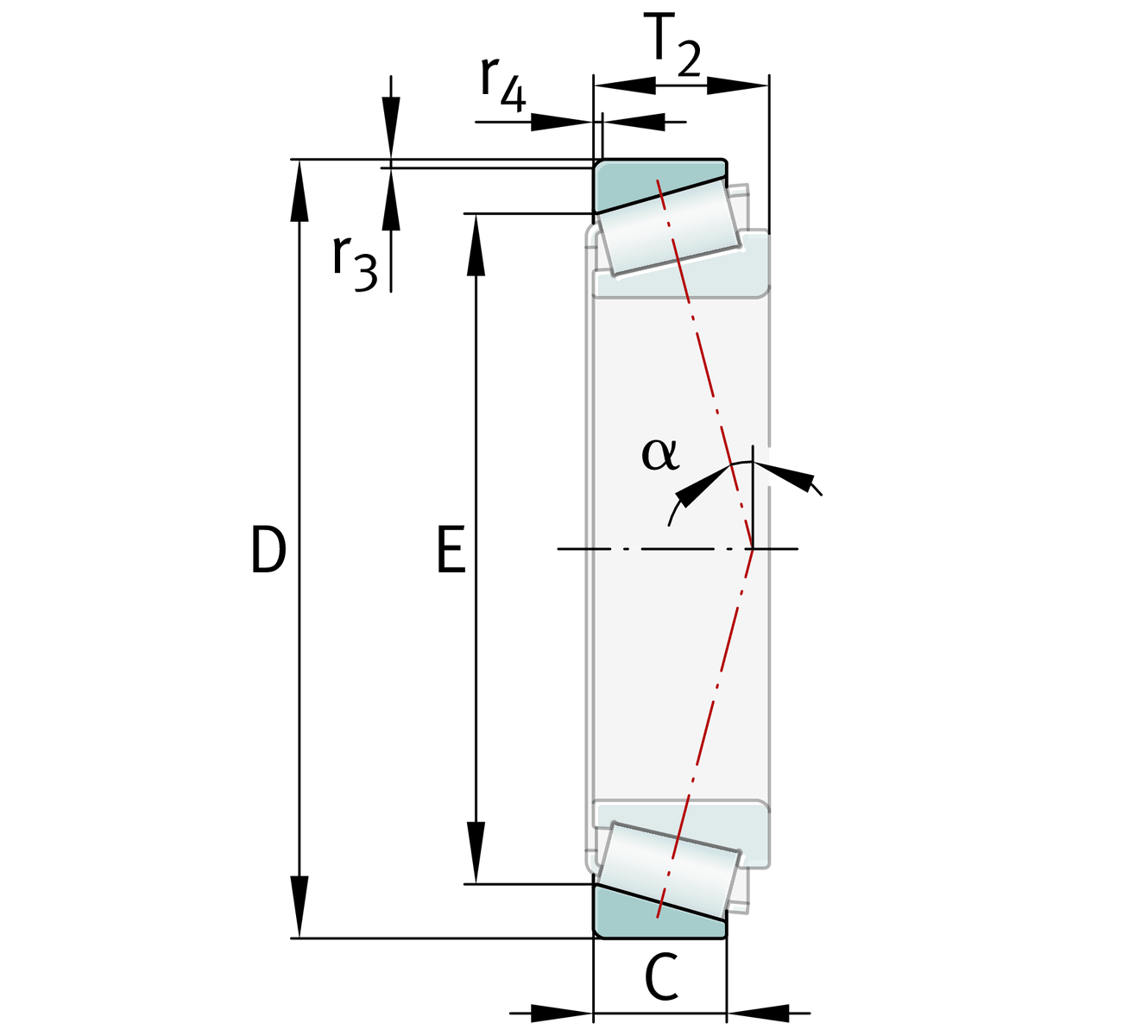

Main Dimensions & Performance Data
| D | 50.292 mm | Outside diameter |
| C | 10.668 mm | Width, outer ring |
| ≈m | 0.393 kg | Weight |
Dimensions
| r3, 4 min | 1.3 mm | Minimum chamfer dimension of outer ring back face |

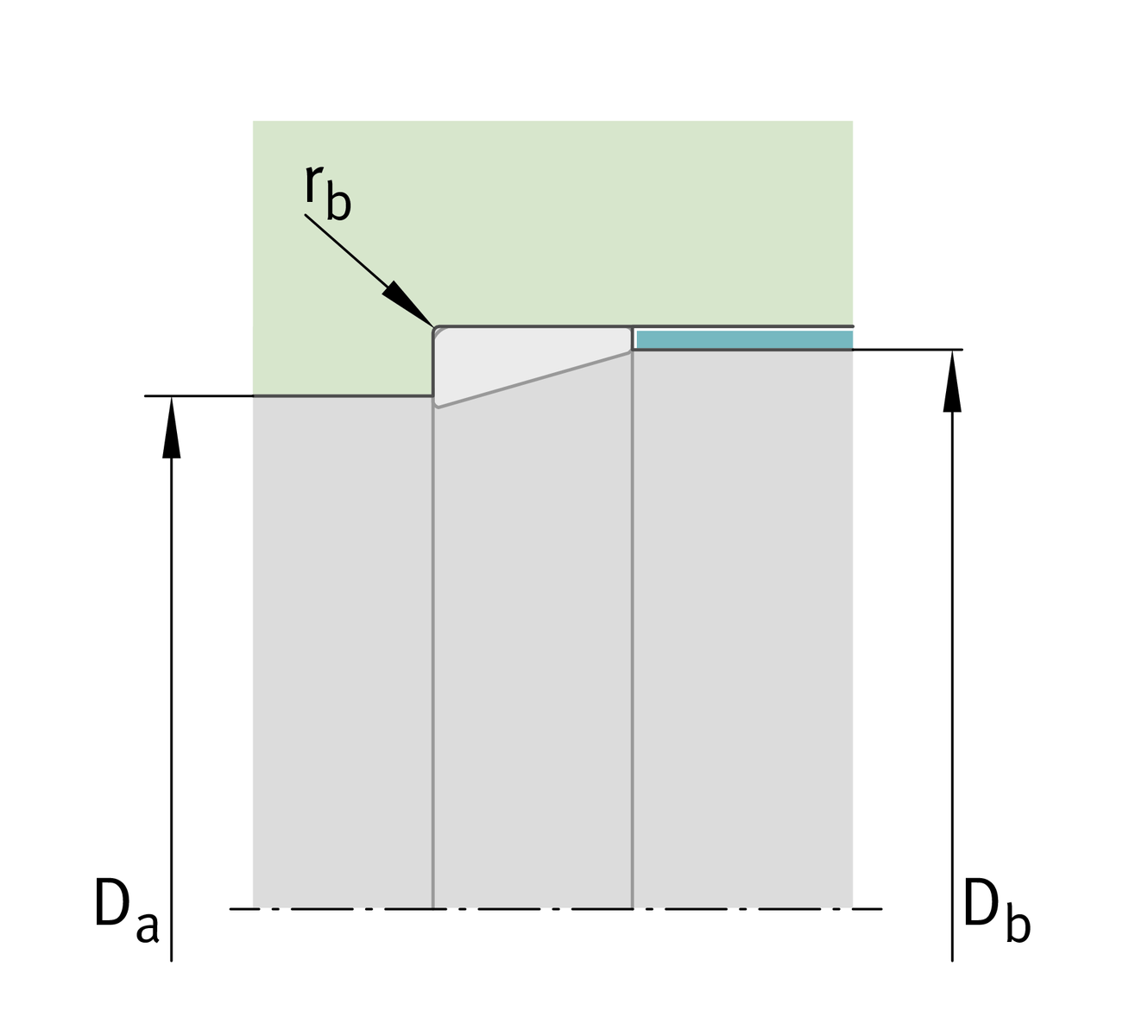

| Da min | 44.5 mm | Minimum diameter of housing shoulder |
| Db min | 47 mm | Minimum diameter of housing shoulder |
| rb max | 1.3 mm | Maximum fillet radius of housing |
| T2 | 14.224 mm | Width, total of outer ring assembled with a master inner subunit |
| E | 41.187 mm | Inside diameter of outer ring back face |
| α | 14 ° | Contact angle |
Temperature range
| Tmin | -30 °C | Operating temperature min. |
| Tmax | 120 °C | Operating temperature max. |
Additional information
KL44649-D | Master inner subunit |
Your current product variant
| Tolerance class | ABMA4 | Class 4 (ANSI/ABMA 19.2:2013) |
| Heat treatment | Standard | |
| Internal design | Standard | |
| Quality level | Standard | |
| Number of rolling element rows | 1 | Single-row design |
