Main Dimensions & Performance Data
| d | 240 mm | Bore diameter |
| D | 400 mm | Outside diameter |
| B | 128 mm | Width |
| Cr | 2,130,000 N | Basic dynamic load rating, radial |
| C0r | 3,150,000 N | Basic static load rating, radial |
| Cur | 255,000 N | Fatigue load limit, radial |
| nG | 1,700 1/min | Limiting speed |
| nϑr | 970 1/min | Reference speed |
| ≈m | 62.245 kg | Weight |
Mounting dimensions
| da min | 257 mm | Minimum diameter shaft shoulder |
| Da max | 383 mm | Maximum diameter of housing shoulder |
| ra max | 3 mm | Maximum recess radius |

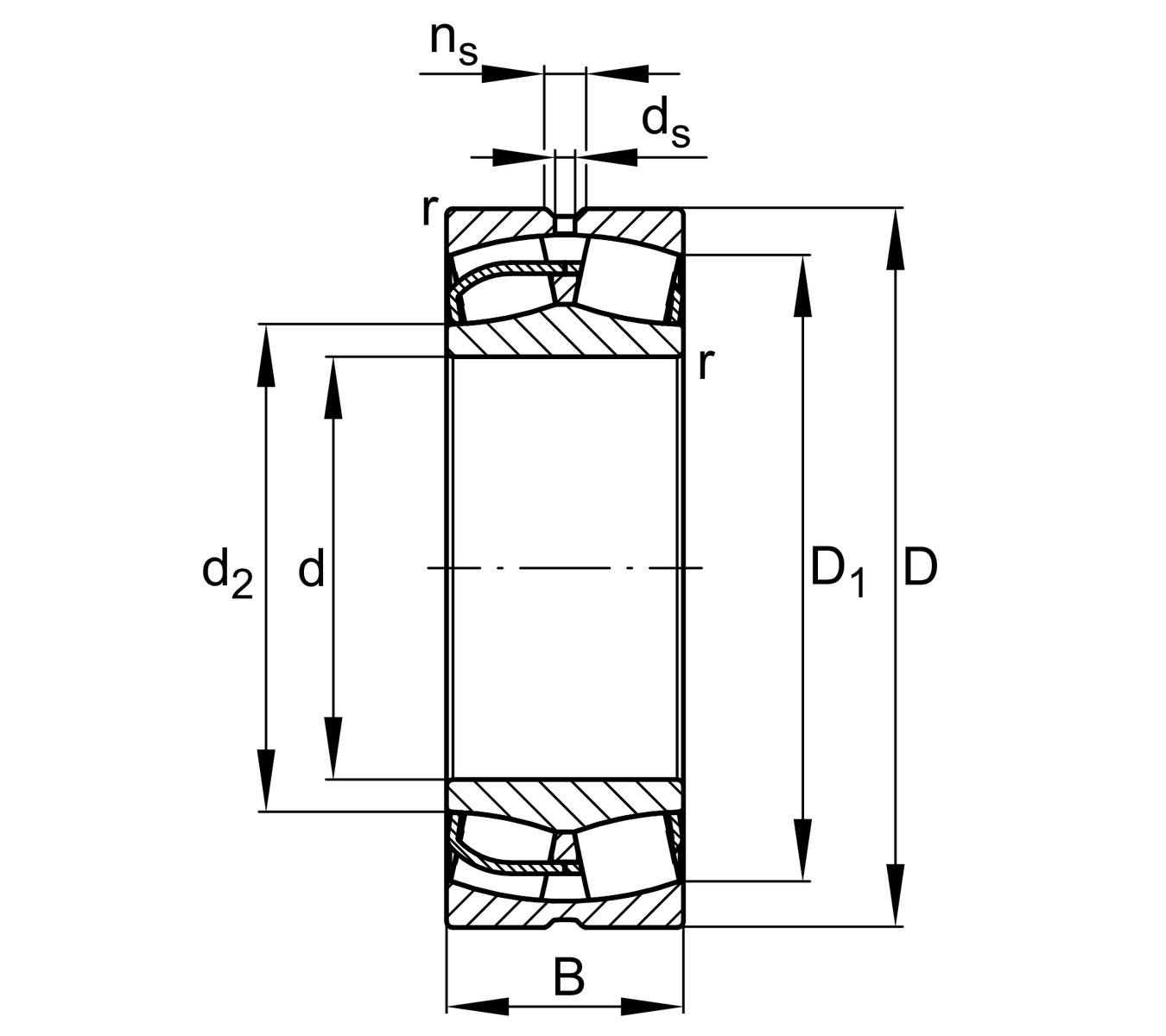

Dimensions
| rmin | 4 mm | Minimum chamfer dimension |
| D1 | 349.9 mm | Bore diameter outer ring |
| d2 | 275.9 mm | Raceway diameter of the inner ring |
| ds | 9.5 mm | Diameter lubrication hole |
| ns | 17.7 mm | Width of lubricating groove |
Temperature range
| Tmin | -30 °C | Operating temperature min. |
| Tmax | 200 °C | Operating temperature max. |
Calculation factors
| e | 0.31 | Limiting value of Fa/Fr for the applicability of diff. Values of factors X and Y |
| Y1 | 2.18 | Dynamic axial load factor |
| Y2 | 3.24 | Dynamic axial load factor |
| Y0 | 2.13 | Static axial load factor |
Your current product variant
| Design | BE | with lose center lip ring |
| Bore type | Z | Cylindrical |
| Cage | JPB | Sheet metal cage |
| Radial internal clearance | C3 (Group 3) | Internal clearance larger than CN |
| Relubrication feature | Standard |
