Main Dimensions & Performance Data
| d | 70 mm | Bore diameter |
| L | 260 mm | Length total |
| H2 | 156 mm | Height |
| ≈m | 5.87 kg | Weight |

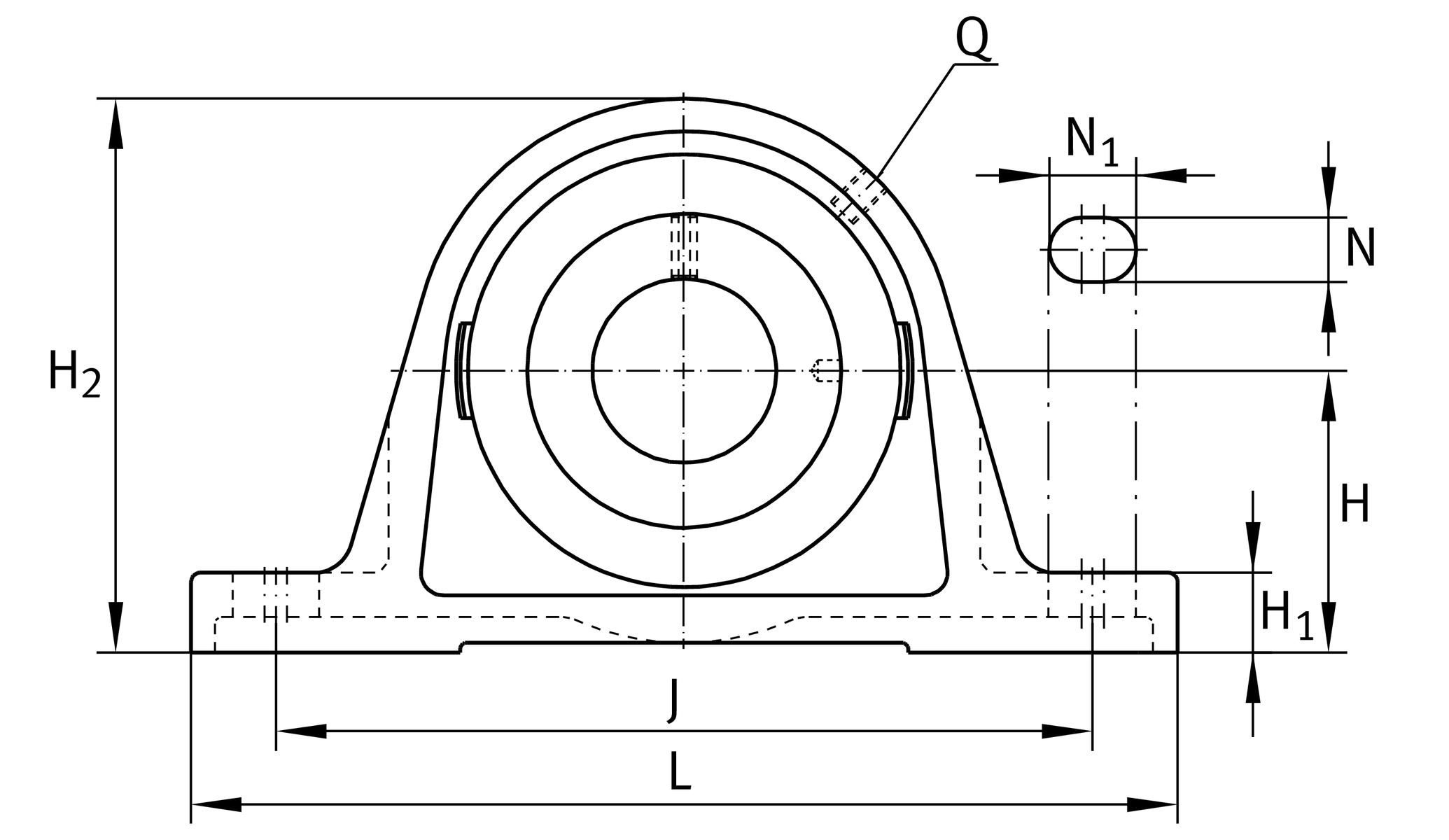

Mounting dimensions
| J | 202.5 mm | Distance fixing bore |
| N | 22 mm | Width (slot) |
| N1 | 28 mm | Length (slot) |

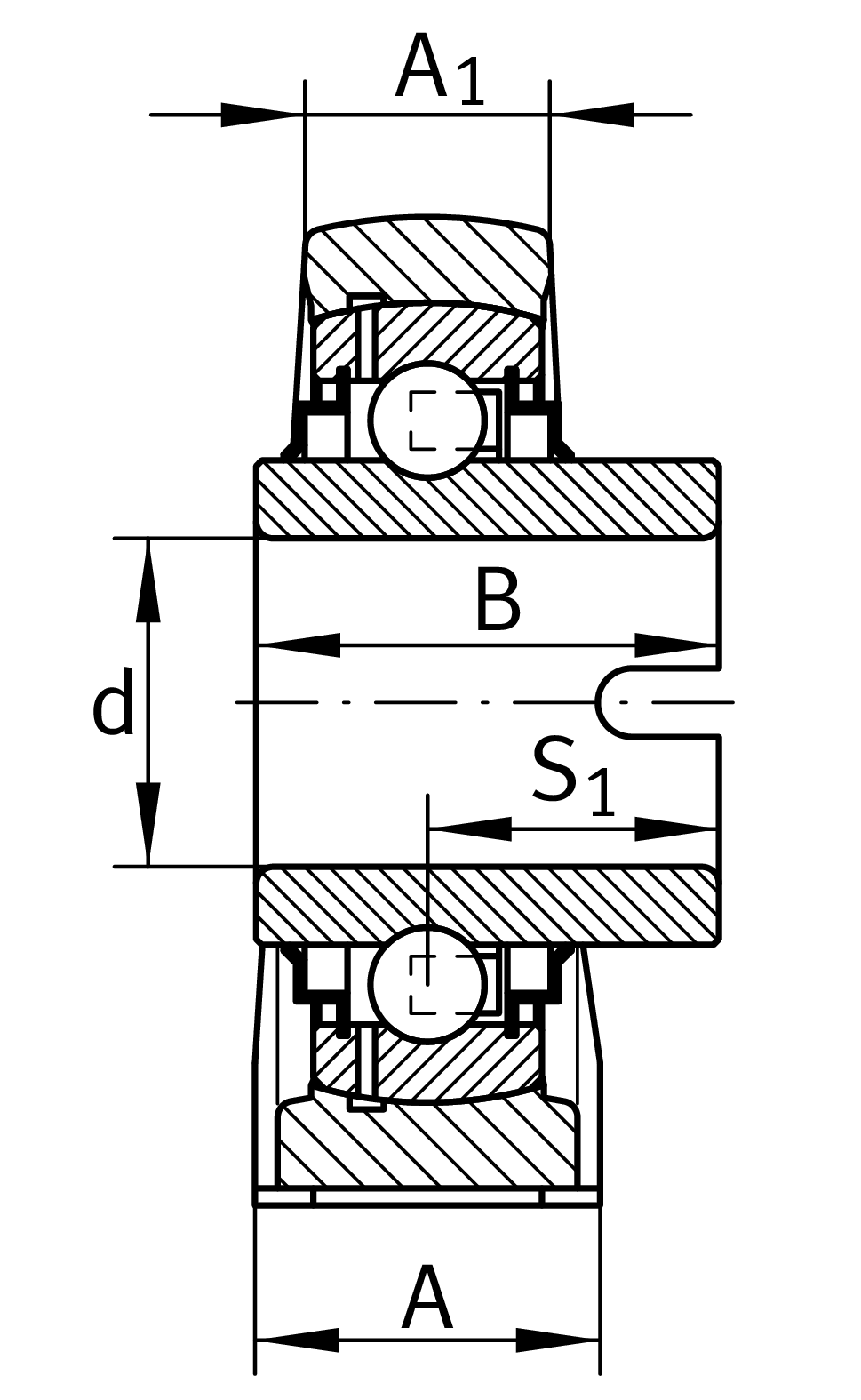

Dimensions
| H | 79.4 mm | Distance shaft axis |
| A | 65 mm | Width (base) |
| A1 | 44 mm | Width (head) |
| H1 | 27.5 mm | Heigth (base) |
| B | 68.2 mm | Width |
| S1 | 41.2 mm | Distance of raceway to locking collar |
| Q | M6 | Connection thread for lubrication |
Additional information
ASE14 | Housing | |
GLE70-XL-KRR-B | Bearing designation |
Temperature range
| Tmin | -40 °C | Operating temperature min. |
| Tmax | 150 °C | Operating temperature max. |
Your current product variant
| Material | GG | Grey cast iron |
