Main Dimensions & Performance Data
| d | 40 mm | Bore diameter |
| DSP | 90 mm | Outside diameter |
| B | 23 mm | Width |
| Cr | 44,500 N | Basic dynamic load rating, radial |
| C0r | 26,000 N | Basic static load rating, radial |
| ≈m | 0.63 kg | Weight |

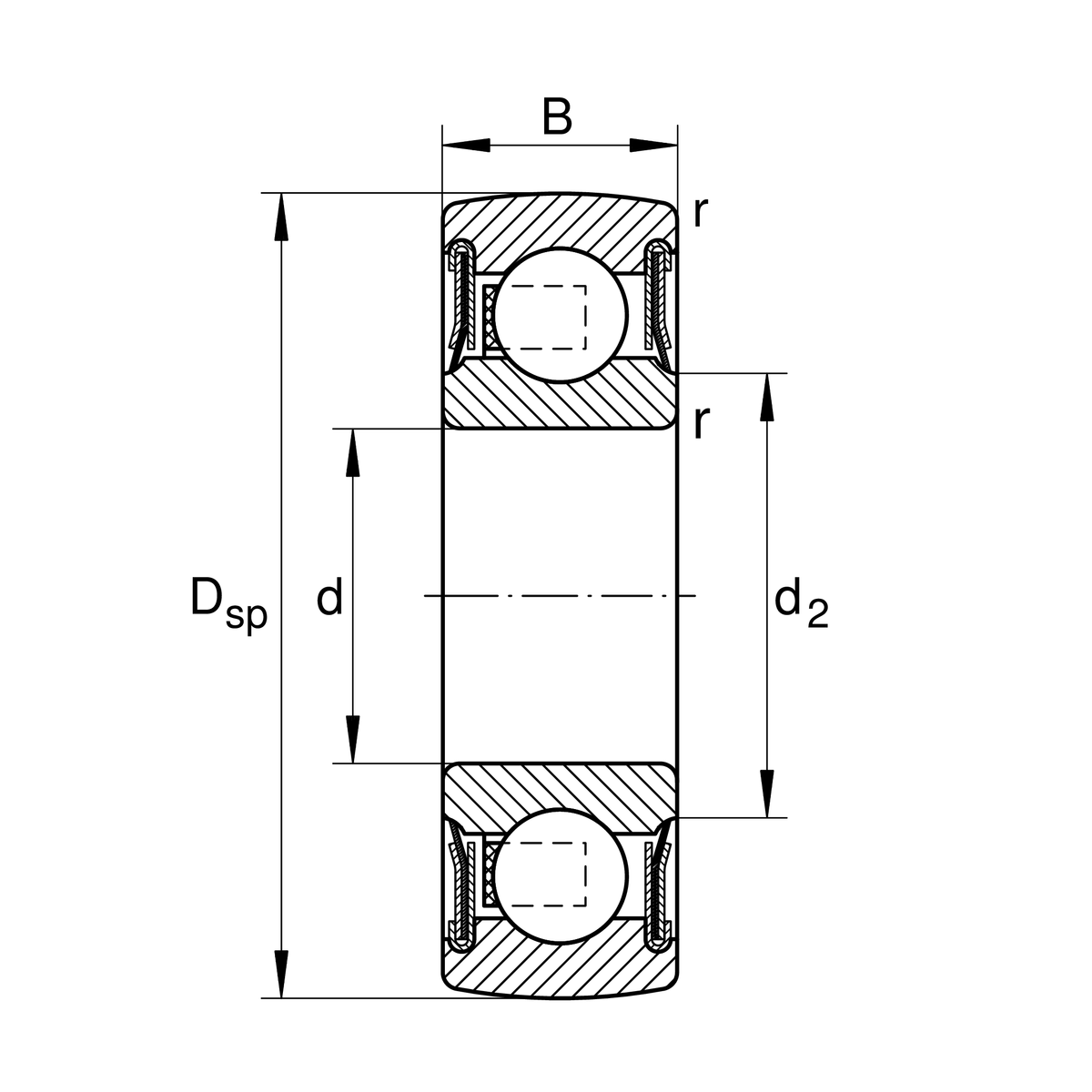

Dimensions
| d2 | 55.6 mm | Rib diameter sealing inner ring |
Temperature range
| Tmin | -20 °C | Operating temperature min. |
| Tmax | 100 °C | Operating temperature max. |
Your current product variant
| Sealing | NPP | |
| Shape of outer surface | B | Spherical |
