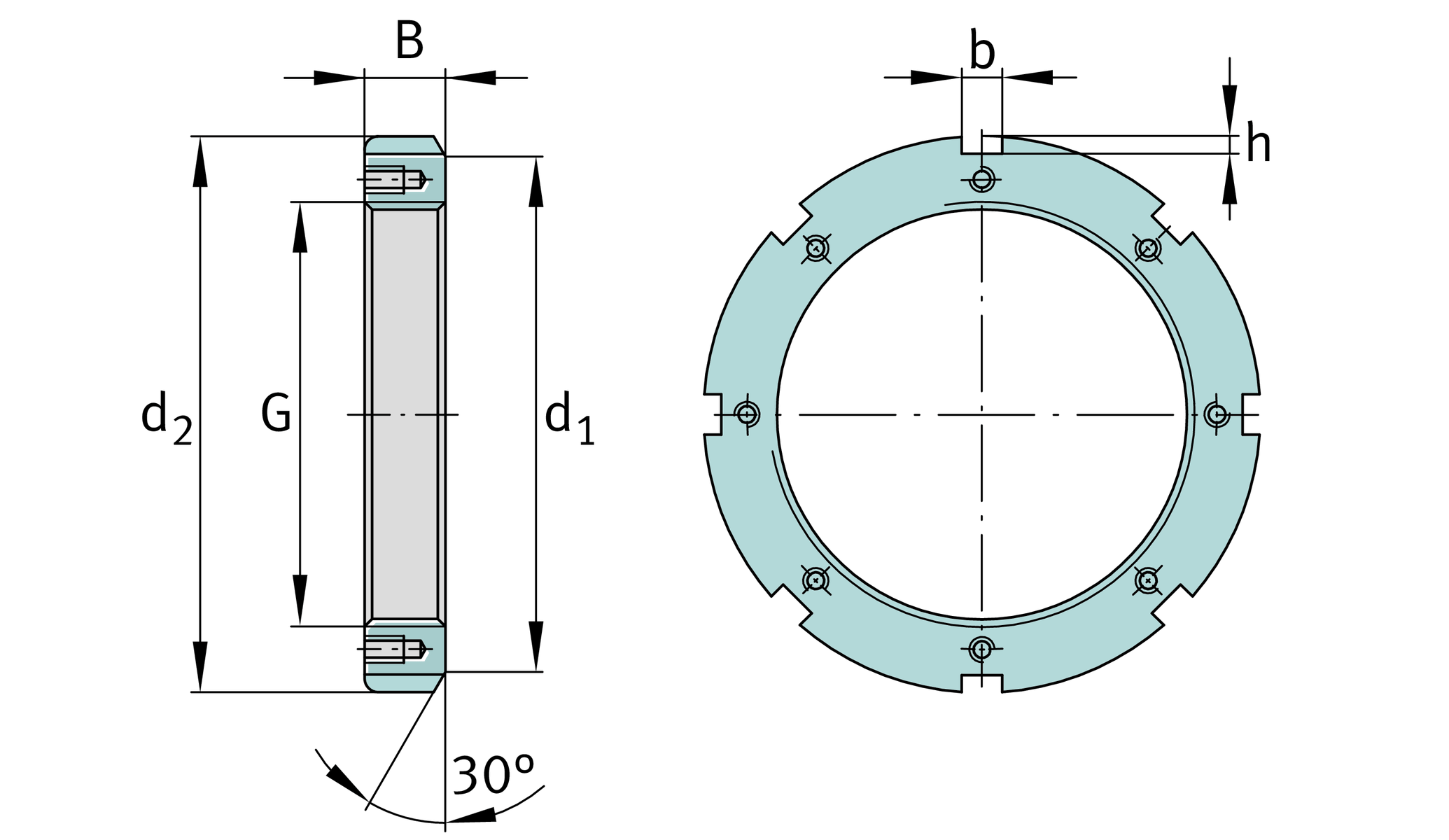

Main Dimensions & Performance Data
| G | Tr1600X8 | Thread |
| d2 | 1,730 mm | Outside diameter |
| B | 100 mm | Width |
| ≈m | 259.5 kg | Weight |
Mounting dimensions
| d1 | 1,675 mm | Chamfer diameter |
| b | 60 mm | Width retaining slot |
| h | 25 mm | Hight retaining slot |
Additional information
| F | 33,000,000 N | Axial load capacity, static |
MS30/850 | Fuse | |
30 ° | Chamfer angle |
