Technical data
| U | 400 V | Voltage |
Three-phase AC | Current type | |
| f | 50 – 60 Hz | Power frequency |
| P | 1.1 kW | Power consumption |
| Fc max | 692 kN | Max. contact force cylinder |
| sc max | 230 mm | Max. working stroke cylinder |
| pmax | 700 bar | Max. operating pressure |
435 – 995 | Working height range [bottom – center axis cylinder] (mm) | |
1050 x 550 x 900 | Dimensions [LxWxH] (mm) | |
| ≈m | 161 kg | Weight |
Functions
electrically driven hydraulic unit, double action hollow piston cylinder | Functional principle | |
hydraulic with foot pedal, manually operated lowering valve | Height adjustment | |
4 swivel castors with brake function | Castors | |
force-displacement measurement, data memory for mounting documentation | Enhanced functionality |
Additional information
Product is manufactured to order. Request with specification of the application case to customer service. | Availability | |

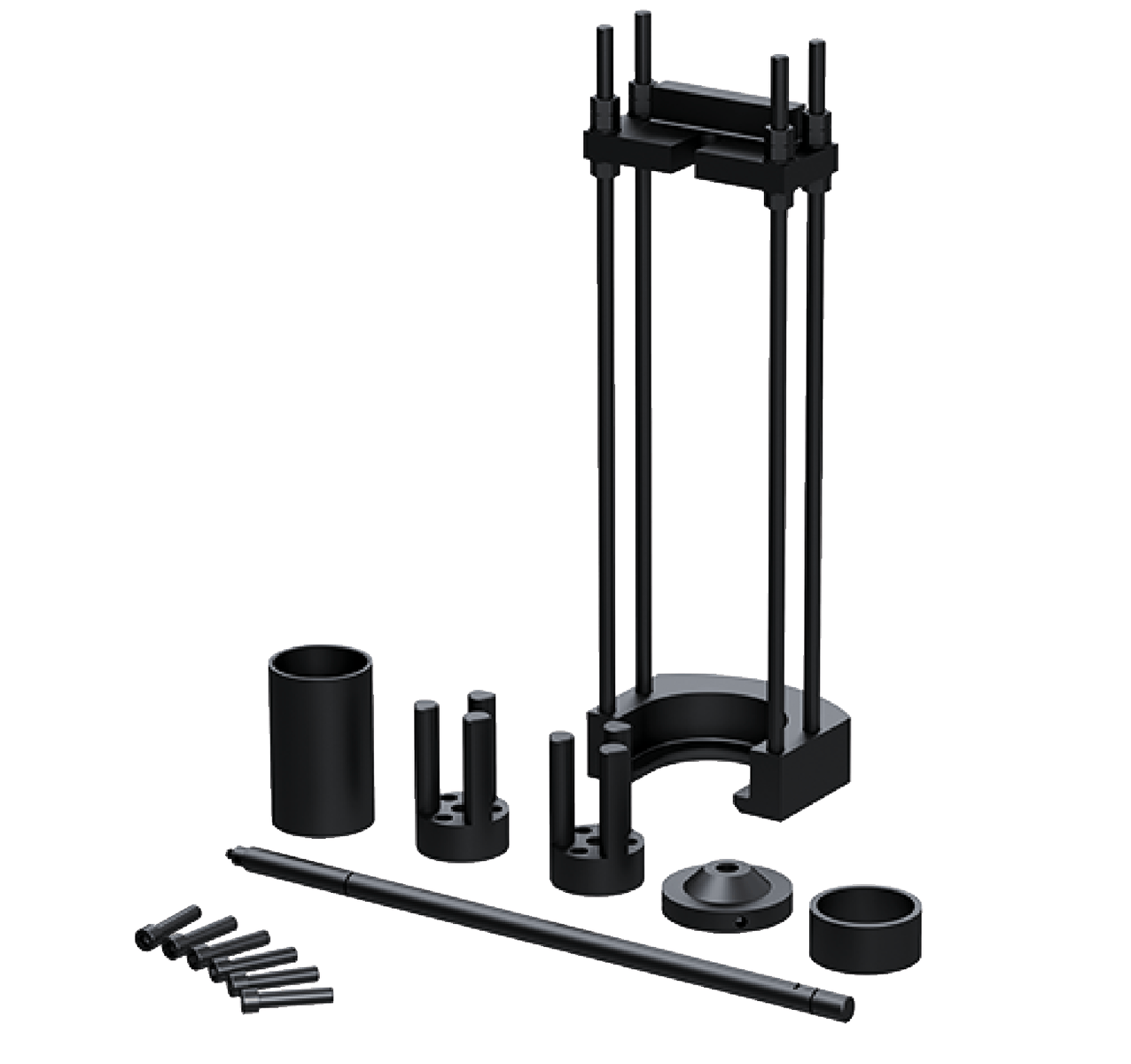

only in conjunction with bearing/application-specific tool set TOOL-RAILWAY-AXLE... (not included in delivery, separate on request) | Usability |
Your current product variant
| Series | TRAG | TOOL-RAILWAY-AGGREGATE |
