Main Dimensions & Performance Data
| H | 78 mm | Height sytem |
| B | 124 mm | Width clamping element |
| L | 201 mm | Length of clamping element |
| ≈m | 11.9 kg | Weight |

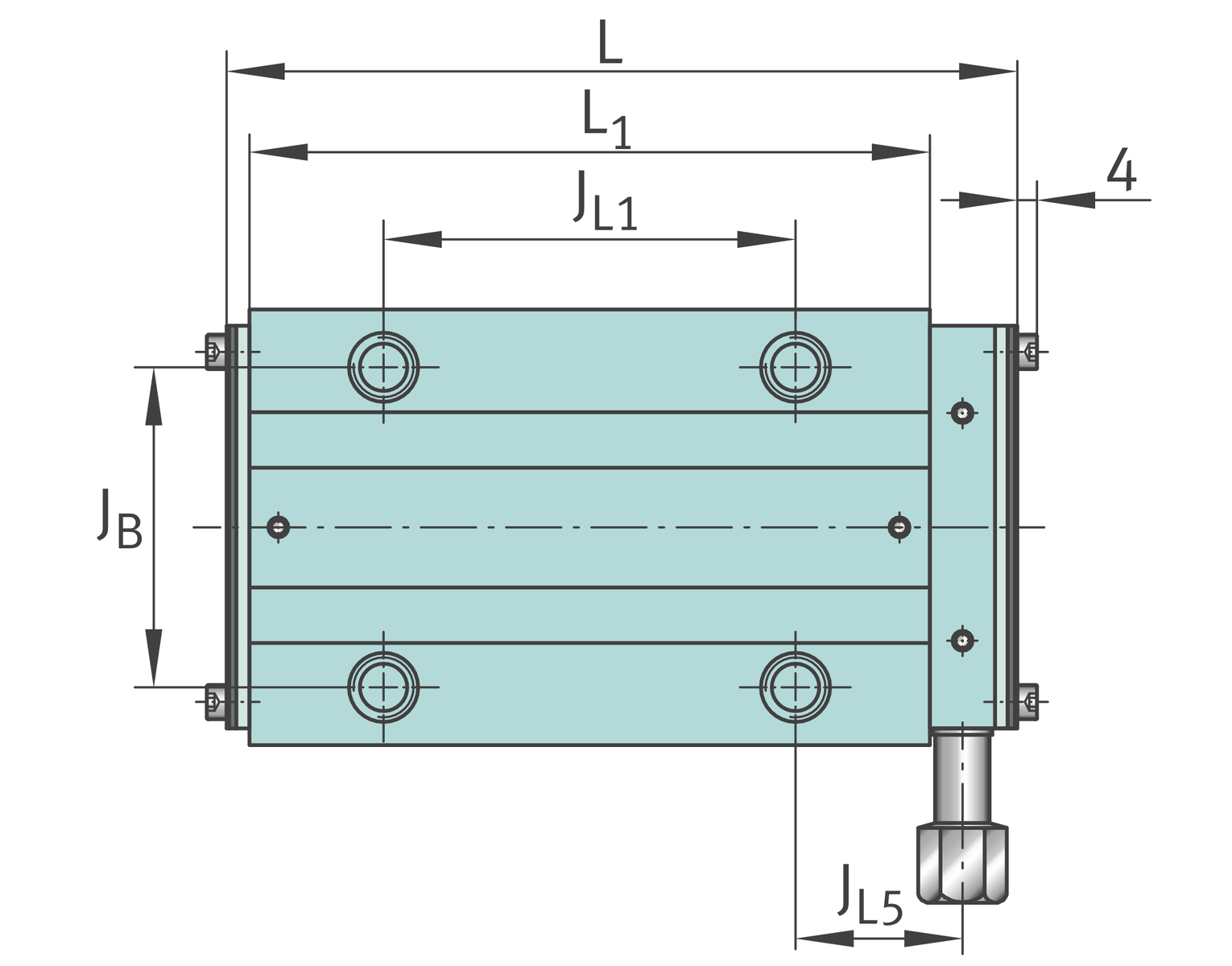

Mounting dimensions
| JB | 76 mm | Hole pattern width |
| A3 | 40.5 mm | Mounting dimension oil connector |
| L1 | 170.1 mm | Length saddle plate |
| JL1 | 70 mm | Hole pattern lengthwise |
| JL5 | 60.05 mm | Distance |
| H1 | 11.5 mm | Space (system) |
| H9 | 38.1 mm | |
| G2 | M16 | Size thread above for DIN ISO 4762-12.9 |
| M G2 | 220 Nm | Tightening torque above 1 |
Related products
TSX65-E; TSX65-F | Suitable guideway | |
RUE65-E; RUE65-F | Suitable system |
Your current product variant
| Size code | 65 | |
| Version | D | |
| Internal design | A | |
| Carriage design | H | high carriage |

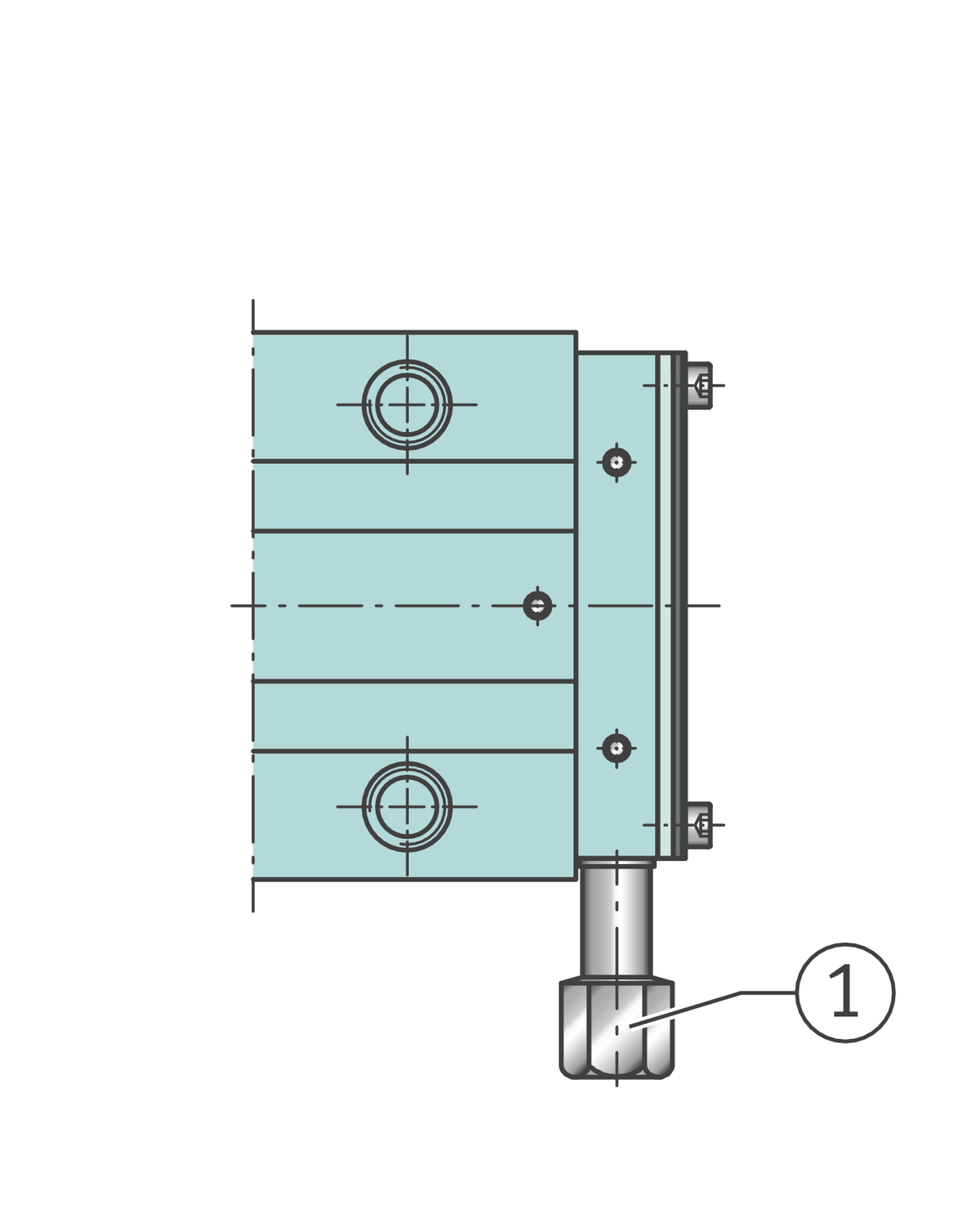

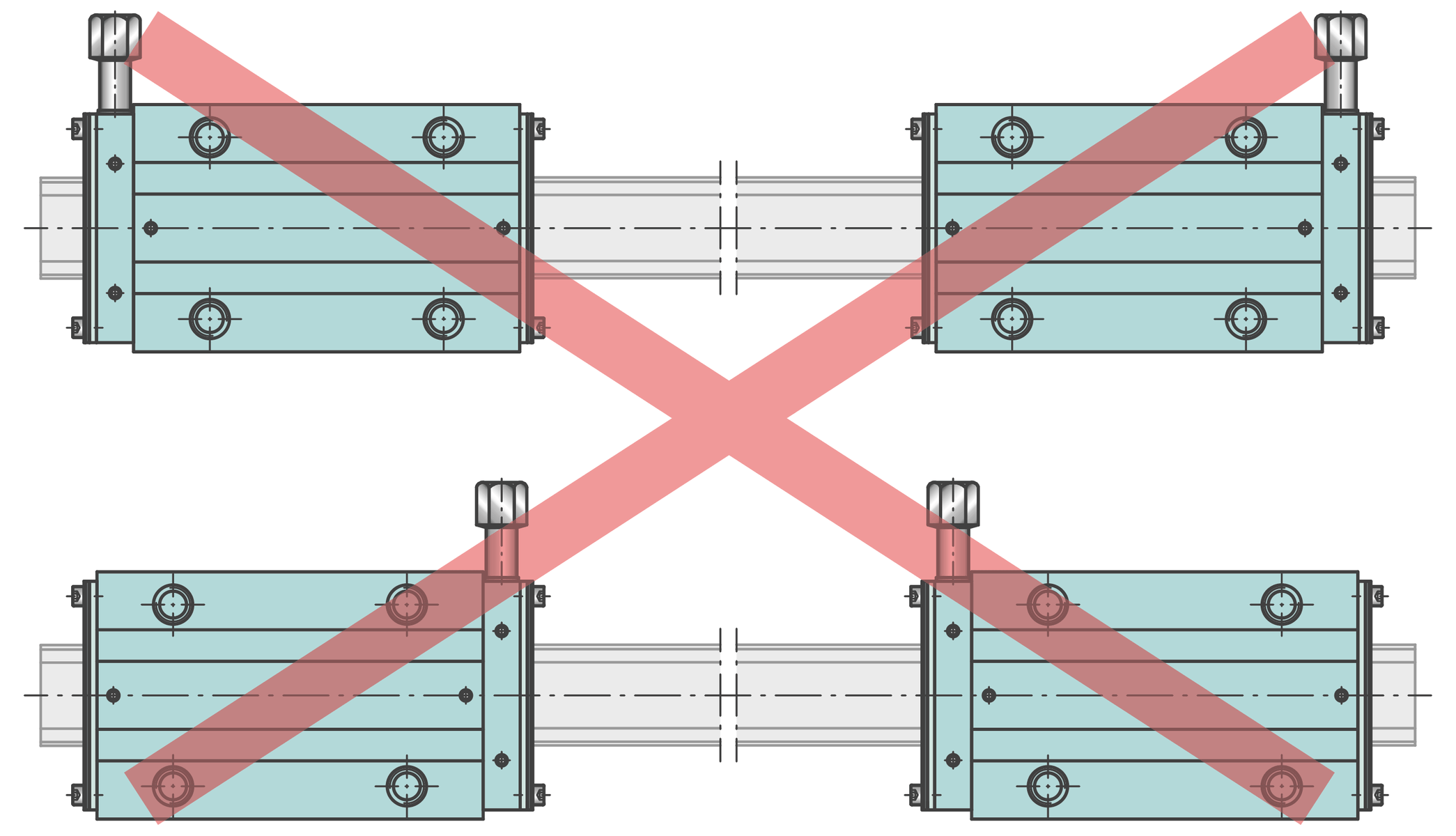

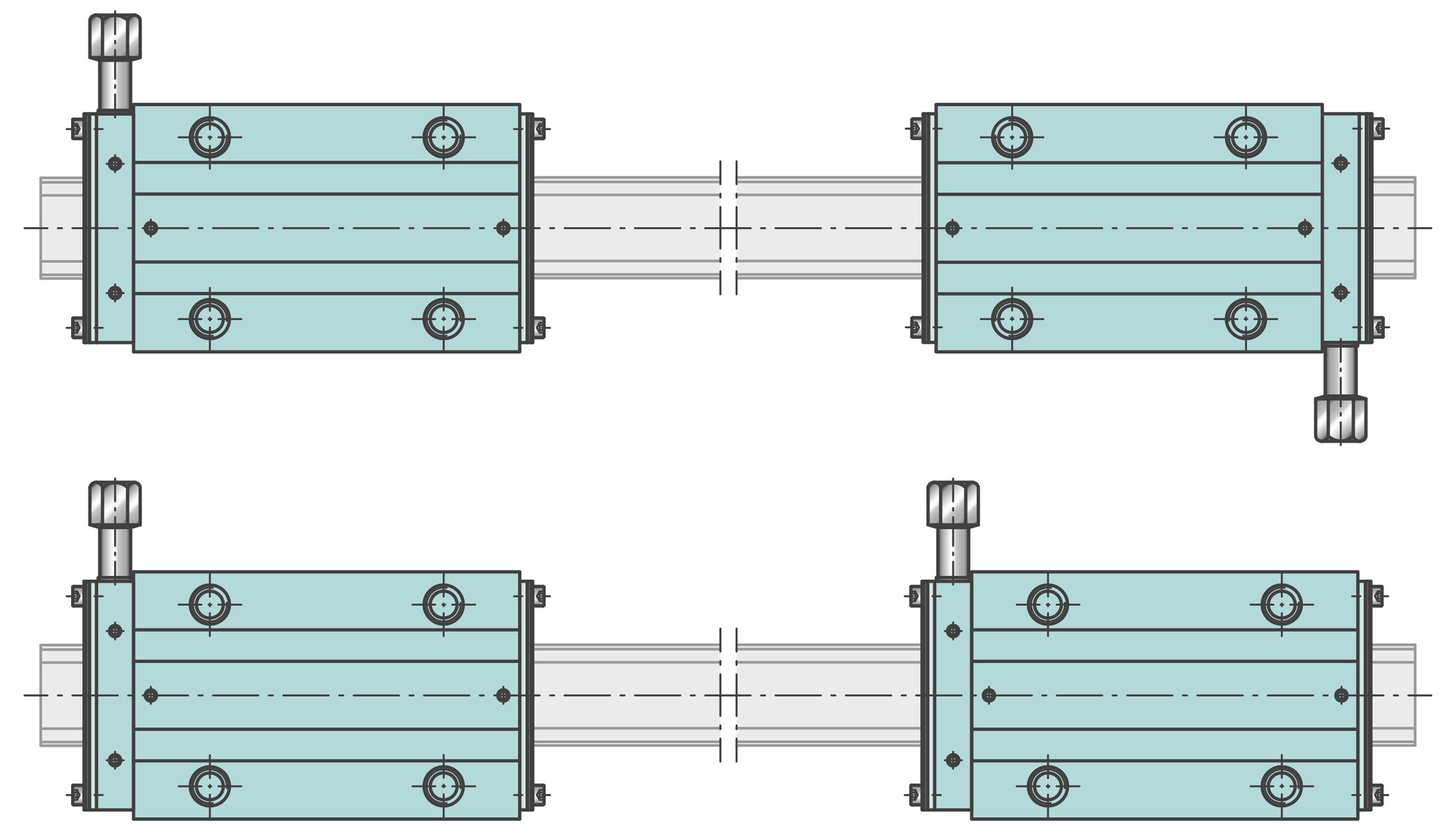

| Oil connector | SR | Oil connector on side |
