RUDS55X300-D-H
Damping carriage for linear recirculationg roller bearing and guideway assembly RUDS55X300-D-H
Add item
Main Dimensions & Performance Data
H
80 mm
height
B
98 mm
width
L3
300
standard length 3 1
≈m
11.6 kg
Weight

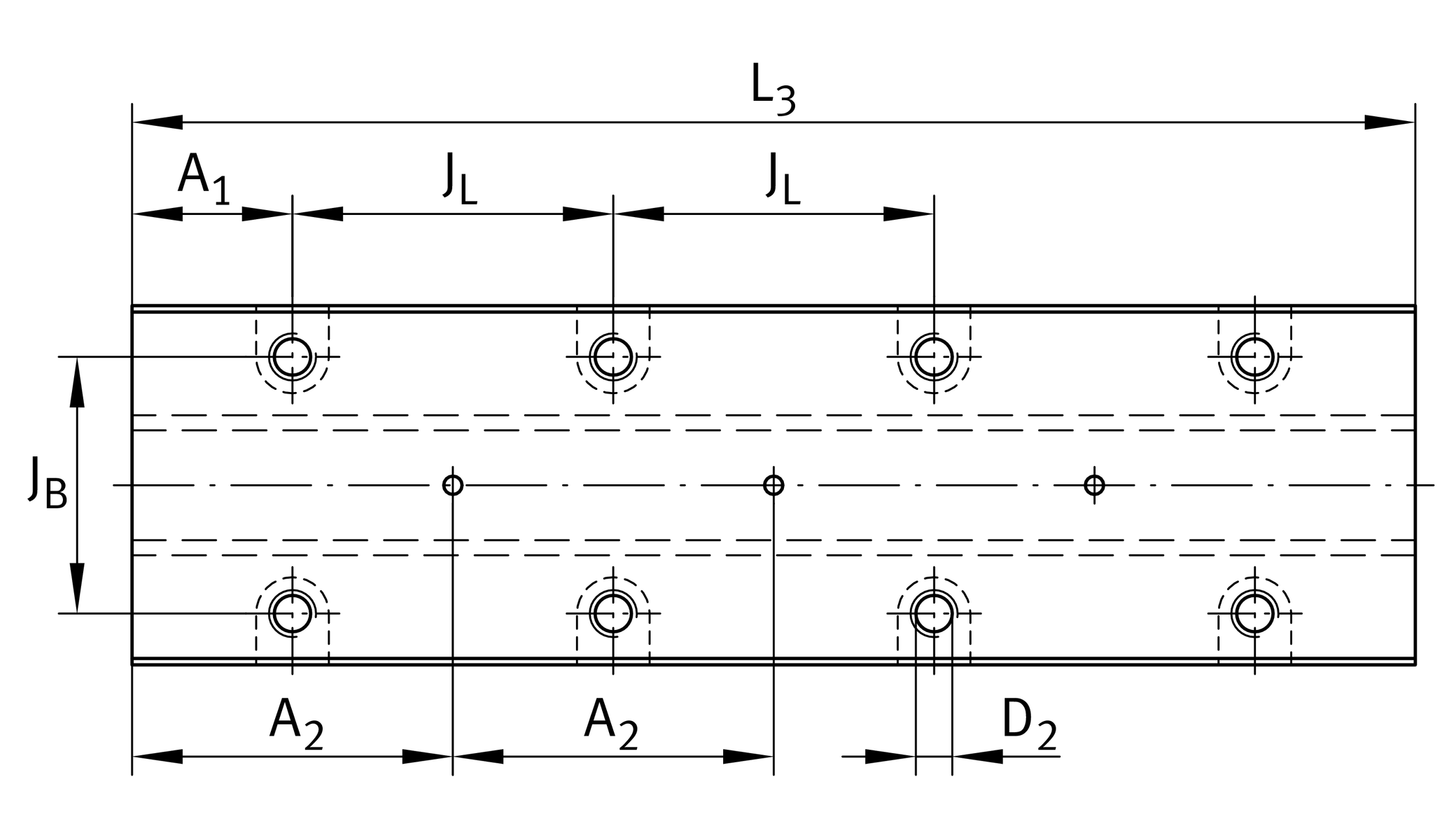

Mounting dimensions
H1
13 mm
T5
18 mm
H3
61 mm
JB
75 mm
A1
37.5 mm
A2
75 mm
JL
75 mm
G2
M12
fixing screws 2
G2 MA
144 Nm
tightening torque 3
n
8
number of fixing threads

Related products
RUE55-E-H, RUE55-E-HL, RUE55-F-H, RUE55-F-HL
suitable linear guidances

Your current product variant
Size code55
Length300standardlength 3
SuffixD
VersionHhigh version
