Main Dimensions & Performance Data
| d | 170 mm | Bore diameter |
| D | 310 mm | Outside diameter |
| B | 52 mm | Width |
| Cr | 700,000 N | Basic dynamic load rating, radial |
| C0r | 780,000 N | Basic static load rating, radial |
| Cur | 119,000 N | Fatigue load limit, radial |
| nG | 3,850 1/min | Limiting speed |
| nϑr | 1,970 1/min | Reference speed |
| ≈m | 18.3 kg | Weight |

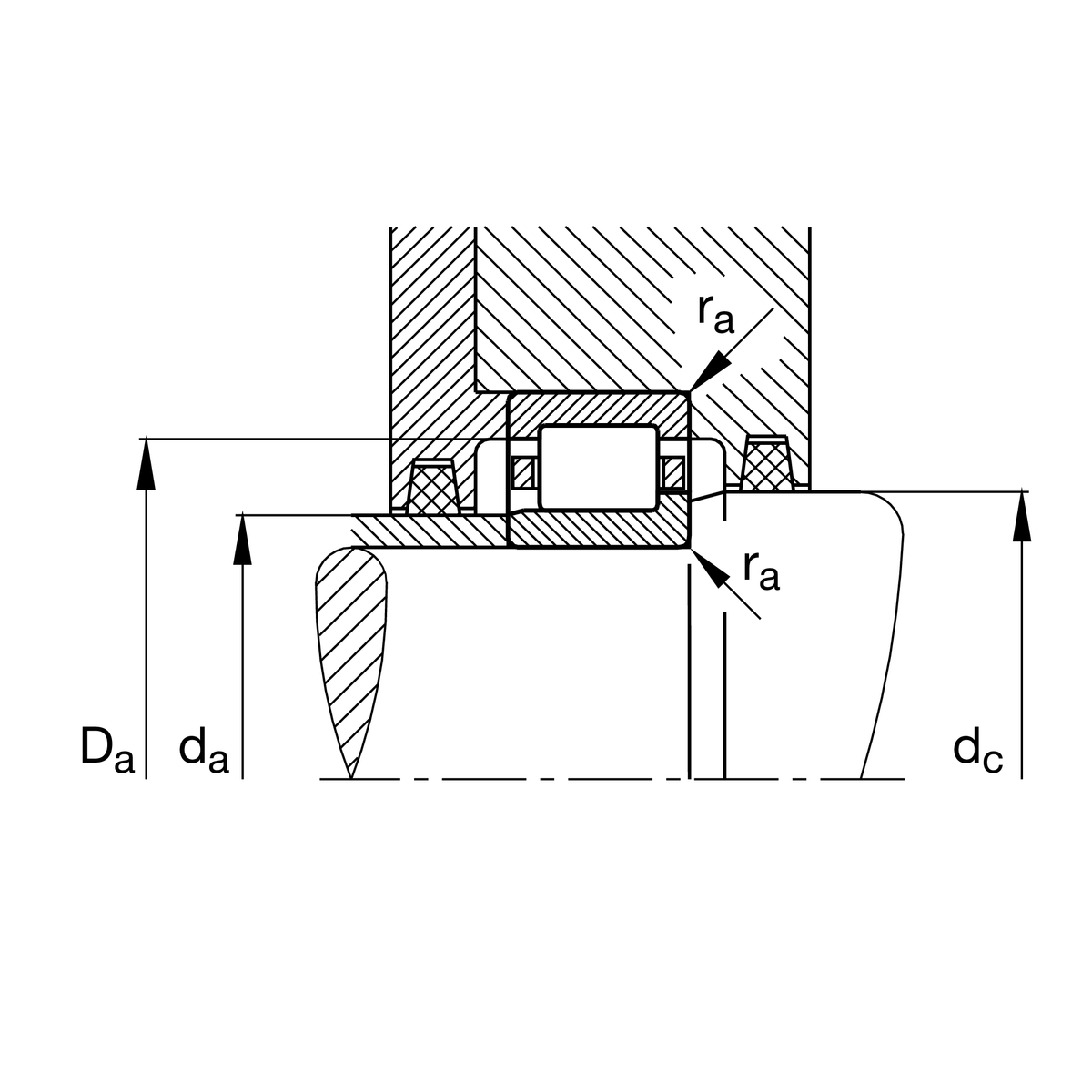

Mounting dimensions
| da min | 187 mm | Minimum diameter shaft shoulder |
| da max | 204 mm | Maximum diameter of shaft shoulder |
| Da max | 293 mm | Maximum diameter of housing shoulder |
| dc min | 223 mm | Minimum shaft shoulder |
| ra max | 3 mm | Maximum recess radius |
Dimensions
| rmin | 4 mm | Minimum chamfer dimension |
| r1 min | 4 mm | Minimum chamfer dimension |

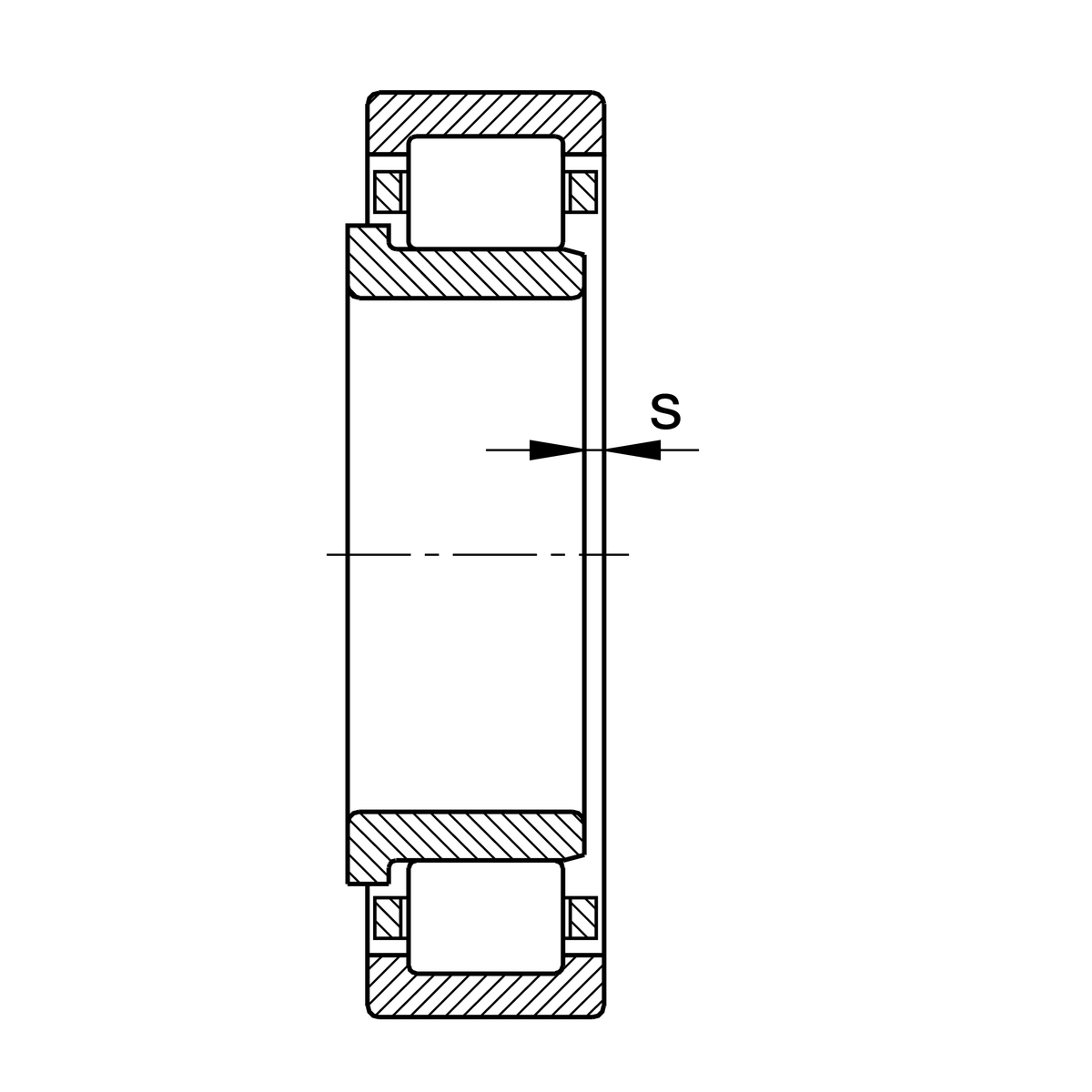

| s | 4.3 mm | Axial displacement |
| E | 279 mm | Raceway diameter outer ring |
| F | 207 mm | Raceway diameter inner ring |

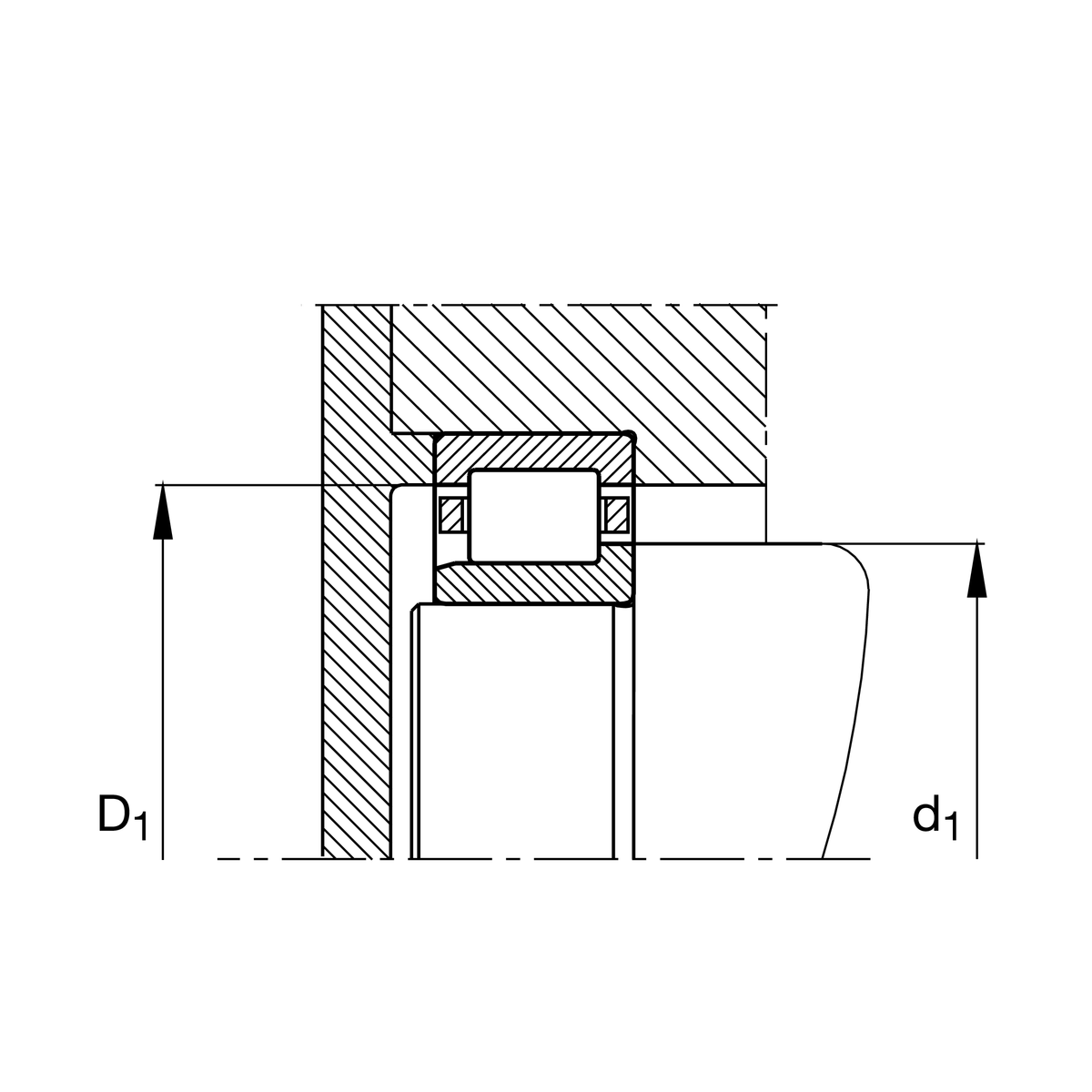

| D1 min | 268.5 mm | Minimum rib diameter outer ring |
| d1 | 218.4 mm | Maximum rib diameter inner ring |
Temperature range
| Tmin | -30 °C | Operating temperature min. |
| Tmax | 150 °C | Operating temperature max. |
Additional information
HJ234-E | L-washer |
Your current product variant
| Design | E | Increased Capacity Design |
| Cage | M1 | Two Piece Brass Cage Roller Guided |
| Radial internal clearance | CN (Group N) | Normal internal clearance |
| Tolerance class | PN | Normal (PN) |
| Number of rolling element rows | 1 | Single-row design |
