ZGB140X155X150
Bush ZGB140X155X150
Add item
Main Dimensions & Performance Data
Di
140 mm
Inner diameter
Do
155 mm
Outer diameter
B
150 mm
Width
Cr
6,300,000 N
Basic dynamic load rating, radial
C0r
6,300,000 N
Basic static load rating, radial
≈m
3.83 kg
Weight

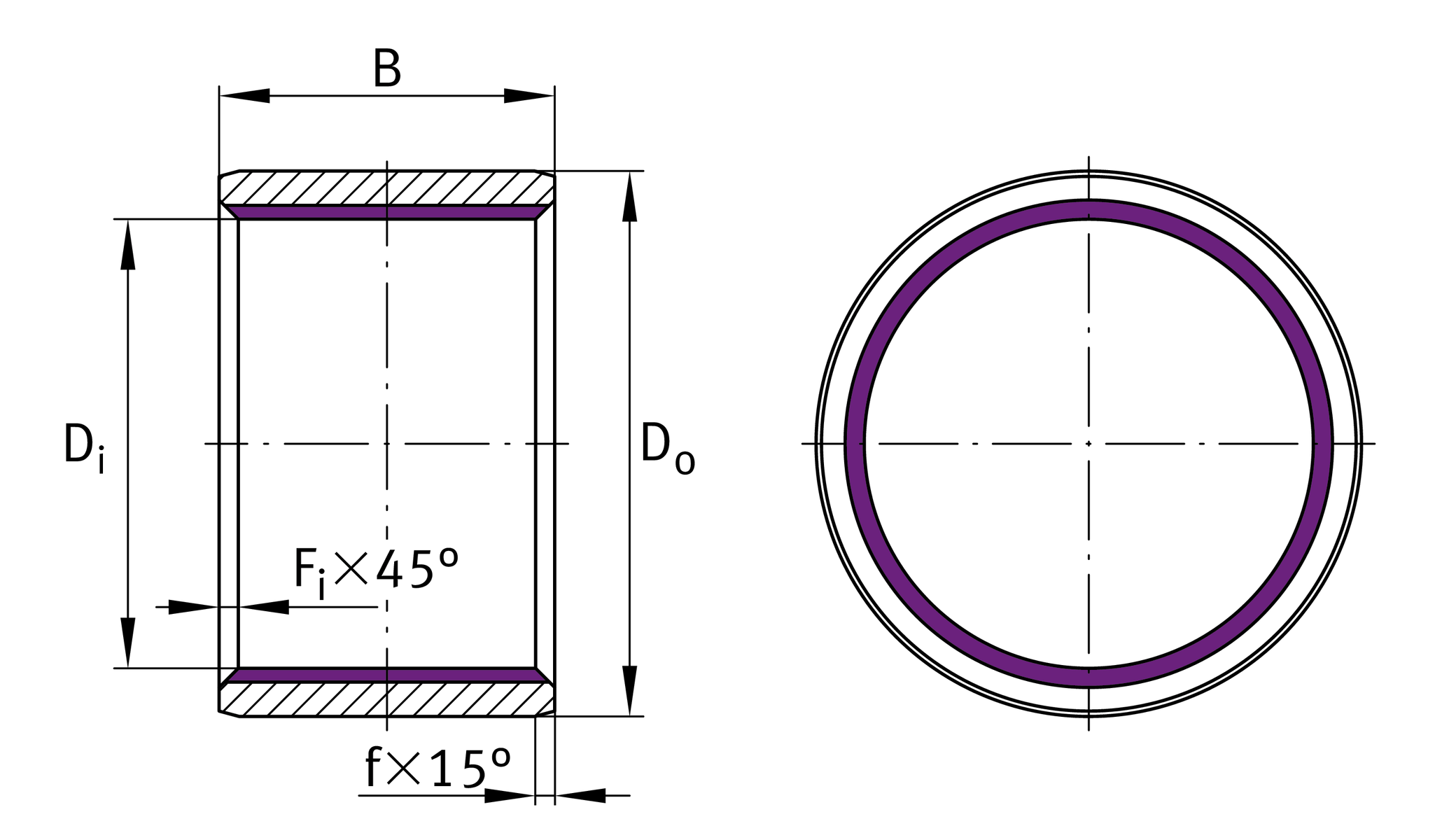

Dimensions
f
45 °
Chamfer angle bore diameter
f
15 °
Chamfer angle outside diameter
FiUT
-0.4 mm
Inner edge break, lower tolerance
FiOT
0.4 mm
Inner edge break, upper tolerance
f
4 mm
Outer chamfer
Fi min
0.4 mm
Inner edge break, min.
Fi max
1.2 mm
Inner edge break, max.
Di OT
0.063 mm
Inner diameter, upper tolerance
Do OT
0.083 mm
Outside diameter, upper tolerance
Di T
H8
Inner diameter, tolerance
Do T
p7
Outer diameter, tolerance
Di UT
0 mm
Inner diameter, lower tolerance
Do UT
0.043 mm
Outside diameter, lower tolerance
BT
h12
Width tolerance
BUT
-0.4 mm
Width, lower tolerance
BOT
0 mm
Width, upper tolerance
fOT
1.3 mm
Outer chamfer, upper tolerance
fUT
-1.3 mm
Outer chamfer, lower tolerance
Fi
0.8 mm
Inner edge break

Temperature range
Tmin
-50 °C
Operating temperature min.
Tmax
150 °C
Operating temperature max.

Your current product variant
SealingWithoutNot sealed
FabricELGOGLIDEELGOGLIDE
Material backSteel
