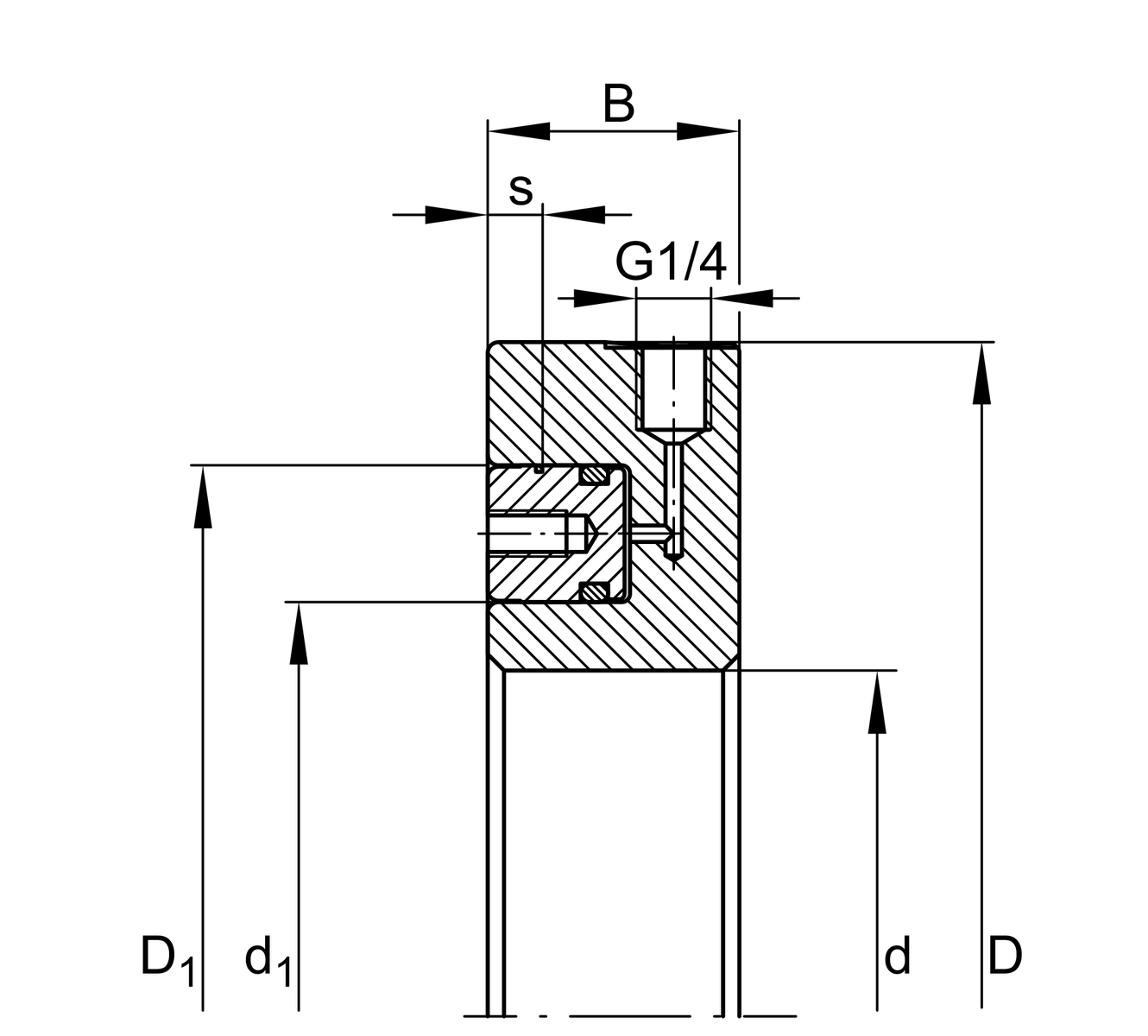

Technical data
| d | 650 mm | Inner diameter (tolerance: H7) |
| D | 980 mm | Outer Diameter |
| B | 84 mm | Width |
| D1 | 875 mm | |
| d1 | 695 mm | |
| s | 28 mm | Stroke, max. |
2,220 cm² | Piston surface | |
300 bar | Pressure, max. | |
6,660 kN | Drive-up force, max. | |
| ≈m | 274 kg | Weight |
Additional information
1 pc. Hydraulic nut, 1 pc. Screw plug, 1 pc. Connection nipple, 1 pc. Replacement seal set, 1 pc. User manual | Scope of delivery |
Your current product variant
| Series | HEAVY | reinforced version without thread |
