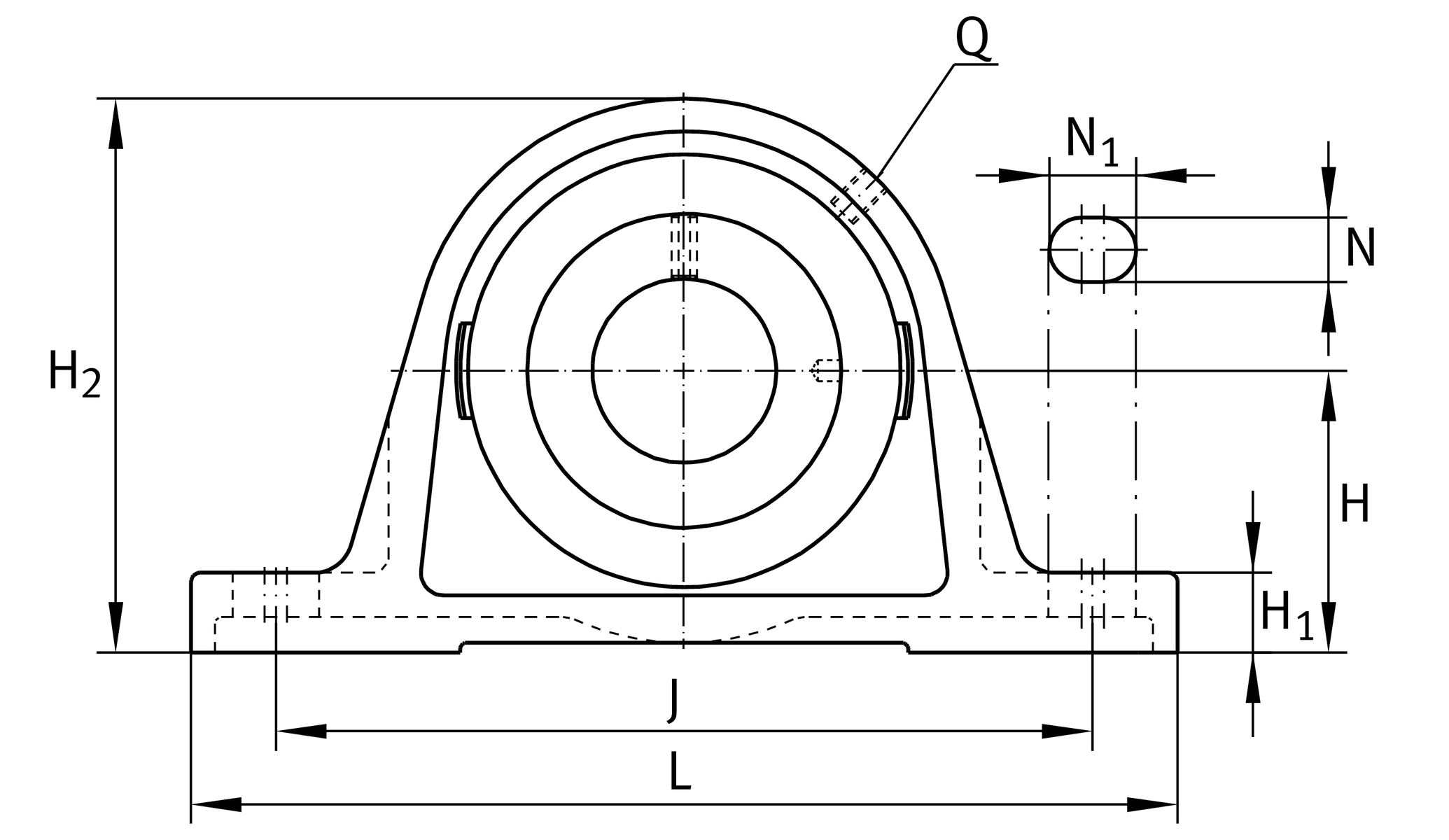

Main Dimensions & Performance Data
| d | 25 mm | Bore diameter |
| L | 130 mm | Length total |
| H2 | 70 mm | Height |
| ≈m | 0.7 kg | Weight |
Mounting dimensions
| J | 102.5 mm | Distance fixing bore |
| N | 11 mm | Width (slot) |
| N1 | 19 mm | Length (slot) |

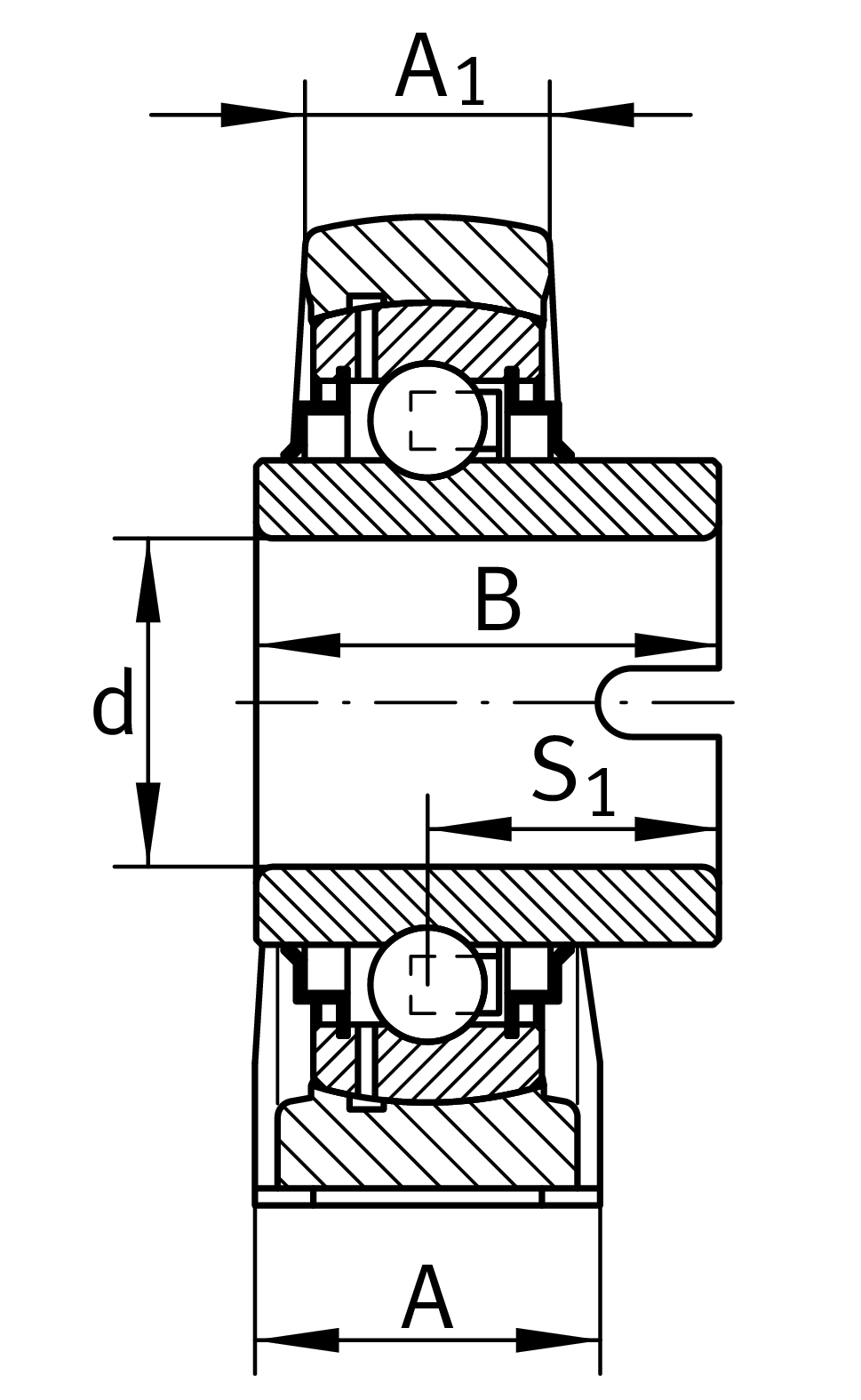

Dimensions
| H | 36.5 mm | Distance shaft axis |
| A | 36 mm | Width (base) |
| A1 | 21 mm | Width (head) |
| H1 | 14.5 mm | Heigth (base) |
| B | 34.9 mm | Width |
| S1 | 20.2 mm | Distance of raceway to locking collar |
| Q | M6 | Connection thread for lubrication |
Additional information
ASE05-FA125 | Housing | |
GLE25-XL-KRR-B | Bearing designation | |
KASK05 | Protecting cap |
Temperature range
| Tmin | -40 °C | Operating temperature min. |
| Tmax | 150 °C | Operating temperature max. |
Your current product variant
| Material | GG | Grey cast iron |
| Groove | N | Cast iron housing with undercut slot for end caps |
