Main Dimensions & Performance Data
| d | 100 mm | Bore diameter |
| D | 140 mm | Outside diameter |
| B | 20 mm | Width |
| Cr | 88,000 N | Basic dynamic load rating, radial |
| C0r | 33,000 N | Basic static load rating, radial |
| Cur | 1,530 N | Fatigue load limit, radial |
| nG Grease | 17,000 1/min | Limiting speed for grease lubrication |
| ≈m | 0.724 kg | Weight |

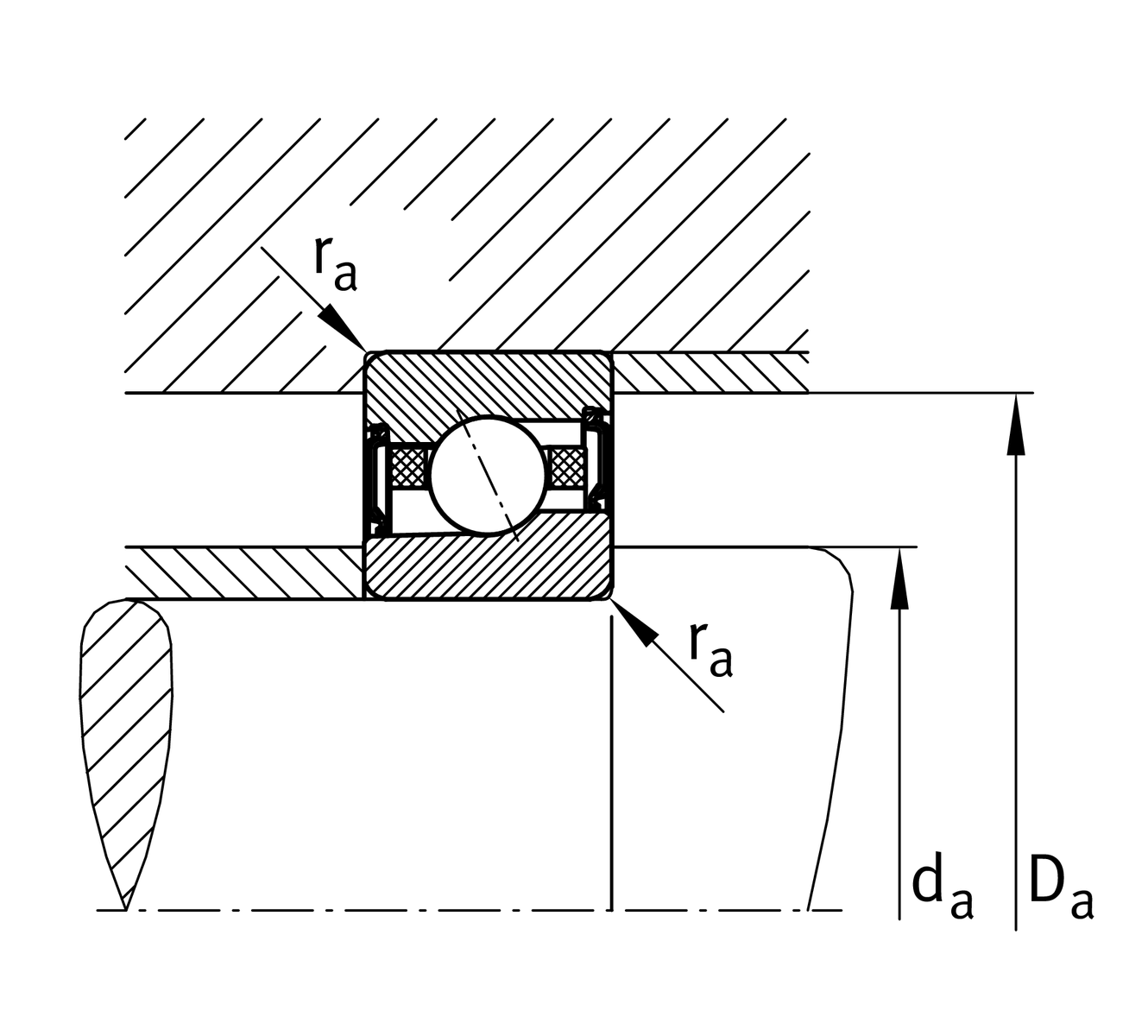

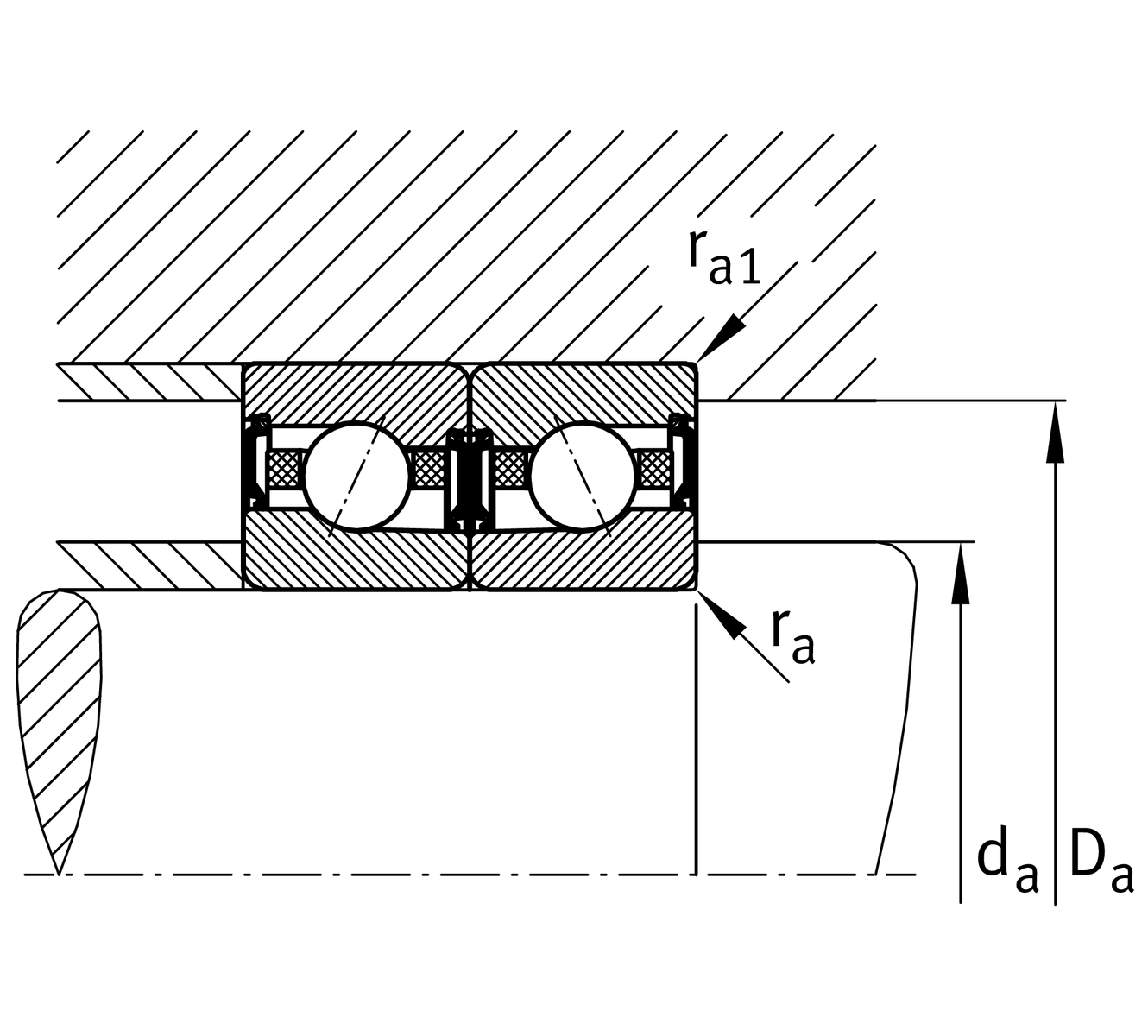

Mounting dimensions
| da | 107 mm | Diameter shaft shoulder |
| da | h12 | Diameter shaft shoulder clearance |
| Da | 133 mm | Shoulder diameter outer ring |
| Da | H12 | Shoulder diameter outer ring clearance |
| ra max | 0.6 mm | Maximum recess radius |
| ra1 max | 0.6 mm | Maximum recess radius |
| a | 38 mm | Distance between the apexes of the pressure cones |

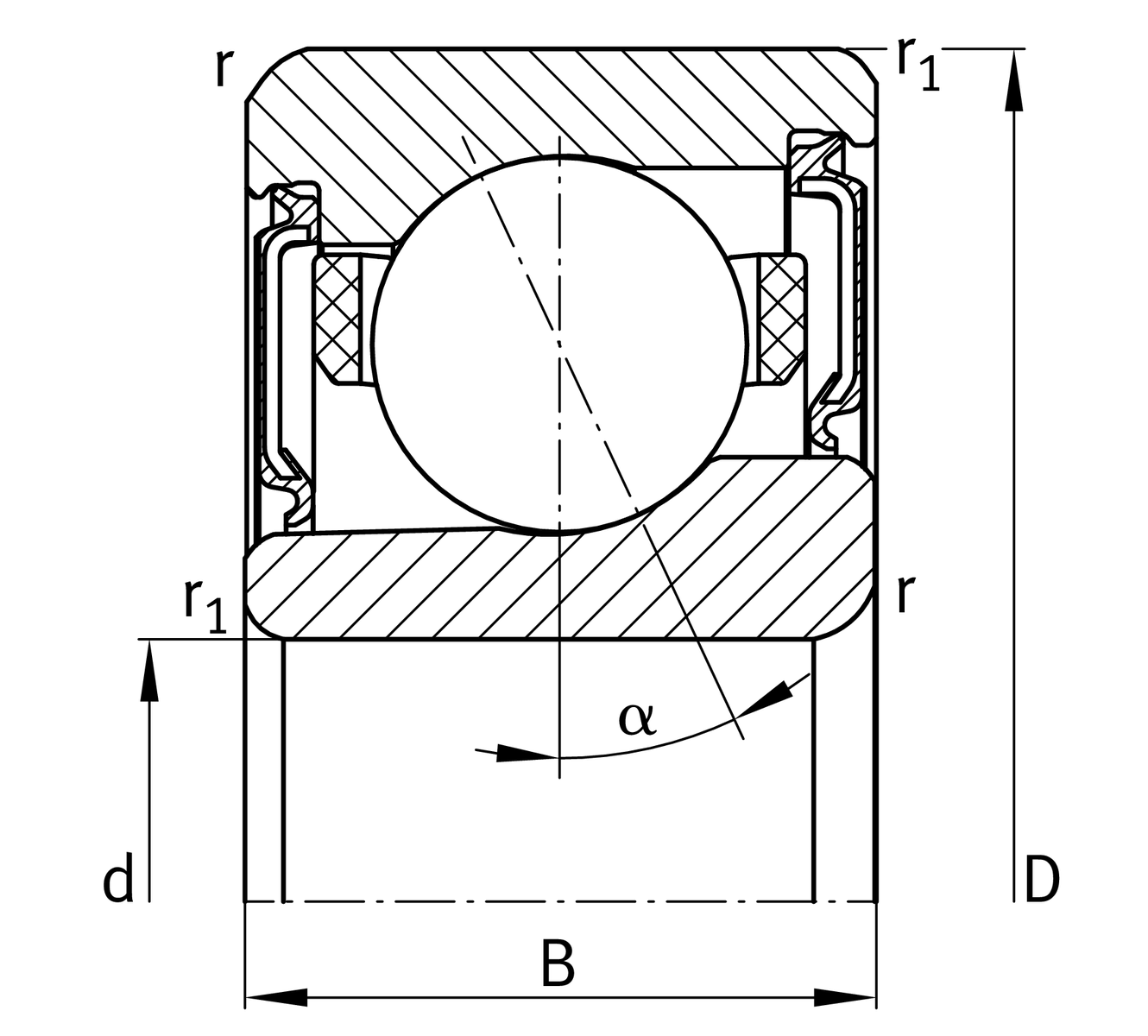

Dimensions
| rmin | 1.1 mm | Minimum chamfer dimension |
| r1 min | 0.6 mm | Minimum chamfer dimension |
| α | 25 ° | Contact angle |
Temperature range
| Tmin | -30 °C | Operating temperature min. |
| Tmax | 80 °C | Operating temperature max. |
Additional information
| FV L | 245 N | Preload force light |
| FV M | 642 N | Preload force medium |
| FV H | 1,334 N | Preload force heavy |
| KaE L | 702 N | Lift-off force light |
| KaE M | 1,855 N | Lift-off force medium |
| KaE H | 3,901 N | Lift-off force heavy |
| ca L | 181 N/µm | Axial rigidity light |
| ca M | 253 N/µm | Axial rigidity medium |
| ca H | 330 N/µm | Axial rigidity heavy |
Your current product variant
| Contact angle | E | Contact angle 25° |
| Sealing | 2RSD | non-contact sealed on both sides and greased “for life” |
| Outer shape | Standard | |
| Cage | T | Laminated fabric cage |
| Tolerance class | P4S | tolerance class P4S, FAG standard better than P4 to DIN 620 |
| Arrangement bearing set | U | Single bearing |
| Preload | L | preload light |
