Main Dimensions & Performance Data
| d | 90 mm | Bore diameter |
| D | 140 mm | Outside diameter |
| B | 24 mm | Width |
| Cr | 90,000 N | Basic dynamic load rating, radial |
| C0r | 35,000 N | Basic static load rating, radial |
| Cur | 1,670 N | Fatigue load limit, radial |
| nG Grease | 17,000 1/min | Limiting speed for grease lubrication |
| ≈m | 1.165 kg | Weight |

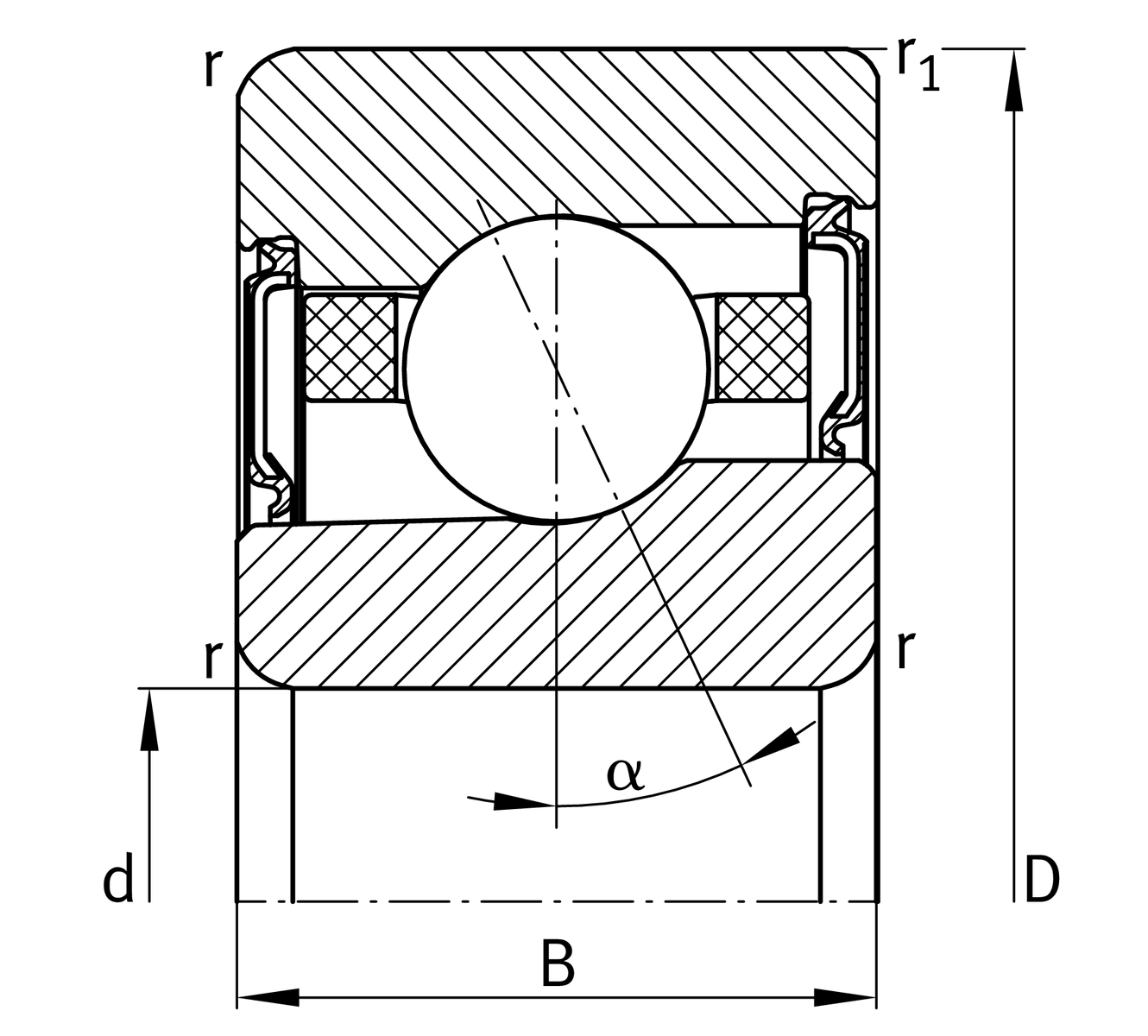

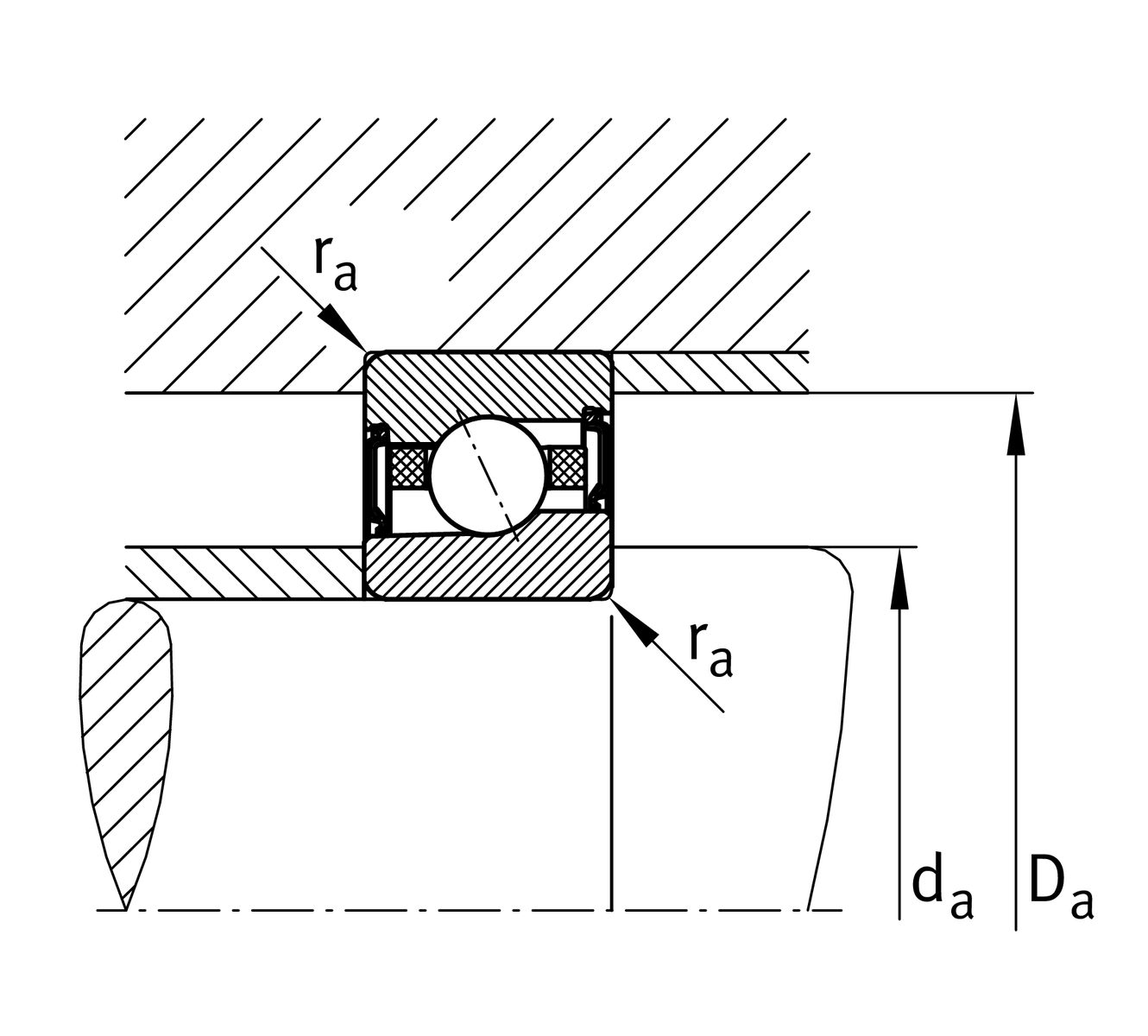

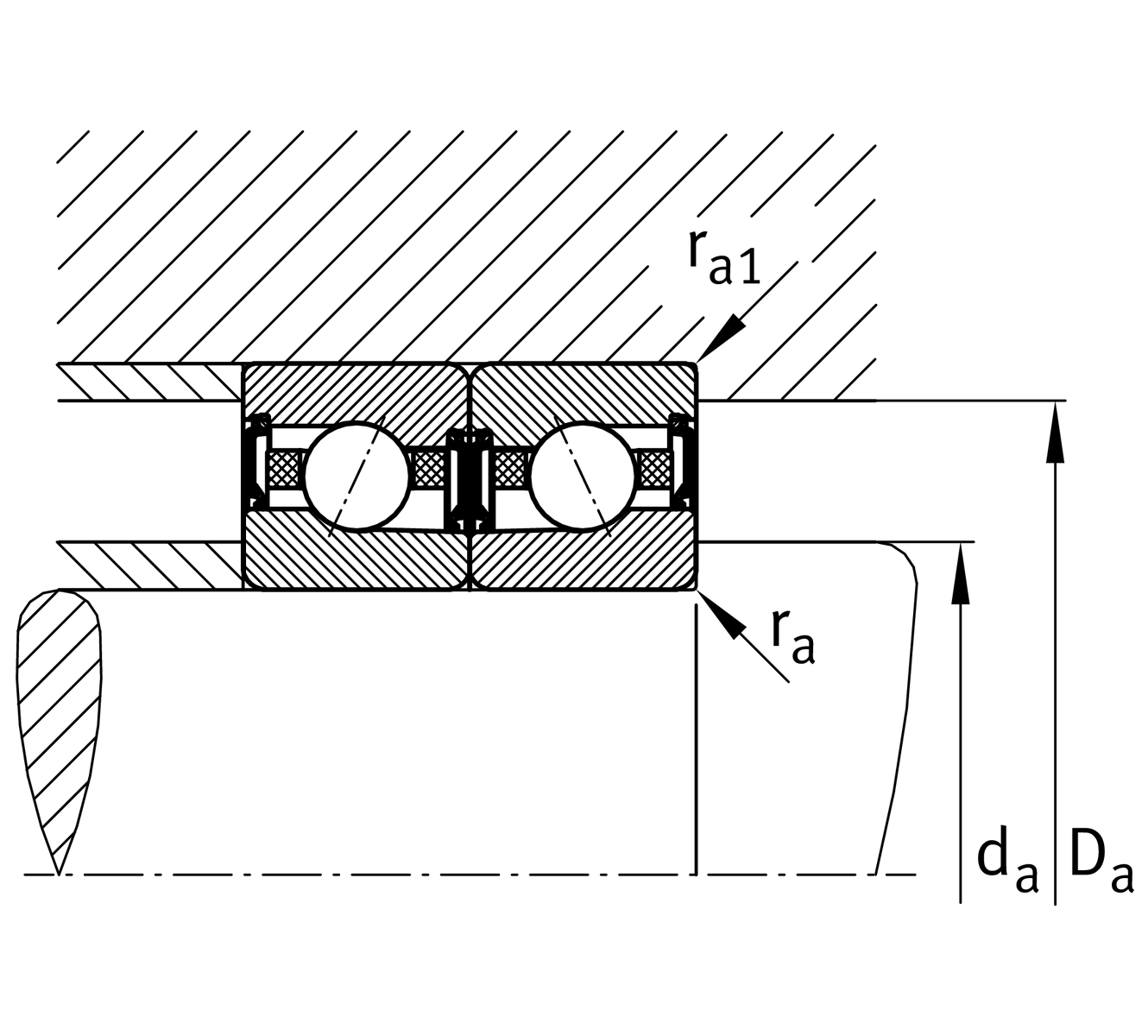

Mounting dimensions
| da | 100 mm | Diameter shaft shoulder |
| da | h12 | Diameter shaft shoulder clearance |
| Da | 131 mm | Shoulder diameter outer ring |
| Da | H12 | Shoulder diameter outer ring clearance |
| ra max | 1.5 mm | Maximum recess radius |
| ra1 max | 0.6 mm | Maximum recess radius |
| a | 38.8 mm | Distance between the apexes of the pressure cones |
Dimensions
| rmin | 1.5 mm | Minimum chamfer dimension |
| r1 min | 1 mm | Minimum chamfer dimension |
| α | 25 ° | Contact angle |
Temperature range
| Tmin | -30 °C | Operating temperature min. |
| Tmax | 80 °C | Operating temperature max. |
Additional information
| FV L | 265 N | Preload force light |
| FV M | 693 N | Preload force medium |
| FV H | 1,443 N | Preload force heavy |
| KaE L | 759 N | Lift-off force light |
| KaE M | 2,012 N | Lift-off force medium |
| KaE H | 4,250 N | Lift-off force heavy |
| ca L | 183 N/µm | Axial rigidity light |
| ca M | 258 N/µm | Axial rigidity medium |
| ca H | 338 N/µm | Axial rigidity heavy |
Your current product variant
| Contact angle | E | Contact angle 25° |
| Sealing | 2RSD | non-contact sealed on both sides and greased “for life” |
| Outer shape | Standard | |
| Cage | T | Laminated fabric cage |
| Tolerance class | P4S | tolerance class P4S, FAG standard better than P4 to DIN 620 |
| Arrangement bearing set | U | Single bearing |
| Preload | L | preload light |
