RUSV30105-KS
Linear recirculating roller bearing unit RUSV30105-KS
Add item

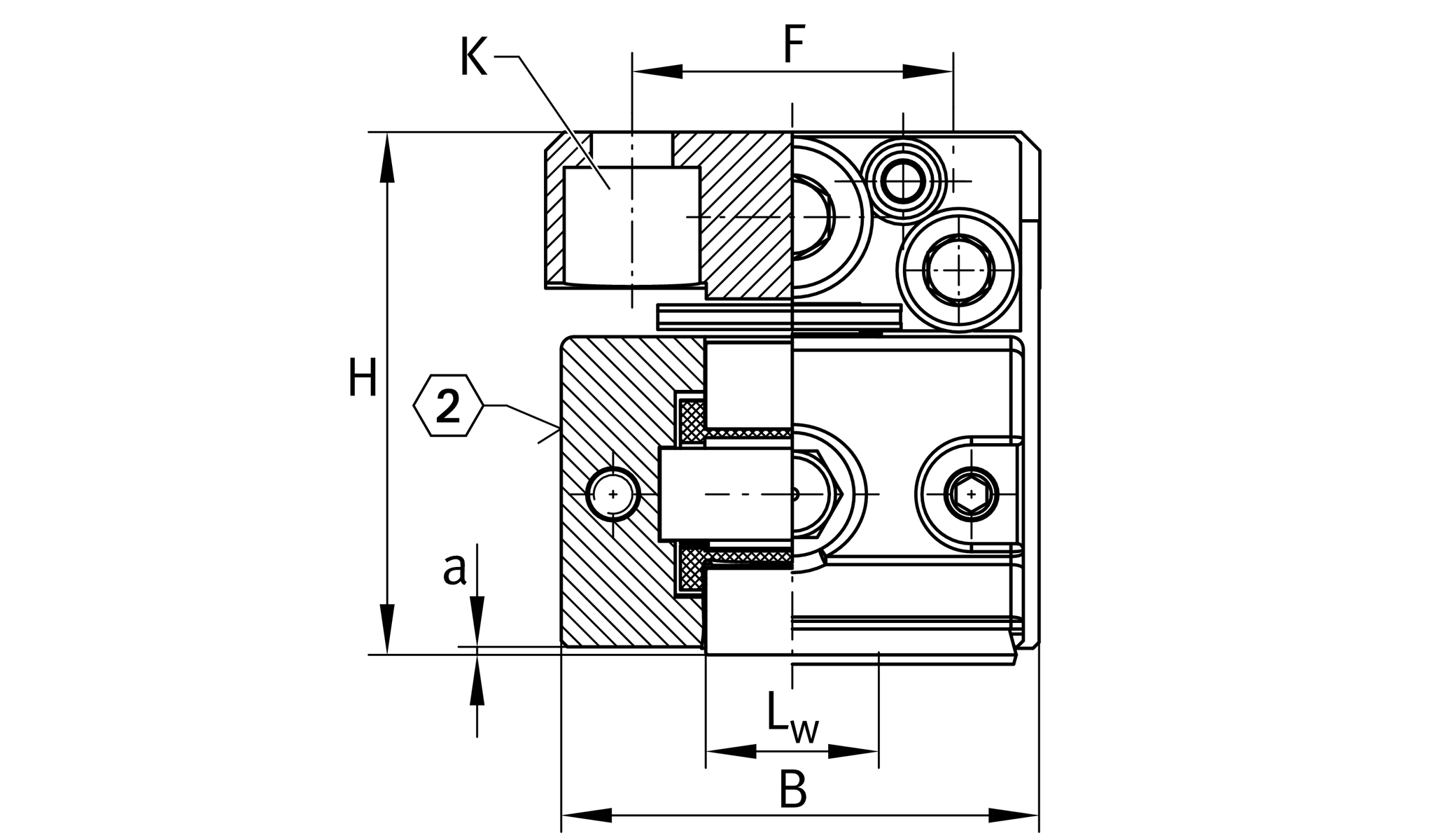

Main Dimensions & Performance Data
L
117 mm
Length total
B
27 mm
Width
H
30 mm
Height
C
68,000 N
Basic dynamic load capacity
C0
123,000 N
Basic static load capacity
≈m
0.53 kg
Weight

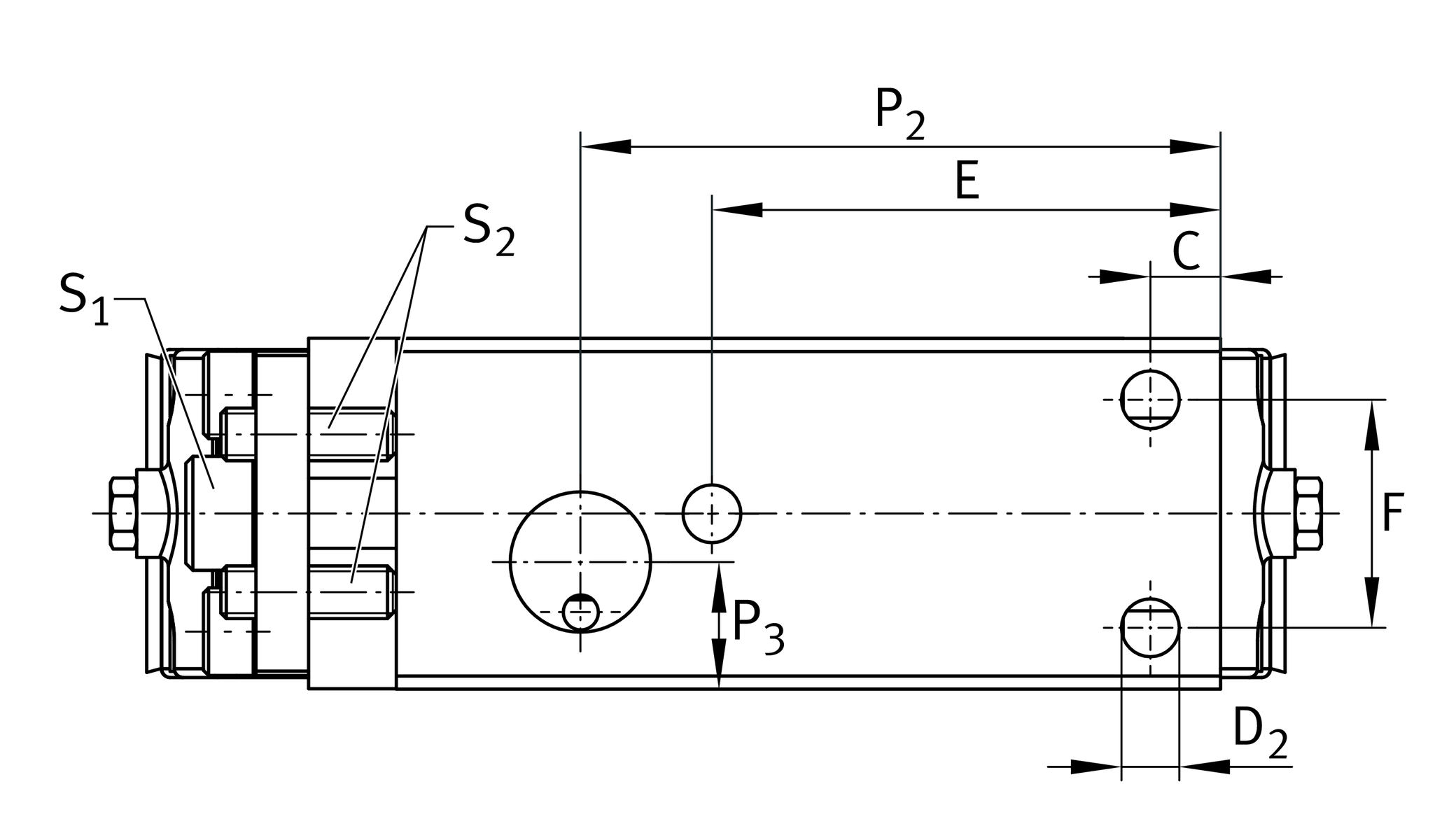

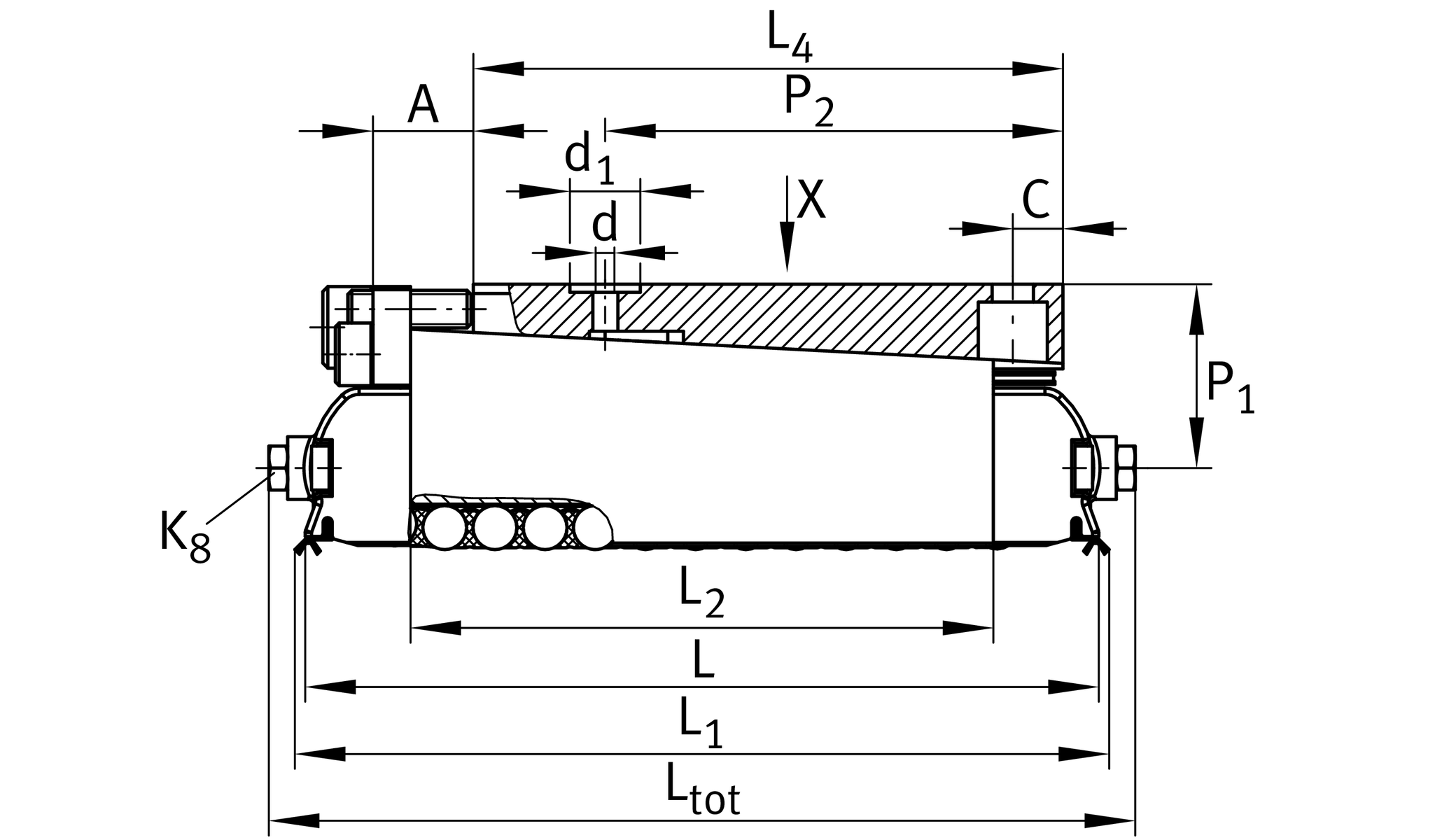

Mounting dimensions
L
105 mm
L1
111 mm
L3
78.5 mm
L4
79 mm
a
0.3 mm
LW
10 mm
C
5 mm
E
45 mm
Mounting dimension
F
19 mm

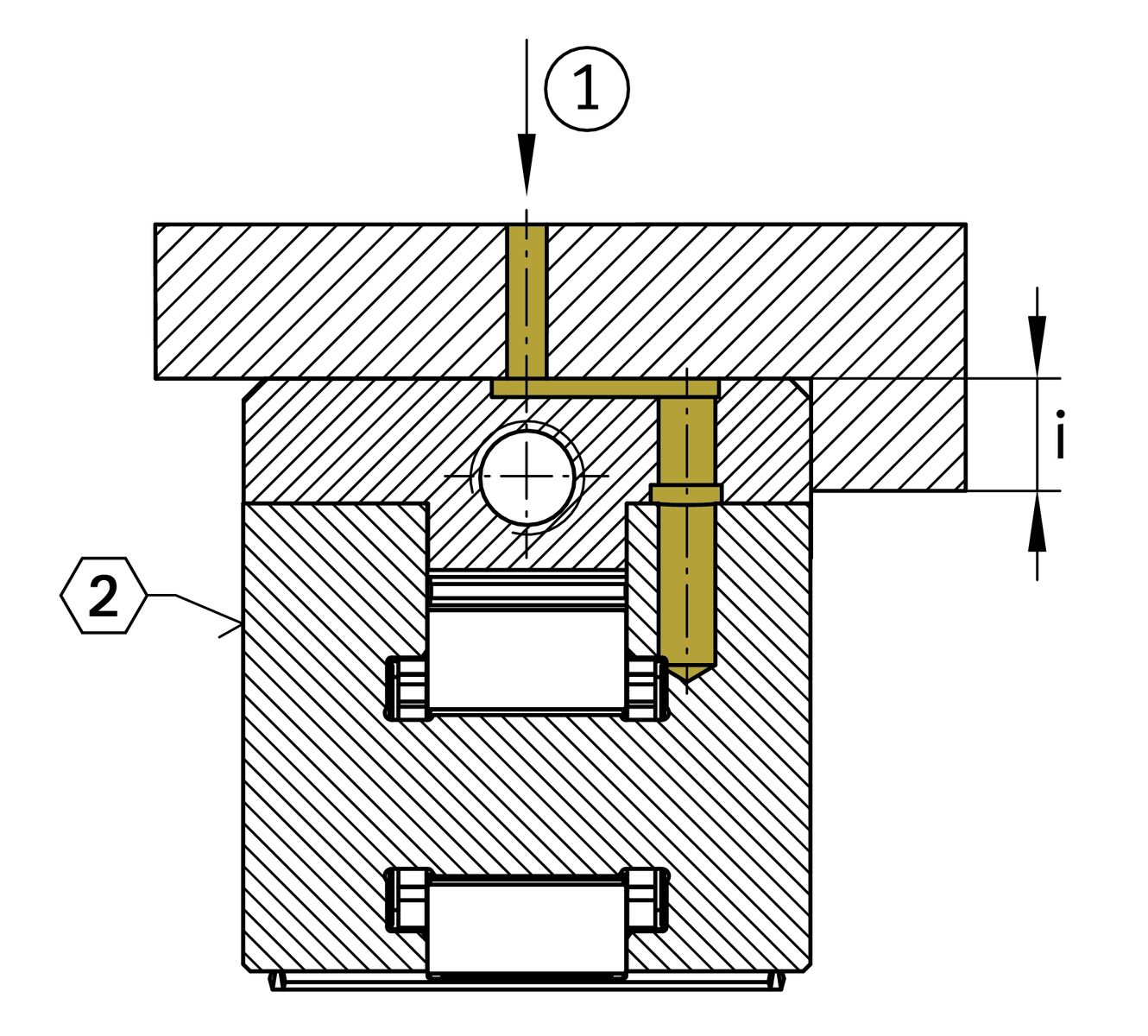

i
4 mm
Mounting dimension
P1
21 mm
d1
12 mm
P2
53 mm
P3
9 mm
d
2.5 mm
K
M6
Lubrication connector DIN3405-A
S1
3 mm
Hexagon socket adjusting screw 1
S2
2 mm
Hexagon socket counter forcing screw 1
K
M4
Size thread k DIN
K MA
5 Nm
Tightening torque fixing screws 2
D2
4.5 mm
Amax
7 mm
Screw stroke A
Delta hmax
0.37 mm
Adjustment maximum
0.023 mm
Adjustment screw revolution

Related products
UG6628, UGN6628, UZ6628, UZN6628, UFK3210, UFB4710
suitable Guide Rails

Your current product variant
Size code30105
SuffixKSwith end face lubrication connectors
