Main Dimensions & Performance Data

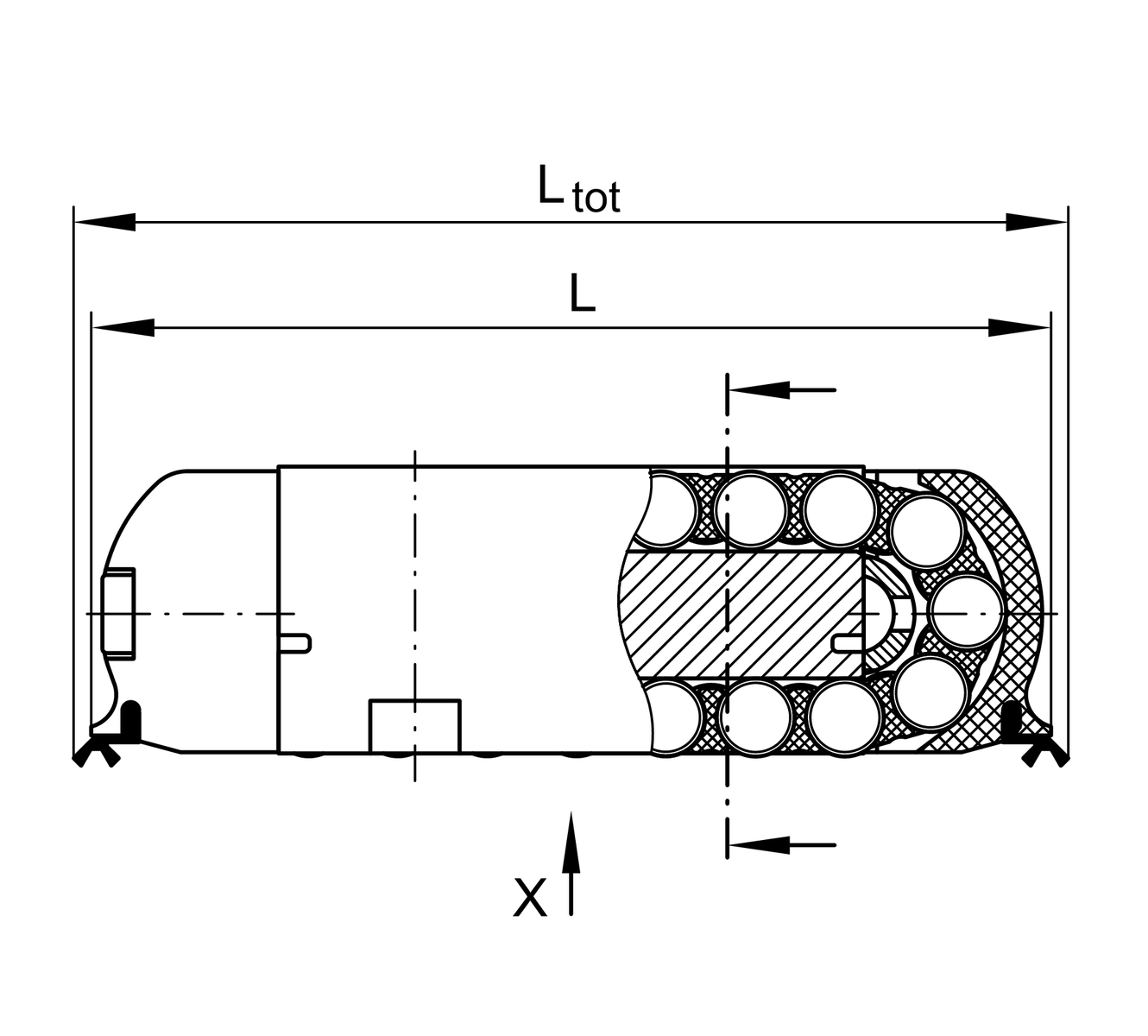

| Ltot | 132 mm | total length |
| L | 132.7 mm | |
| B | 52 mm | Width |
| H | 38 mm | Height |
| C | 179,000 N | Basic dynamic load rating |
| C0 | 275,000 N | Basic static load rating |
| ≈m | 1.27 kg | Weight |

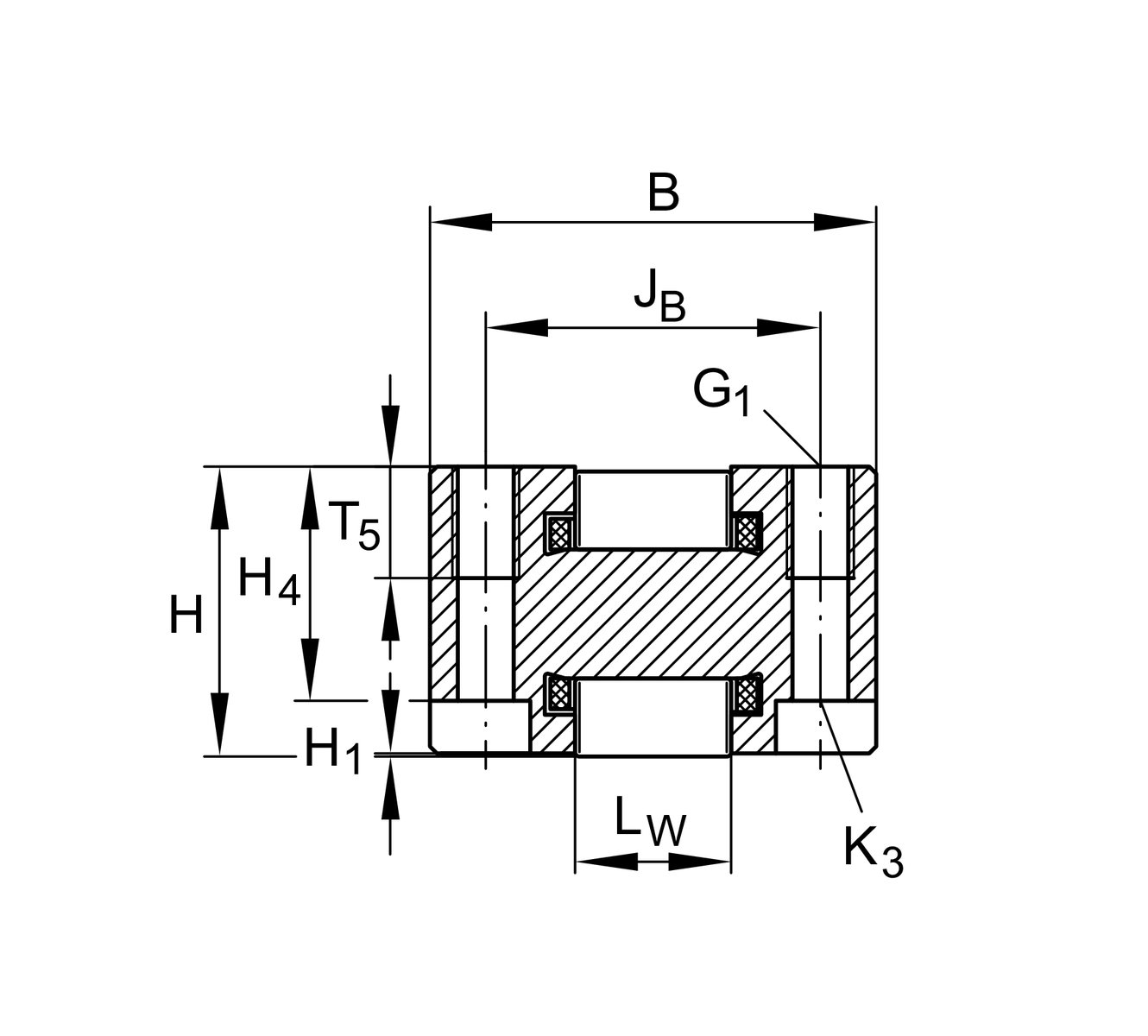

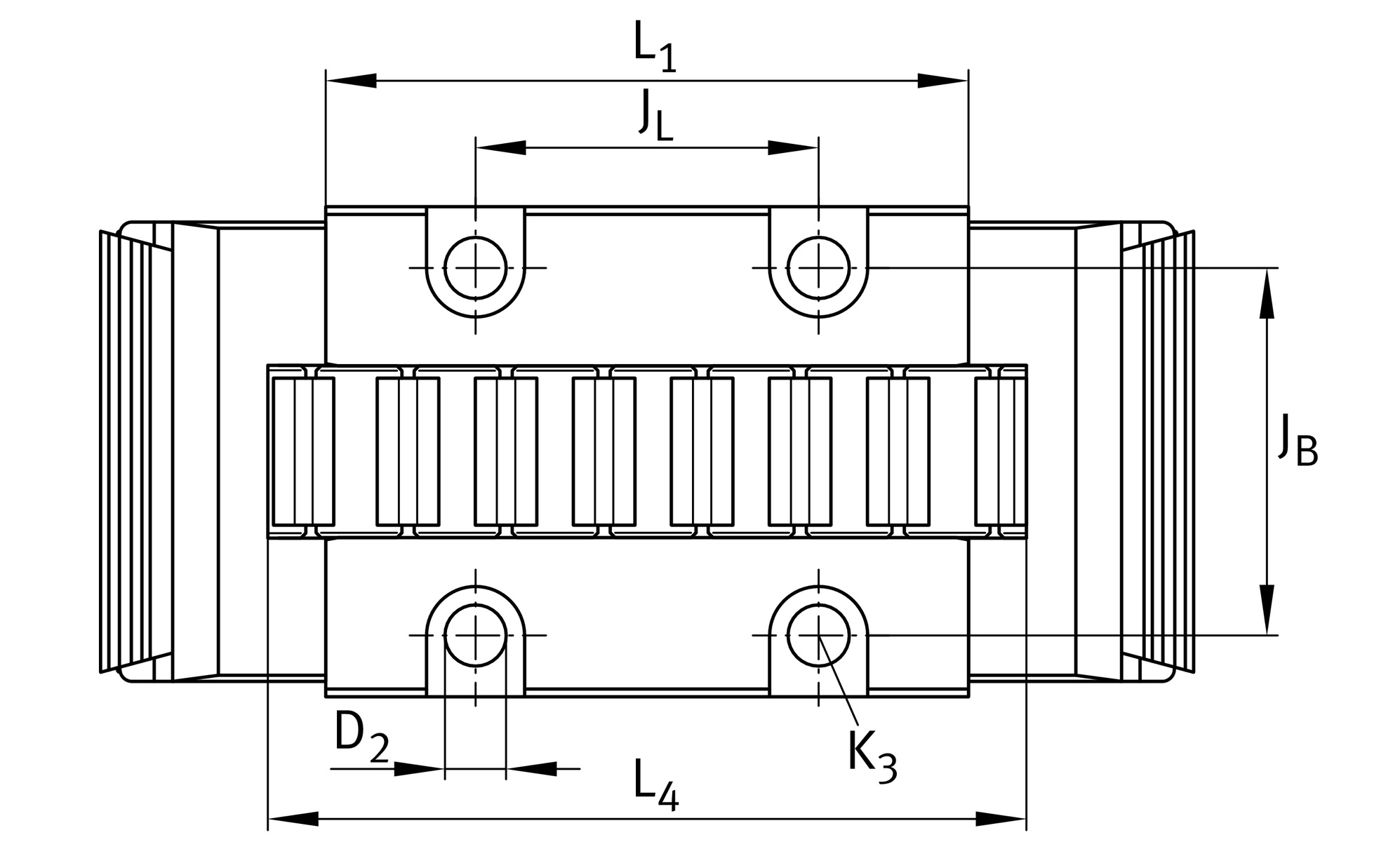

Mounting dimensions
| L1 | 84.7 mm | Mounting dimension |
| JB | 41 mm | Mounting dimension |
| JL | 51 mm | |
| H1 | 0.2 mm | |
| L4 | 100 mm | minimum support length 1 |
| LW | 20 mm | |
| H4 | 31 mm | |
| T5 | 14.2 mm | |
| G1 | M8 | fixing screws top (DIN ISO 4762-12.9) |
| G1 MA | 41 Nm | Tightening torrque fixing screws |
| K3 | M6 | fixing screws below (DIN ISO 4762-12.9) |
| K3 MA max | 17 Nm | Tightening torque fixing screws 2 |
| D2 | 6.9 mm | |
6 mm |
Related products
VUS38134-A | Adjustment gib | |
UG12553, UGN12553-A, UZ12553, UZN12553-A, UFK6412, UFB7812 | suitable Guide rail |
Your current product variant
| Size code | 38134 |
