Main Dimensions & Performance Data
| d | 17 mm | Bore diameter |
| D | 35 mm | Outside diameter |
| B | 14 mm | Width |
| Cr | 9,100 N | Basic dynamic load rating, radial |
| C0r | 6,100 N | Basic static load rating, radial |
| Cur | 315 N | Fatigue load limit, radial |
| nG | 12,300 1/min | Limiting speed |
| ≈m | 0.056 kg | Weight |
Mounting dimensions
| da min | 19 mm | Minimum diameter shaft shoulder |
| Da max | 33 mm | Maximum diameter of housing shoulder |
| ra max | 0.3 mm | Maximum fillet radius |

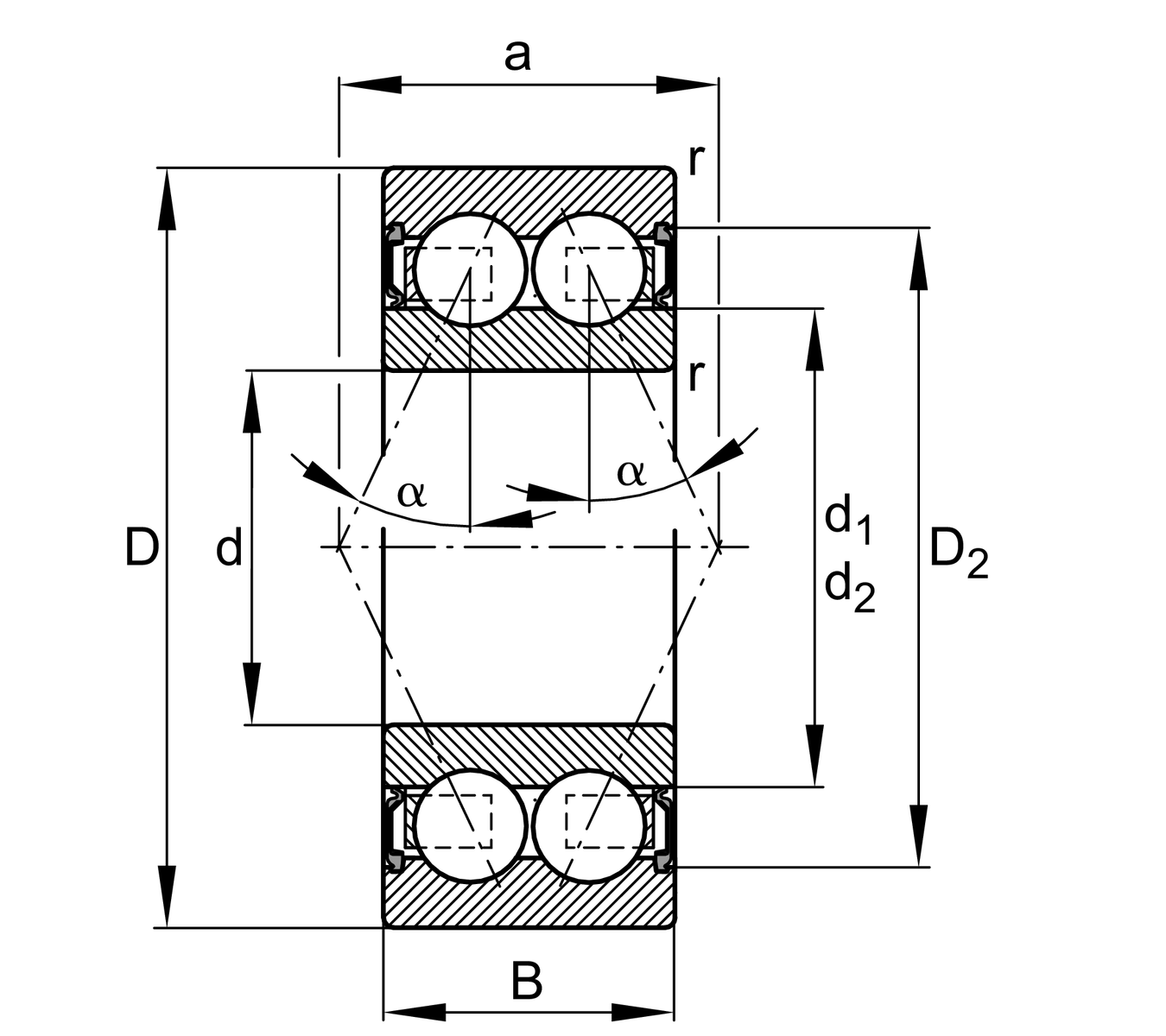

Dimensions
| rmin | 0.3 mm | Minimum chamfer dimension |
| D1 | 29.17 mm | Shoulder diameter outer ring |
| D2 | 29.75 mm | Caliber diameter outer ring |
| d1 | 23.1 mm | Shoulder diameter inner ring |
| d2 | 21.08 mm | Caliber diamter inner ring |
| a | 17.1 mm | Distance between the apexes of the pressure cones |
| α | 25 ° | Contact angle |
Temperature range
| Tmin | -20 °C | Operating temperature min. |
| Tmax | 100 °C | Operating temperature max. |
Your current product variant
| Design variant | B | Bearing without filling slot |
| Sealing | 2RS | Contact seal on both sides |
| Cage | TVH | solid cage made of glass-fiber reinforced polyamid PA66 |
| Tolerance class | PN | Normal (PN) |
| Dimensional / heat stabilization | SN | Rings dimensional stabilized up to 120° |
| Lubricant | GA14 | Ball bearing grease, low noise, standard for D<=62mm |
| Axial internal clearance | CN | Group N (CN) |
