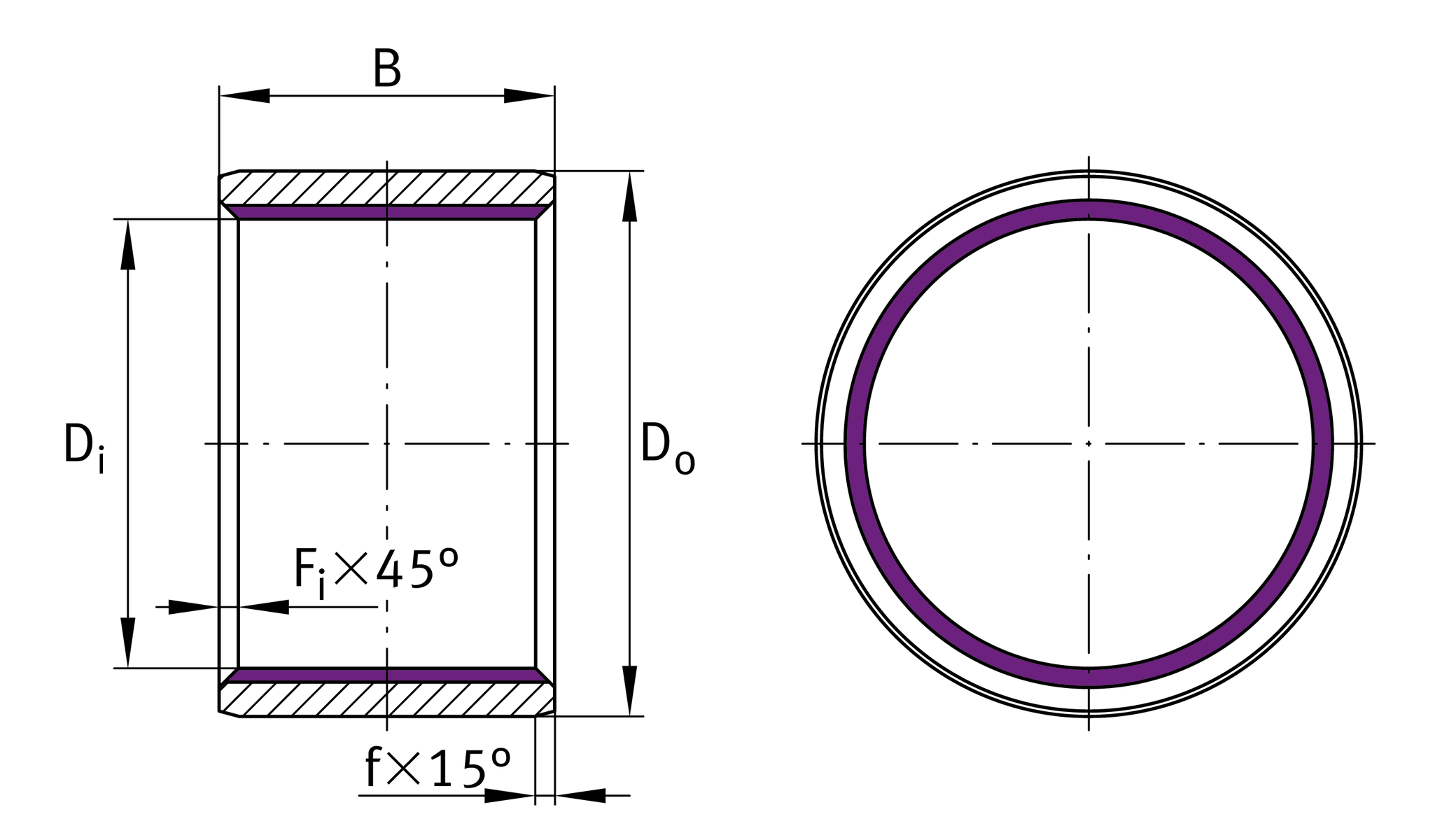

Main Dimensions & Performance Data
| Di | 80 mm | Inner diameter |
| Do | 90 mm | Outer diameter |
| B | 80 mm | Width |
| Cr | 1,920,000 N | Basic dynamic load rating, radial |
| C0r | 1,920,000 N | Basic static load rating, radial |
| ≈m | 0.749 kg | Weight |
Dimensions
| f | 45 ° | Chamfer angle bore diameter |
| f | 15 ° | Chamfer angle outside diameter |
| FiUT | -0.4 mm | Inner edge break, lower tolerance |
| FiOT | 0.4 mm | Inner edge break, upper tolerance |
| f | 3 mm | Outer chamfer |
| Fi min | 0.4 mm | Inner edge break, min. |
| Fi max | 1.2 mm | Inner edge break, max. |
| Di OT | 0.046 mm | Inner diameter, upper tolerance |
| Do OT | 0.072 mm | Outside diameter, upper tolerance |
| Di T | H8 | Inner diameter, tolerance |
| Do T | p7 | Outer diameter, tolerance |
| Di UT | 0 mm | Inner diameter, lower tolerance |
| Do UT | 0.037 mm | Outside diameter, lower tolerance |
| BT | h12 | Width tolerance |
| BUT | -0.3 mm | Width, lower tolerance |
| BOT | 0 mm | Width, upper tolerance |
| fOT | 1 mm | Outer chamfer, upper tolerance |
| fUT | -1 mm | Outer chamfer, lower tolerance |
| Fi | 0.8 mm | Inner edge break |
Temperature range
| Tmin | -50 °C | Operating temperature min. |
| Tmax | 150 °C | Operating temperature max. |
Your current product variant
| Sealing | Without | Not sealed |
| Fabric | ELGOGLIDE | ELGOGLIDE |
| Material back | Steel |
