Main Dimensions & Performance Data
| D | 40 mm | Outside diameter |
| d1 | 16 mm | Fit diameter of roller stud / stud |
| B | 23.8 mm | Width |
| Cr w | 7,000 N | Basic dynamic load rating, radial |
| C0r w | 3,450 N | Basic static load rating, radial |
| Cur w | 175 N | Fatigue load limit, radial |
| nD G | 8,500 1/min | Speed on permanent grease lubrication |
| ≈m | 0.08 kg | Weight |

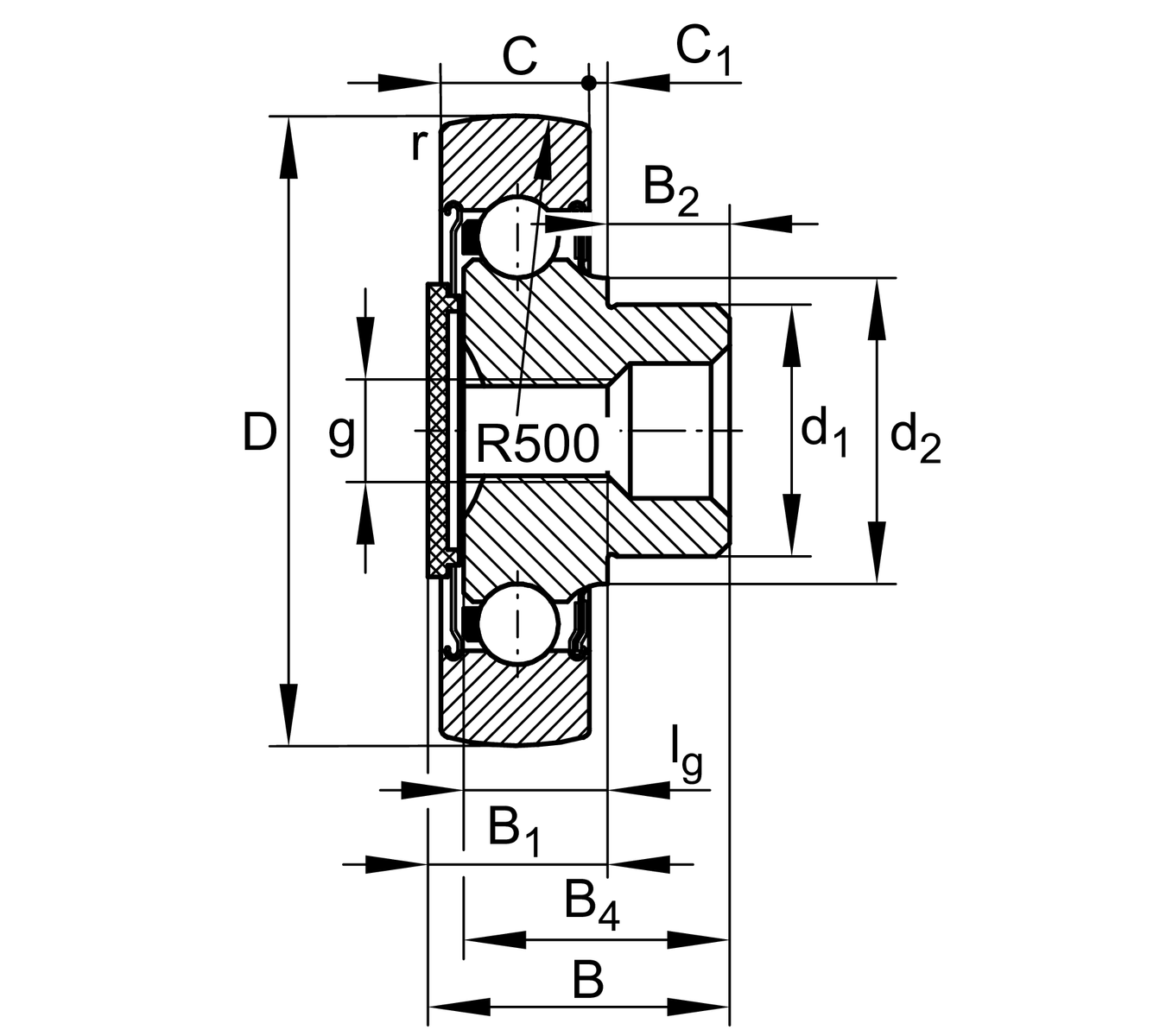

Dimensions
| B1 max | 14 mm | Maximum witdh of thrust washer |
| B2 | 10 mm | Bolt/stud length effectively |
| B4 | 21.5 mm | Length total |
| C | 11 mm | Width, outer ring |
| C1 | 2 mm | Protrusion outer ring to thrust washer |
| d2 | 20 mm | Stop diameter of thrust washer |
| rmin | 0.6 mm | Minimum chamfer dimension |
| g | M8 | Thread inside |
| lg | 15 mm | Thread length (inner) |
| R | 500 mm | Radius of outer ring outside profile |
Your current product variant
| Sealing | DRS | Lip seal on stud side, axial sealing action Sealing shield with cover on the end face |
| Outer Ring profile | R500 | R500 |
| Relubrication feature | Without | Without |
| Assembling aid head | SL | Mounting slot |
