Main Dimensions & Performance Data
| d | 15 mm | Bore diameter |
| D | 45 mm | Outside diameter |
| H | 53 mm | Hight |
| Ca | 24,900 N | Basic dynamic load rating, axial |
| C0a | 53,000 N | Basic static load rating, axial |
| Cr | 13,000 N | Basic dynamic load rating, radial |
| C0r | 17,500 N | Basic static load rating, radial |
| Cua | 7,500 N | Fatigue load limit, axial |
| Cur | 2,650 N | Fatigue load limit, radial |
| nG Oil | 8,500 1/min | Limiting speed for oil lubrication |
| nG Grease | 2,200 1/min | Limiting speed for grease lubrication |
| MRL | 0.35 Nm | Bearing friction torque |
| ≈m | 306.1 g | Weight |

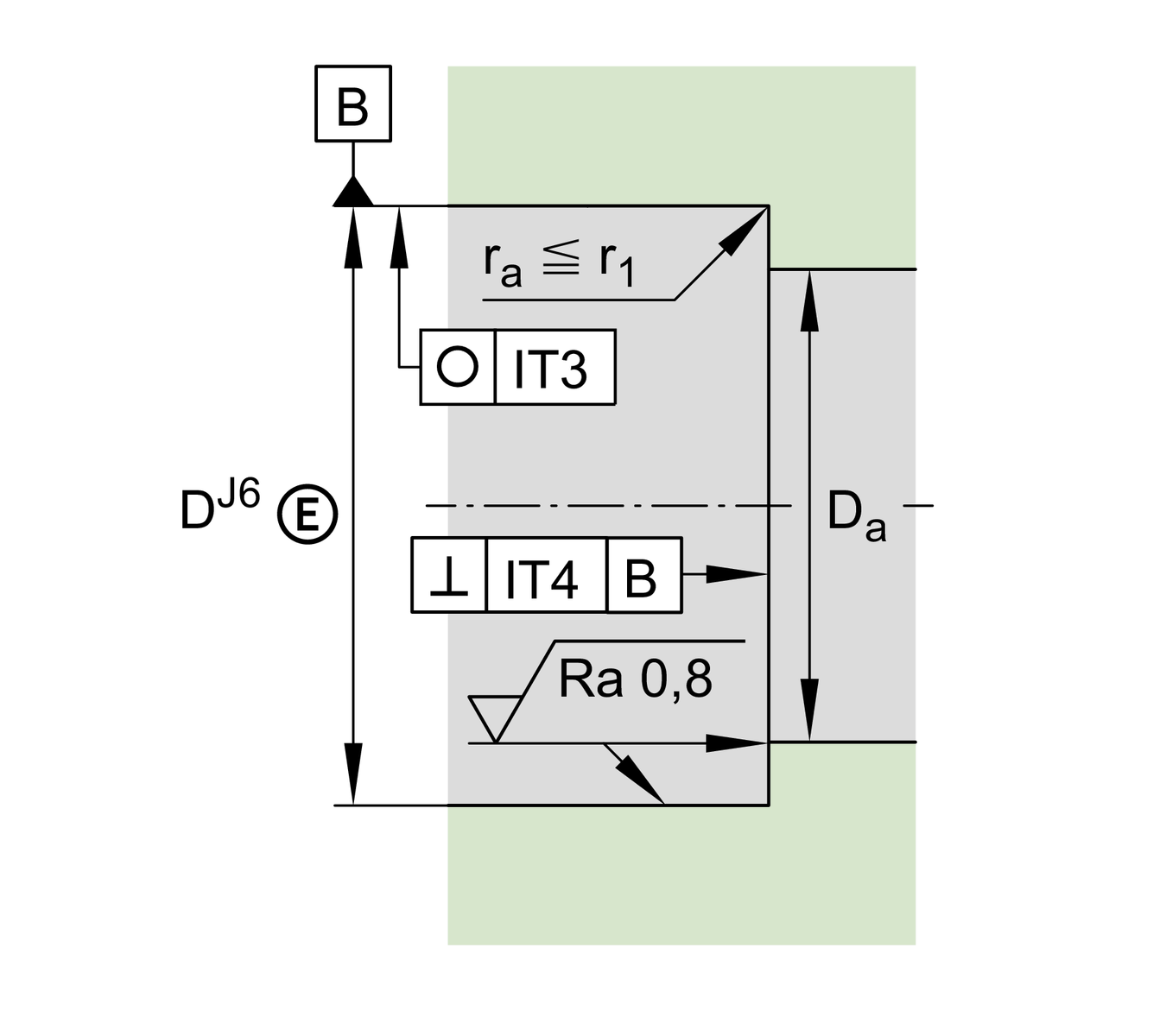

Mounting dimensions
| Da max | 36 mm | Maximum diameter of housing shoulder |
| da min | 22 mm | Minimum diameter shaft shoulder |

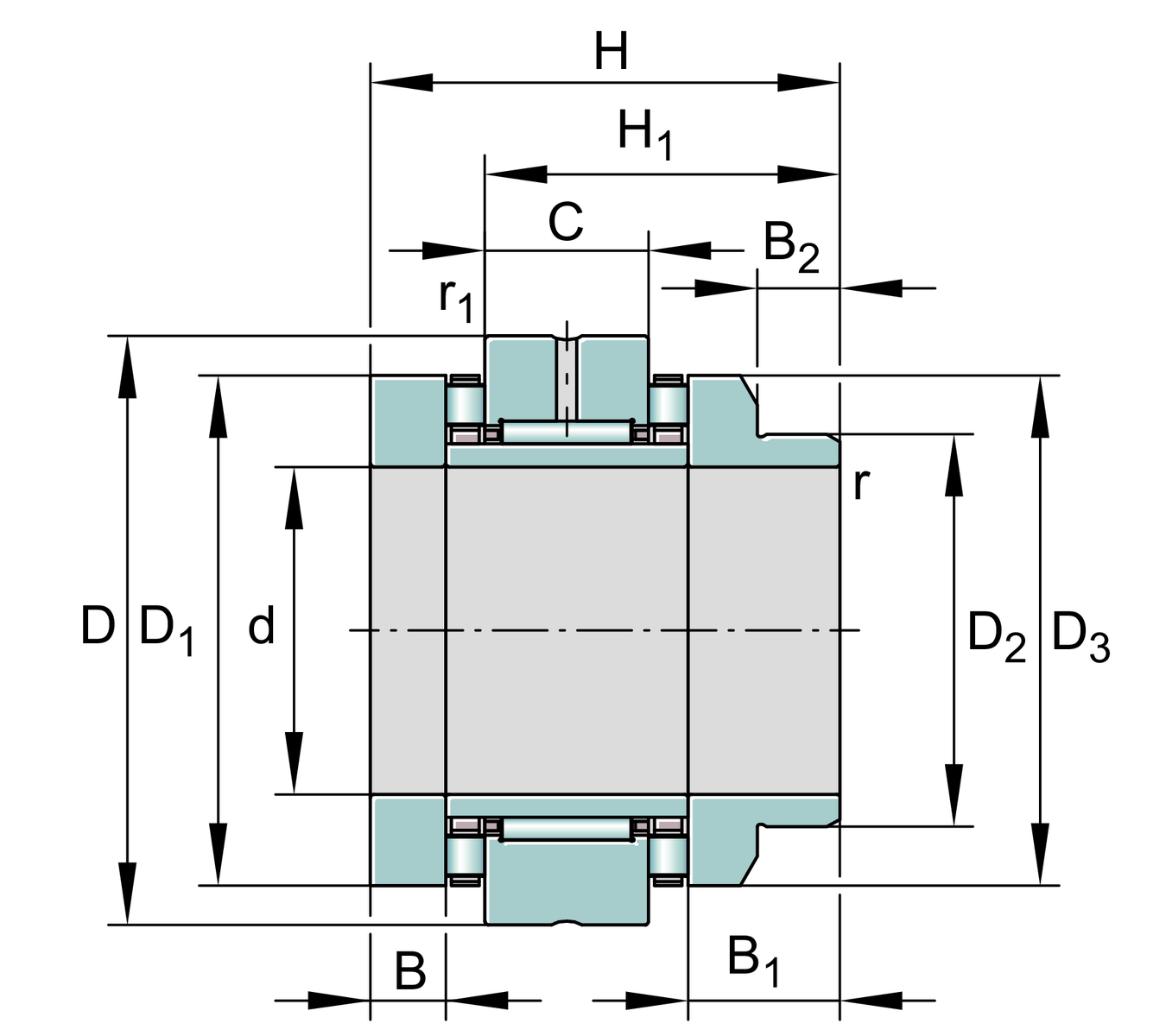

Dimensions
| H1 | 41 mm | Height outer ring over wave washer |
| C | 16 mm | Width, outer ring |
| D1 | 35 mm | Rip diameter shaft washer |
| D2 | 24 mm | Heeldiameter wave washer long |
| D3 | 34 mm | Outside diameter wave washer long |
| B | 7.5 mm | Width, inner ring |
| B1 | 20.5 mm | Width wave washer long |
| B2 | 11 mm | Width heel wave washer long |
| rmin | 0.3 mm | Minimum chamfer dimension |
| r1 min | 0.6 mm | Minimum chamfer dimension |
Temperature range
| Tmin | -30 °C | Operating temperature min. |
| Tmax | 120 °C | Operating temperature max. |
Additional information
| caL | 1,400 N/µm | Rigidity axial |
| ckL | 110 Nm/mrad | Tilting stiffness |
| Mm | 274 kg*cm2 | Mass moment of inertia |
1 µm | Axial runout | |
| radial | ZMA15/33 | Recommended INA precision locknut for radial locking (not included) |
| axial | AM15 | Recommended INA precision locknut for axial locking (not included) |
| MA | 10 Nm | Tightening torque nut |
6,506 N | Required locknut force | |
24X35X7 | Rotary shaft seal to DIN 3760 (not included) |
Your current product variant
| Cage | TV | Plastic Cage made from PA66 |
| Locating Feature , bearing outer ring | L | Stepped shaft locating washer extended on one side |
