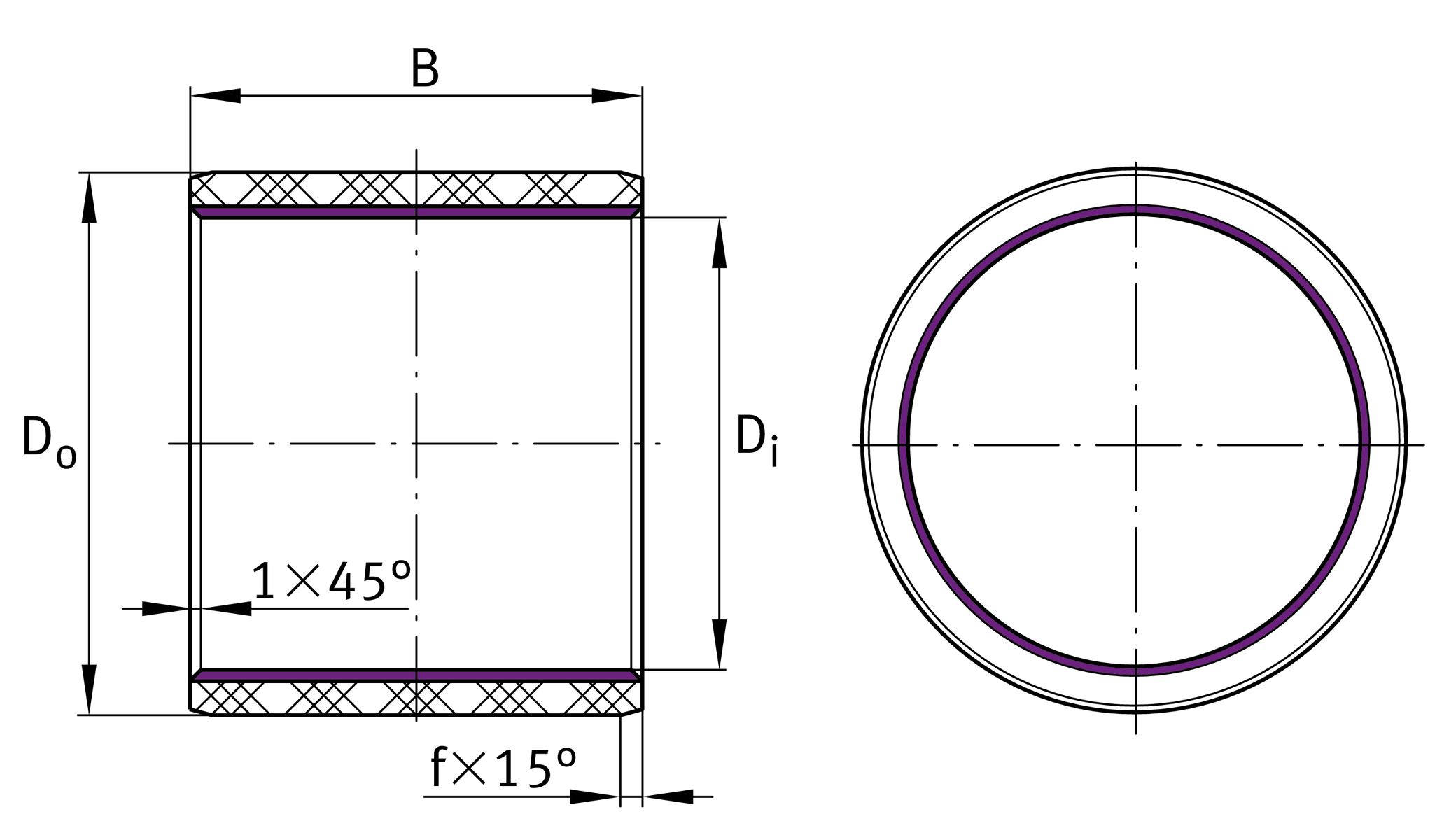

Main Dimensions & Performance Data
| Di | 85 mm | Inner diameter |
| Do | 95 mm | Outer diameter |
| B | 80 mm | Width |
| Cr | 952,000 N | Basic dynamic load rating, radial |
| C0r | 1,360,000 N | Basic static load rating, radial |
| ≈m | 201.69 g | Weight |
Dimensions
| f | 45 ° | Chamfer angle bore diameter |
| f | 15 ° | Chamfer angle outside diameter |
| f | 3 mm | Outer chamfer |
| Fi min | 1 mm | Inner edge break, min. |
| Di OT | 0.31 mm | Inner diameter, upper tolerance |
| Do OT | 0.125 mm | Outside diameter, upper tolerance |
| Di T | C10 | Inner diameter, tolerance |
| Do T | s8 | Outer diameter, tolerance |
| Di UT | 0.17 mm | Inner diameter, lower tolerance |
| Do UT | 0.071 mm | Outside diameter, lower tolerance |
| BT | h13 | Width tolerance |
| BUT | -0.46 mm | Width, lower tolerance |
| BOT | 0 mm | Width, upper tolerance |
| fOT | 1 mm | Outer chamfer, upper tolerance |
| fUT | -1 mm | Outer chamfer, lower tolerance |
| Fi | 1 mm | Inner edge break |
Temperature range
| Tmin | -20 °C | Operating temperature min. |
| Tmax | 130 °C | Operating temperature max. |
Your current product variant
| Sealing | Without | Not sealed |
| Material sliding Layer | ELGOTEX | ELGOTEX filament wound bushes, maintenance-free |
| Material back | Without |
