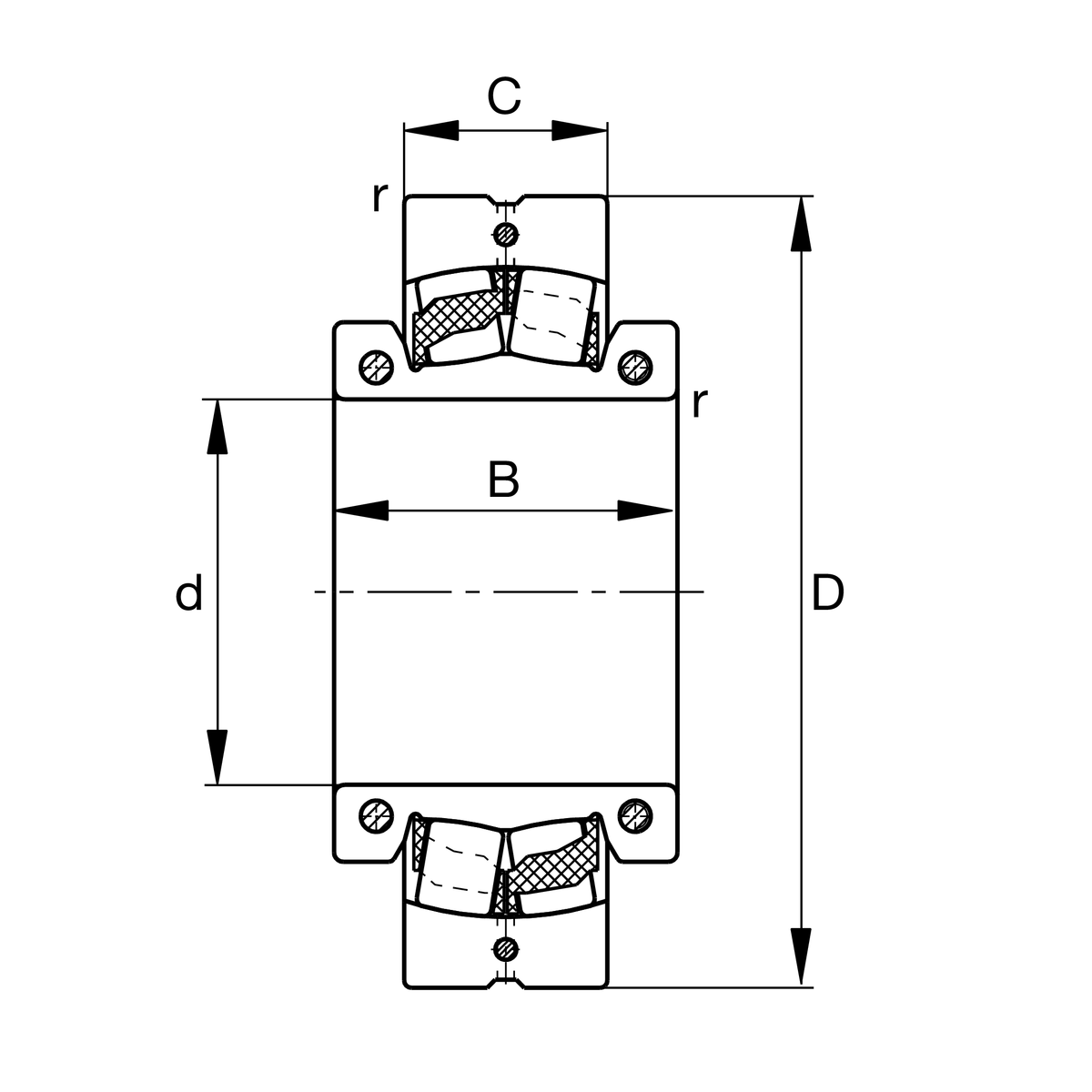

Main Dimensions & Performance Data
| d | 55 mm | Bore diameter |
| D | 110 mm | Outside diameter |
| C | 28 mm | Width, outer ring |
| Cr | 110,000 N | Basic dynamic load rating, radial |
| C0r | 130,000 N | Basic static load rating, radial |
| Cur | 13,500 N | Fatigue load limit, radial |
| nG | 3,150 1/min | Limiting speed |
| Fa max | 5,400 N | Maximum axial load |
| ≈m | 1.47 kg | Weight |
Mounting dimensions
| Mi | 8.5 Nm | Tightening torque clamping screw |
| Ma | 1.5 Nm | Tightening torque clamping screw |
Dimensions
| rmin | 1.5 mm | Minimum chamfer dimension |
| B | 52 mm | Width, inner ring |
Temperature range
| Tmin | -30 °C | Operating temperature min. |
| Tmax | 120 °C | Operating temperature max. |
Calculation factors
| e | 0.21 | Limiting value of Fa/Fr for the applicability of diff. Values of factors X and Y |
| Y1 | 3.17 | Dynamic axial load factor |
| Y2 | 4.72 | Dynamic axial load factor |
| Y0 | 3.1 | Static axial load factor |
Additional information
22212K | Bearing designation | |
H312 | Adapter sleeve | |
SNV110 | Housing |
Your current product variant
| Design | E1 | without central rip |
| Bore type | Z | Cylindrical |
| Cage | TVPA | Plastic cage |
| Radial internal clearance | CN (Group N) | Normal internal clearance |
| Relubrication feature | Standard | |
| Splitted | SM | Split bearing metric |
