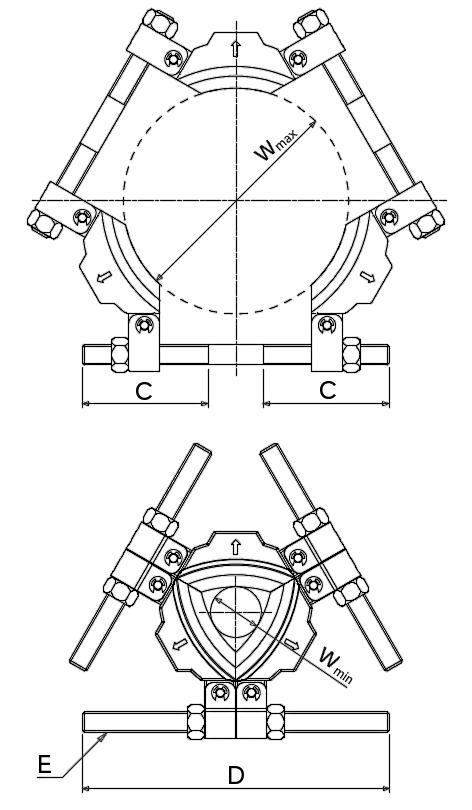

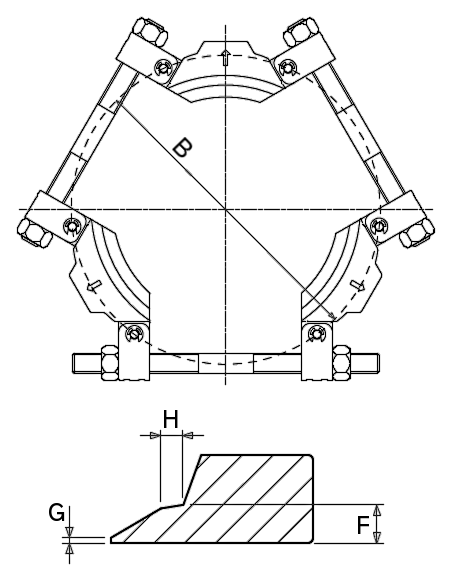

Dimensions
| wmin | 26 mm | Grip width, min. |
| wmax | 160 mm | Grip width, max. |
| Bmax | 216 mm | |
| C | 105 mm | |
| D | 240 mm | |
| E | 5/8"-11 UNC | |
| F | 8 mm | |
| G | 2 mm | |
| H | 6.5 mm | |
| FZ max | 55 kN | max. permissible pulling force |
| ≈m | 3.5 kg | Weight |
Additional information
in combination with puller: HP/HSP43, 63 | Usability |
Your current product variant
| Series | TSP | Series TSP |
