Main Dimensions & Performance Data
| d | 90 mm | Bore diameter |
| Ew | 140.61 mm | Outer envelope circle |
| B | 40 mm | Width |
| Cr | 285,000 N | Basic dynamic load rating, radial |
| C0r | 365,000 N | Basic static load rating, radial |
| Cur | 54,000 N | Fatigue load limit, radial |
| nG | 2,700 1/min | Limiting speed |
| ≈m | 1.939 kg | Weight |
Mounting dimensions
| da min | 110 mm | Minimum diameter shaft shoulder |
| X | 28 mm | raceway width |

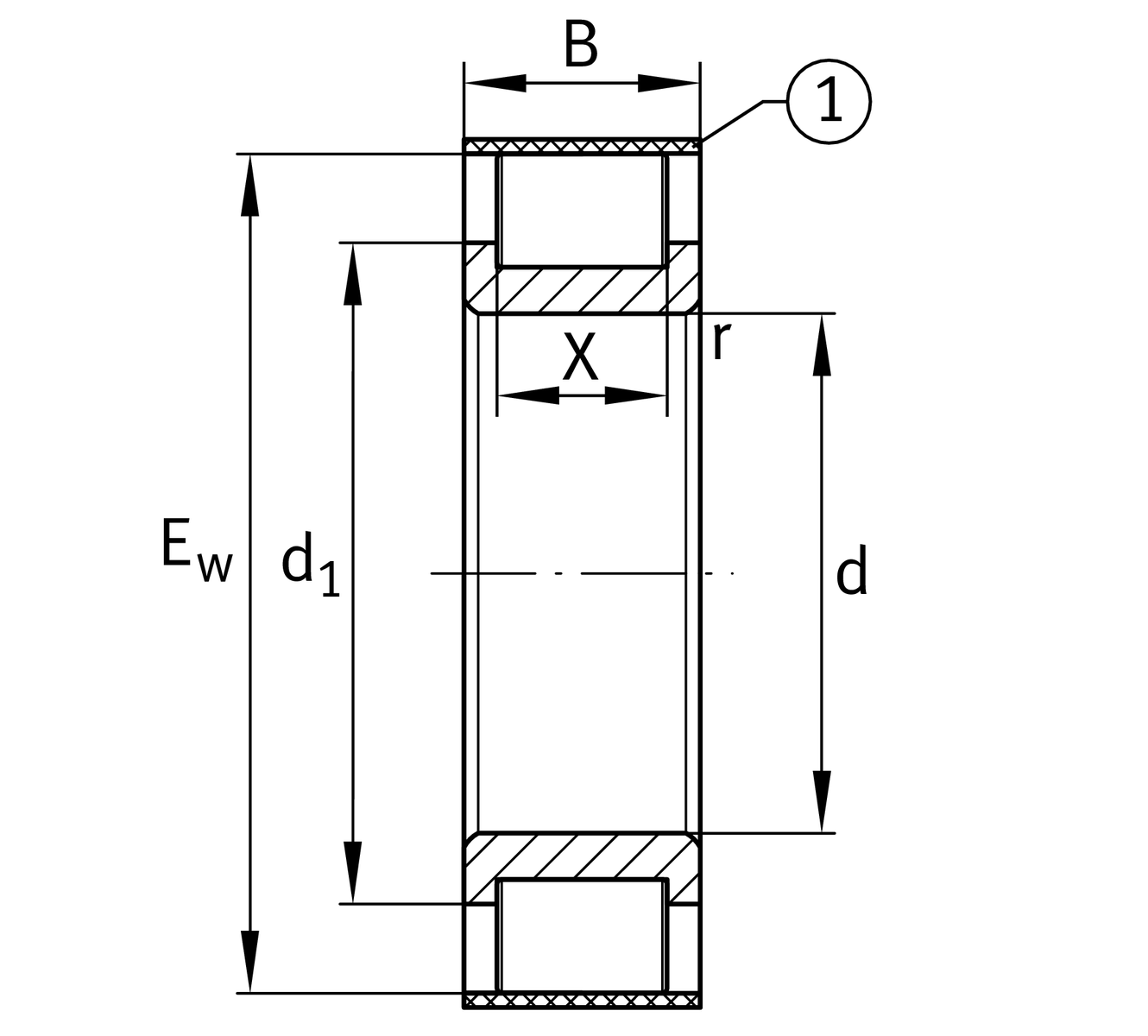

Dimensions
| rmin | 2 mm | Minimum chamfer dimension |
| d1 | 110 mm | Maximum rib diameter inner ring |
| TK | 121.61 mm | pitch circle |
Temperature range
| Tmin | -30 °C | Operating temperature min. |
| Tmax | 120 °C | Operating temperature max. |
Your current product variant
| Design | A | Internal Variant Cage A |
| Number of rolling element rows | 1 | Single-row design |
