Main Dimensions & Performance Data
| d | 15 mm | Bore diameter |
| D | 32 mm | Outside diameter |
| B | 8 mm | Width |
| Cr | 5,590 N | Basic dynamic load rating, radial |
| C0r | 2,840 N | Basic static load rating, radial |
| Cur | 191 N | Fatigue load limit, radial |
| nG | 28,500 1/min | Limiting speed |
| nϑr | 20,000 1/min | Reference speed |
| ≈m | 27 g | Weight |

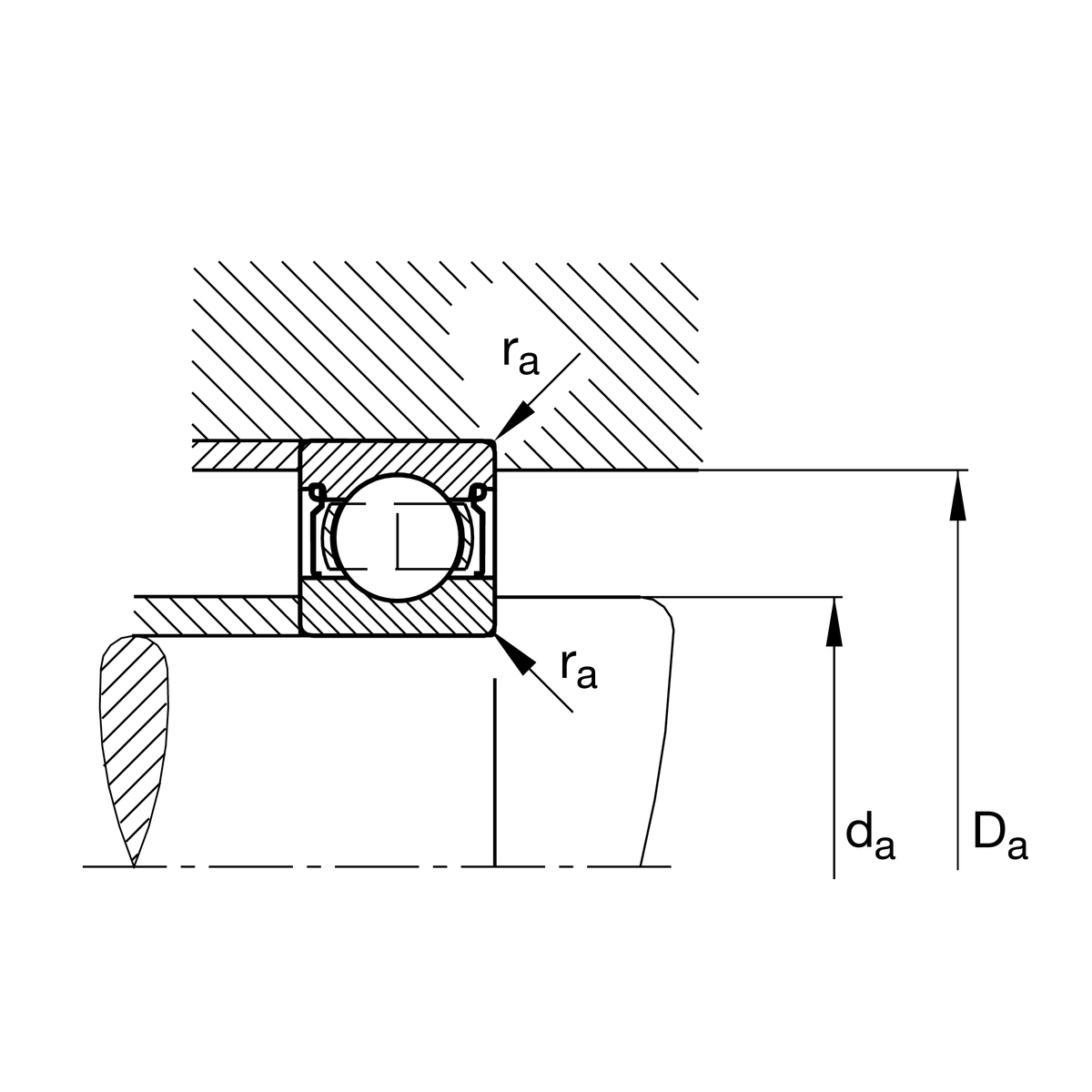

Mounting dimensions
| da min | 17 mm | Minimum diameter shaft shoulder |
| Da max | 30 mm | Maximum diameter of housing shoulder |
| ra max | 0.3 mm | Maximum fillet radius |

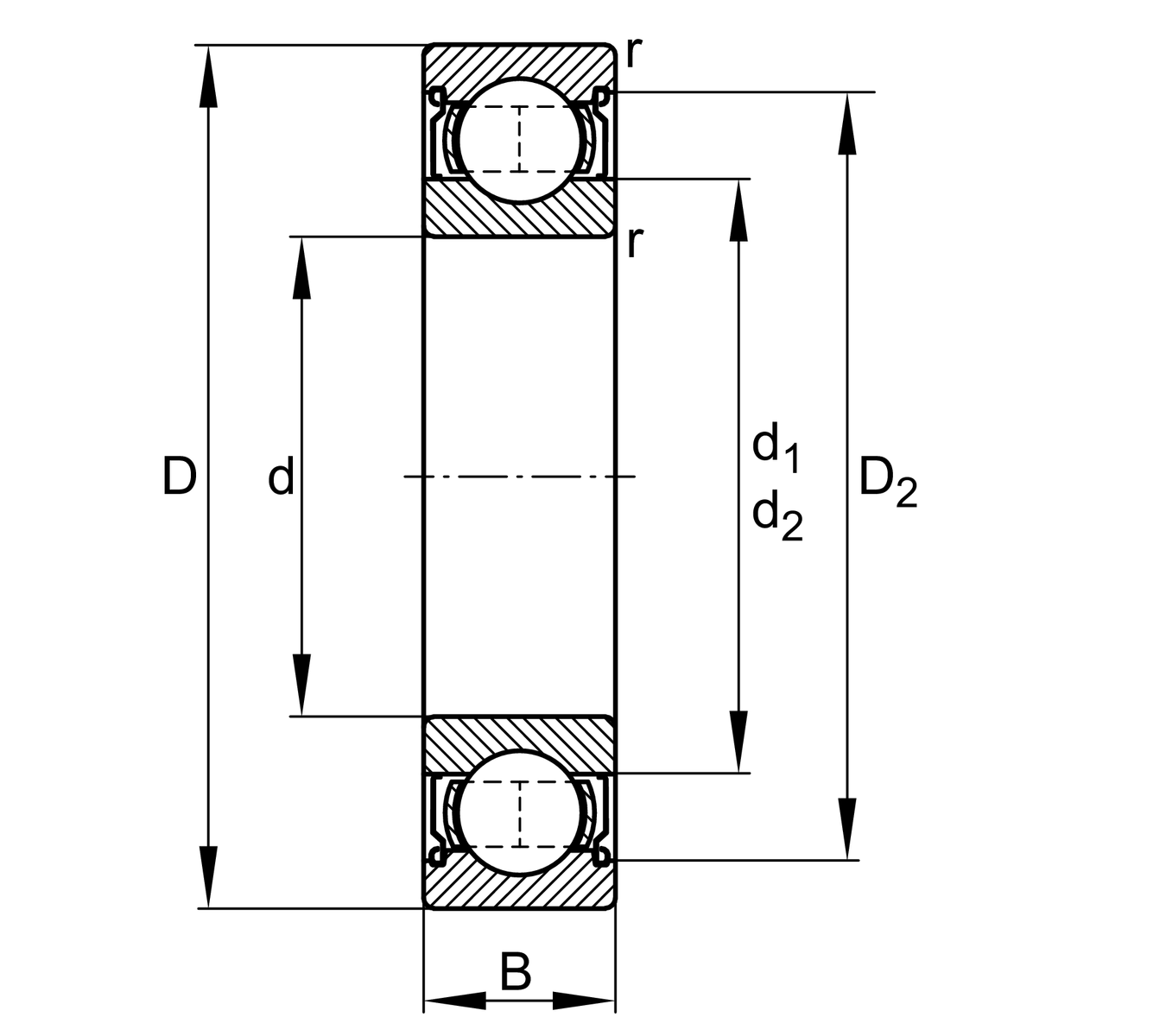

Dimensions
| rmin | 0.3 mm | Minimum chamfer dimension |
| D1 | 26.8 mm | Shoulder diameter outer ring |
| D2 | 28.8 mm | Caliber diameter outer ring |
| d1 | 20.5 mm | Shoulder diameter inner ring |
Temperature range
| Tmin | -20 °C | Operating temperature min. |
| Tmax | 120 °C | Operating temperature max. |
Calculation factors
| f0 | 14 | Calculation factor |
Your current product variant
| Changed internal design | A | Design variant A |
| Sealing | 2Z | Non-contact shield on both sides |
| Cage | JN | steel sheet metal |
| Tolerance class | PN | Normal (PN) |
| Dimensional / heat stabilization | SN | Rings dimensional stabilized up to 120° |
| Lubricant | GA14 | Ball bearing grease, low noise, standard for D<=62mm |
| Bore type | Z | Cylindrical |
| Radial internal clearance | C3 (Group 3) | Internal clearance larger than CN |
