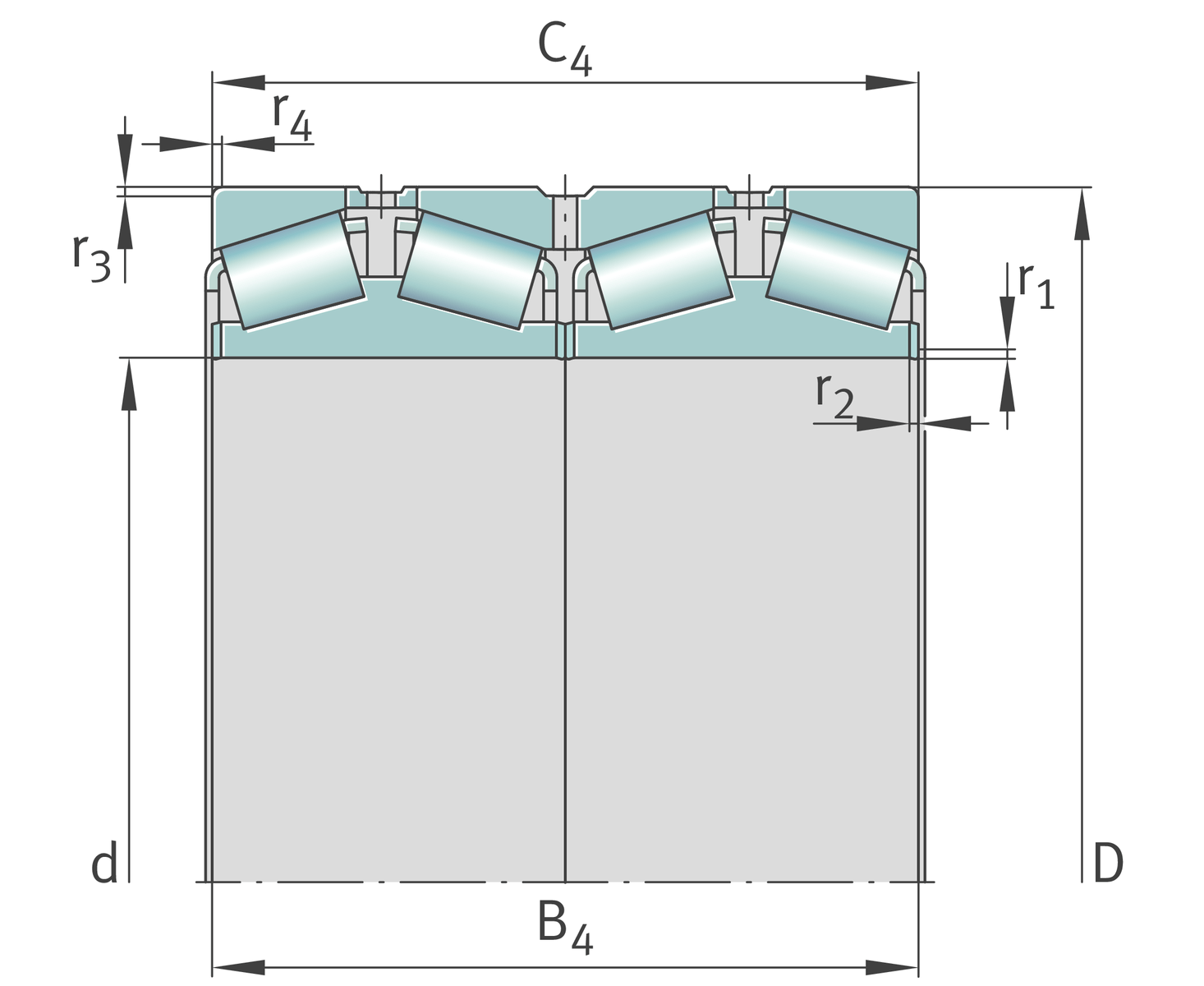

Main Dimensions & Performance Data
| d | 347.662 mm | Bore diameter |
| D | 469.9 mm | Outside diameter |
| B4 | 292.1 mm | Width of bearing inside |
| C4 | 292.1 mm | Width of bearing outside |
| Cr | 4,200,000 N | Basic dynamic load rating, radial |
| C0r | 8,700,000 N | Basic static load rating, radial |
| Cur | 870,000 N | Fatigue load limit, radial |
| ≈m | 140.5 kg | Weight |
Dimensions
| r1, 2 min | 3.3 mm | Minimum chamfer |
| r3, 4 min | 3.3 mm | Minimum chamfer |
Temperature range
| Tmin | -30 °C | Operating temperature min. |
| Tmax | 120 °C | Operating temperature max. |
Calculation factors
| e | 0.31 | Limiting value of Fa/Fr for the applicability of diff. Values of factors X and Y |
| Y1 | 2.16 | Dynamic axial load factor |
| Y2 | 3.22 | Dynamic axial load factor |
| Y0 | 2.12 | Static axial load factor |
Your current product variant
| Tolerance class | ABMA4A | Class 4 (ANSI/ABMA 19.2:2013), improved tolerances |
| Heat treatment | Standard | Case hardened |
| Cage | Standard | Sheet steel cage, roller-guided |
| Axial internal clearance | A300-400 | Axial internal clearance between 300 and 400 µm |
| Quality level | Standard | |
| Matched arrangement | TQO | TQO arrangement |
