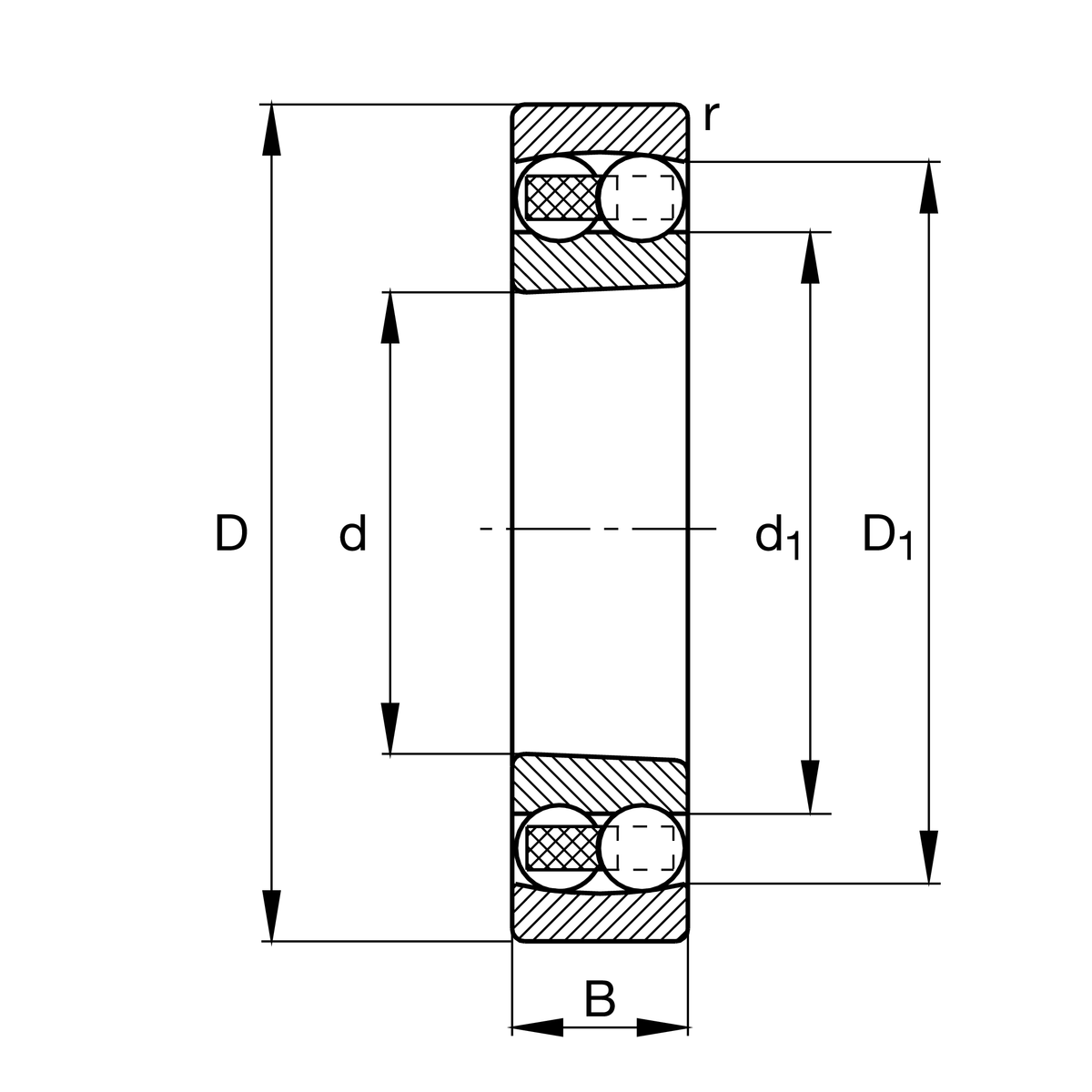

Main Dimensions & Performance Data
| d | 70 mm | Bore diameter |
| D | 125 mm | Outside diameter |
| B | 24 mm | Width |
| Cr | 35,000 N | Basic dynamic load rating, radial |
| C0r | 13,800 N | Basic static load rating, radial |
| Cur | 880 N | Fatigue load limit, radial |
| nG | 6,200 1/min | Limiting speed |
| nϑr | 5,900 1/min | Reference speed |
| ≈m | 1.24 kg | Weight |

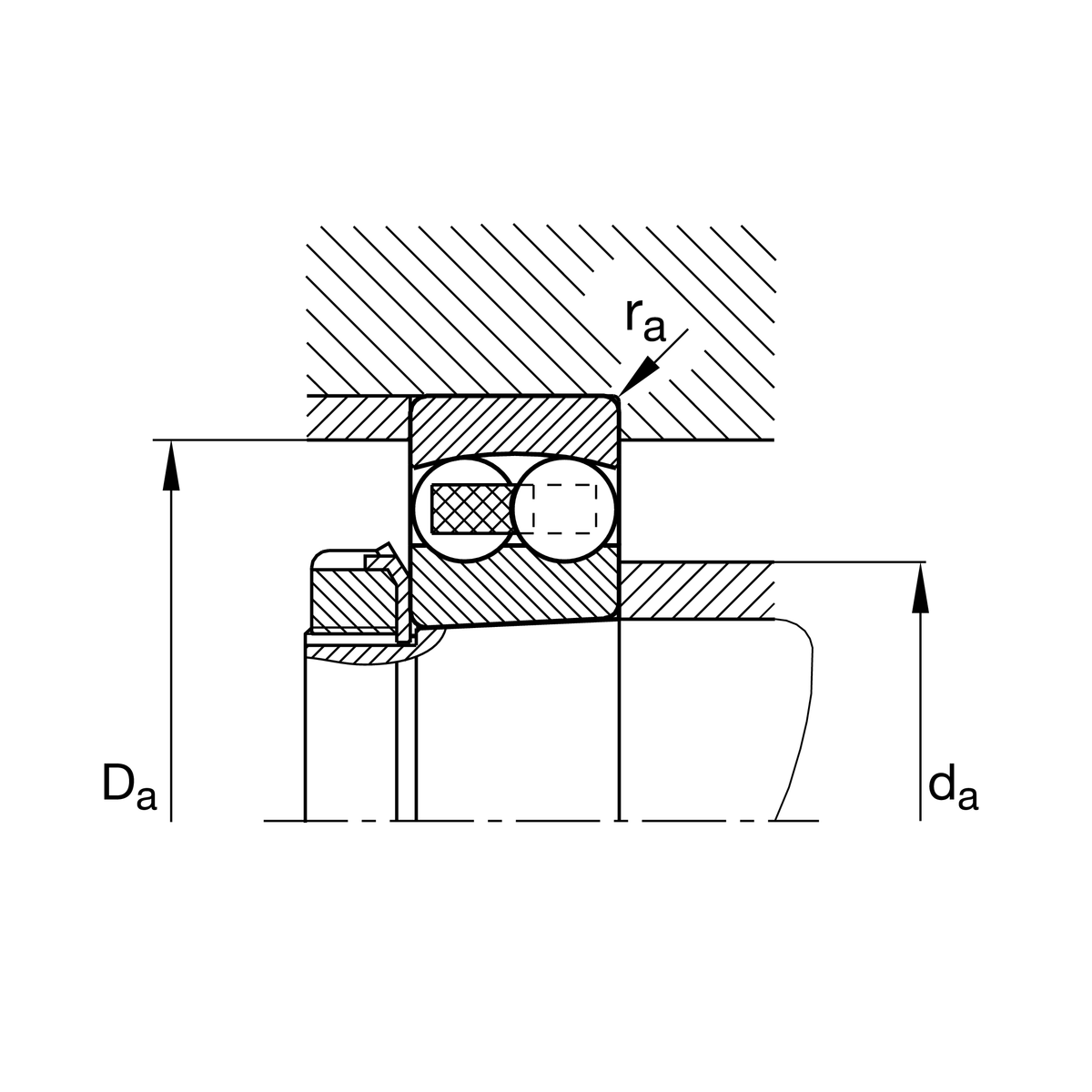

Mounting dimensions
| da min | 79 mm | Minimum diameter shaft shoulder |
| da max | 86 mm | Maximum diameter shaft shoulder |
| Da max | 116 mm | Maximum diameter of housing shoulder |
| db min | 75 mm | Minimum cavity diameter of the sleeve |
| Ba min | 6 mm | Minimum cavity width of the sleeve |
| ra max | 1.5 mm | Maximum fillet radius |
Dimensions
| rmin | 1.5 mm | Minimum chamfer dimension |
| D1 | 106.08 mm | Shoulder diameter outer ring |
| d1 | 87.2 mm | Shoulder diameter inner ring |
Temperature range
| Tmin | -30 °C | Operating temperature min. |
| Tmax | 120 °C | Operating temperature max. |
Calculation factors
| e | 0.19 | Limiting value of Fa/Fr for the applicability of diff. Values of factors X and Y |
| Y1 | 3.37 | Dynamic axial load factor |
| Y2 | 5.22 | Dynamic axial load factor |
| Y0 | 3.53 | Static axial load factor |
Additional information
H214 | Adapter sleeve |
Your current product variant
| Bore type | K | Tapered, taper 1:12 |
| Sealing | Without | Not sealed |
| Cage | TVH | solid cage made of glass-fiber reinforced polyamid PA66 |
| Tolerance class | PN | Normal (PN) |
| Lubricant | Without | Bearing not greased |
| Radial internal clearance | C3 (Group 3) | Internal clearance larger than CN |
