Main Dimensions & Performance Data
| d | 65 mm | Bore diameter |
| D | 155 mm | Outside diameter |
| H | 82 mm | Hight |
| Ca | 172,000 N | Basic dynamic load rating, axial |
| C0a | 500,000 N | Basic static load rating, axial |
| Cr | 54,000 N | Basic dynamic load rating, radial |
| C0r | 104,000 N | Basic static load rating, radial |
| Cua | 46,500 N | Fatigue load limit, axial |
| Cur | 14,900 N | Fatigue load limit, radial |
| nG Oil | 2,600 1/min | Limiting speed for oil lubrication |
| nG Grease | 900 1/min | Limiting speed for grease lubrication |
| MRL | 4 Nm | Bearing friction torque |
| ≈m | 4.52 kg | Weight |
Mounting dimensions

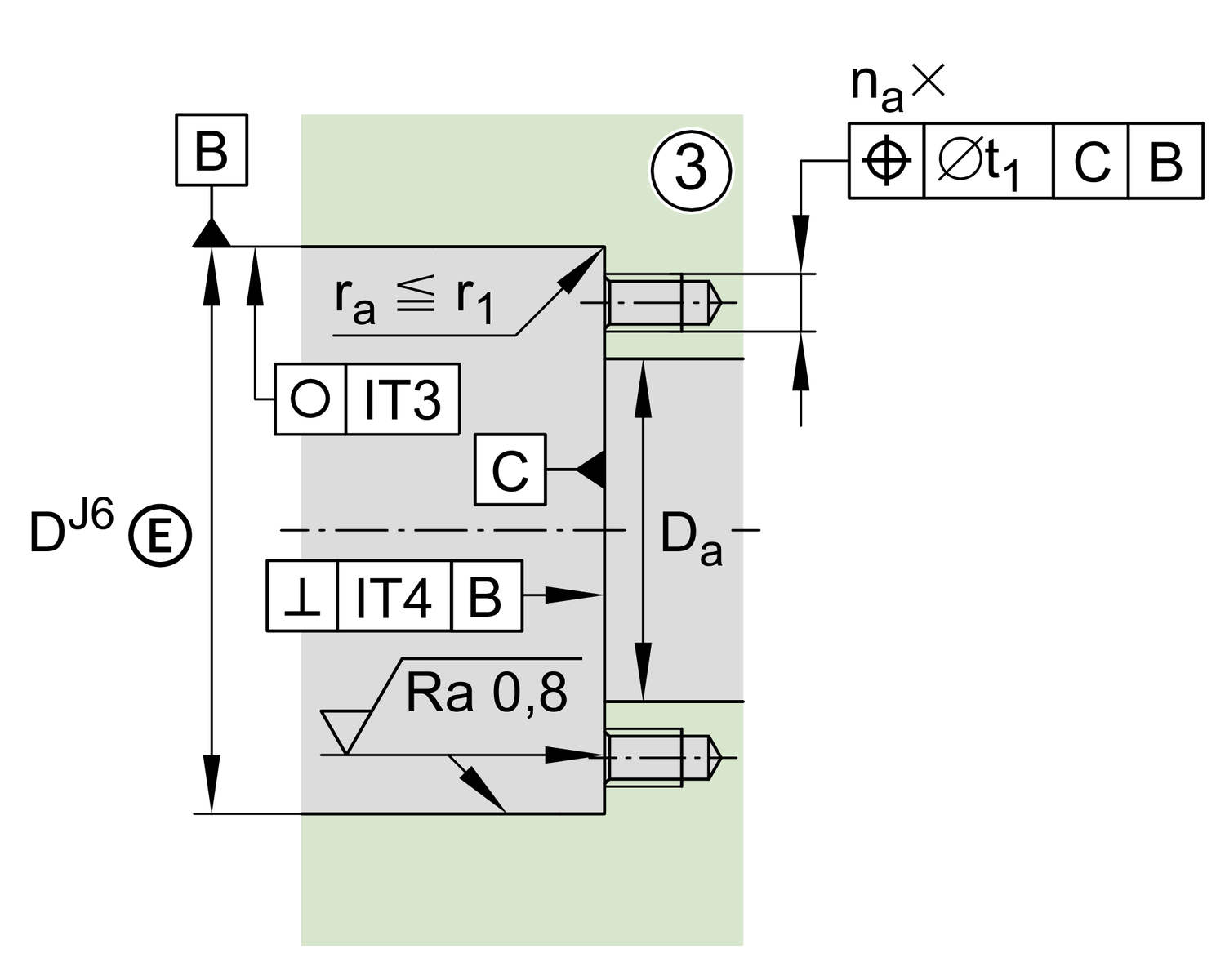

| Da max | 111 mm | Maximum diameter of housing shoulder |
| da min | 97 mm | Minimum diameter shaft shoulder |
| t1 | 0.2 mm | Position bore in the housing |
Dimensions

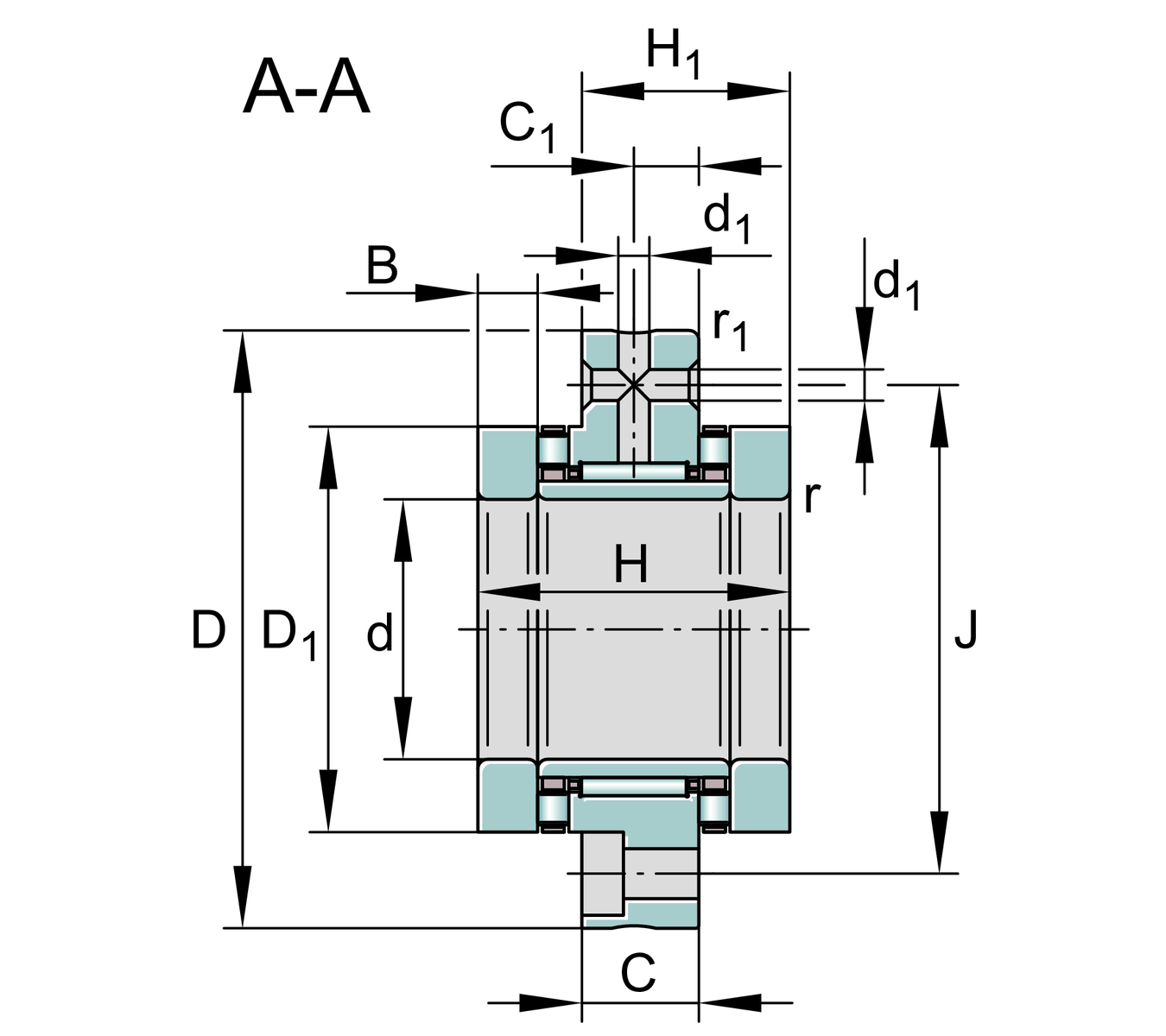

| H1 | 51 mm | Height outer ring over wave washer |
| C | 22.5 mm | Width, outer ring |
| C1 | 12.5 mm | Distance to lubrication hole |
| D1 | 110 mm | Rip diameter shaft washer |
| B | 17.5 mm | Width, inner ring |
| rmin | 0.3 mm | Minimum chamfer dimension |
| r1 min | 0.6 mm | Minimum chamfer dimension |
| d1 | 6 mm | Diameter lubrication hole |

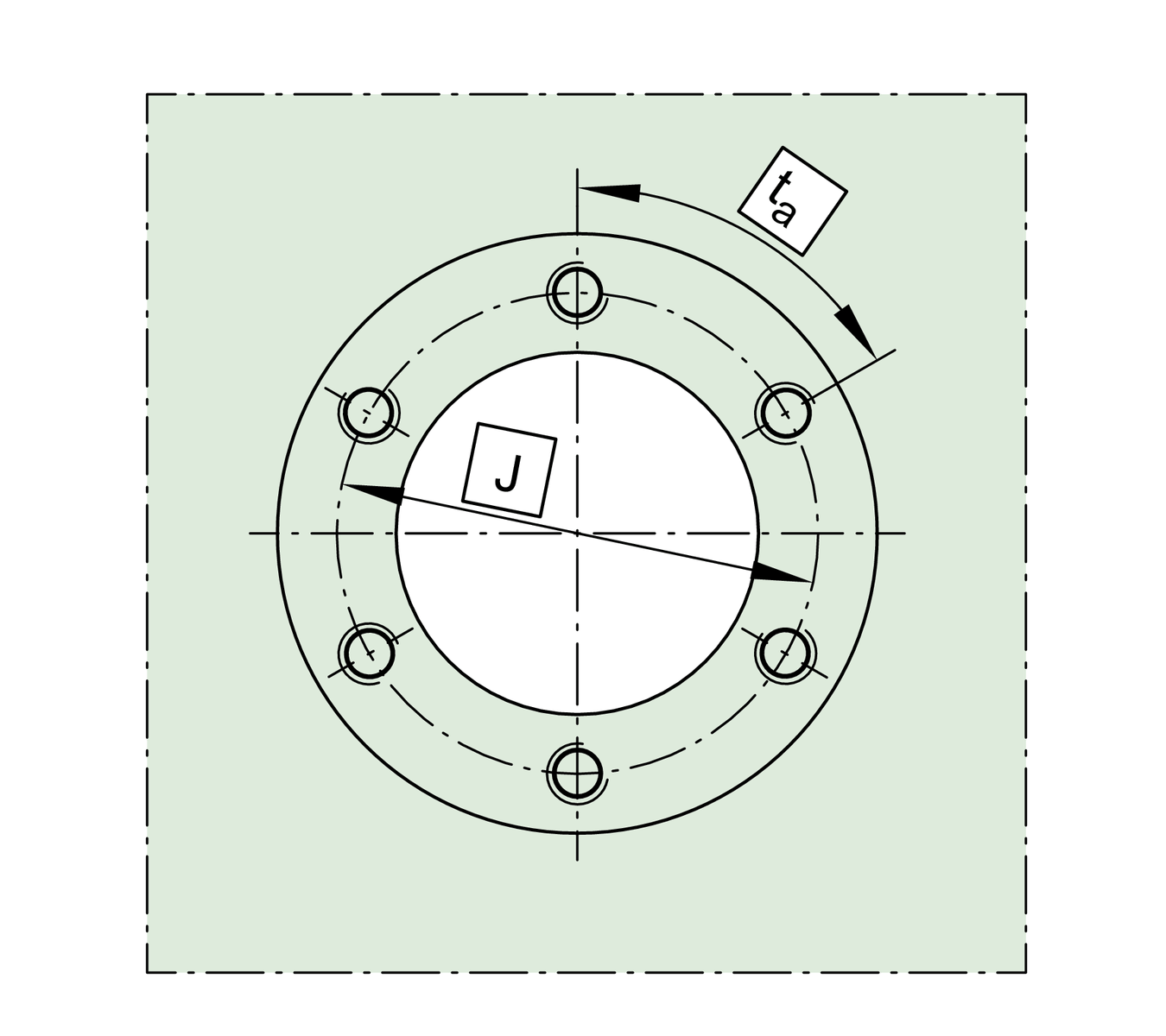

| J | 128 mm | Pitch circle diameter (holes) |

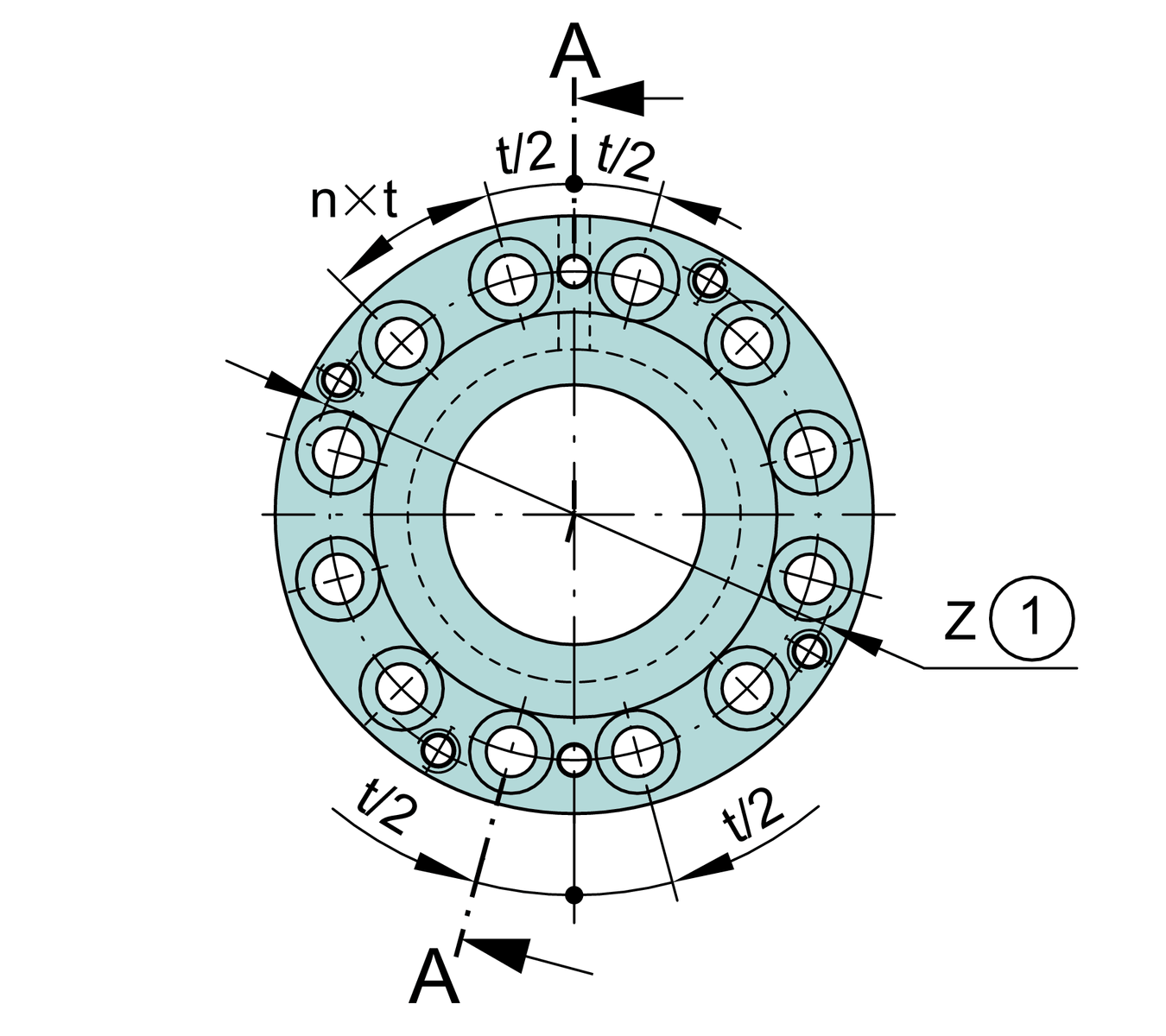

| n | 12 | Number of screwing holes |
| n x t | 30 ° | Split |
Temperature range
| Tmin | -30 °C | Operating temperature min. |
| Tmax | 120 °C | Operating temperature max. |
Additional information
| caL | 4,800 N/µm | Rigidity axial |
| ckL | 4,000 Nm/mrad | Tilting stiffness |
| Mm | 51 kg*cm2 | Mass moment of inertia |
1 µm | Axial runout | |
| radial | ZMA65/105 | Recommended INA precision locknut for radial locking (not included) |
| axial | AM65 | Recommended INA precision locknut for axial locking (not included) |
| MA | 270 Nm | Tightening torque nut |
40,652 N | Required locknut force | |
M10 | Screw size | |
| na | 12 | Number of screws |
| na x ta | 30 ° | Division (screwing holes) |
Your current product variant
| Cage | TV | Plastic Cage made from PA66 |
