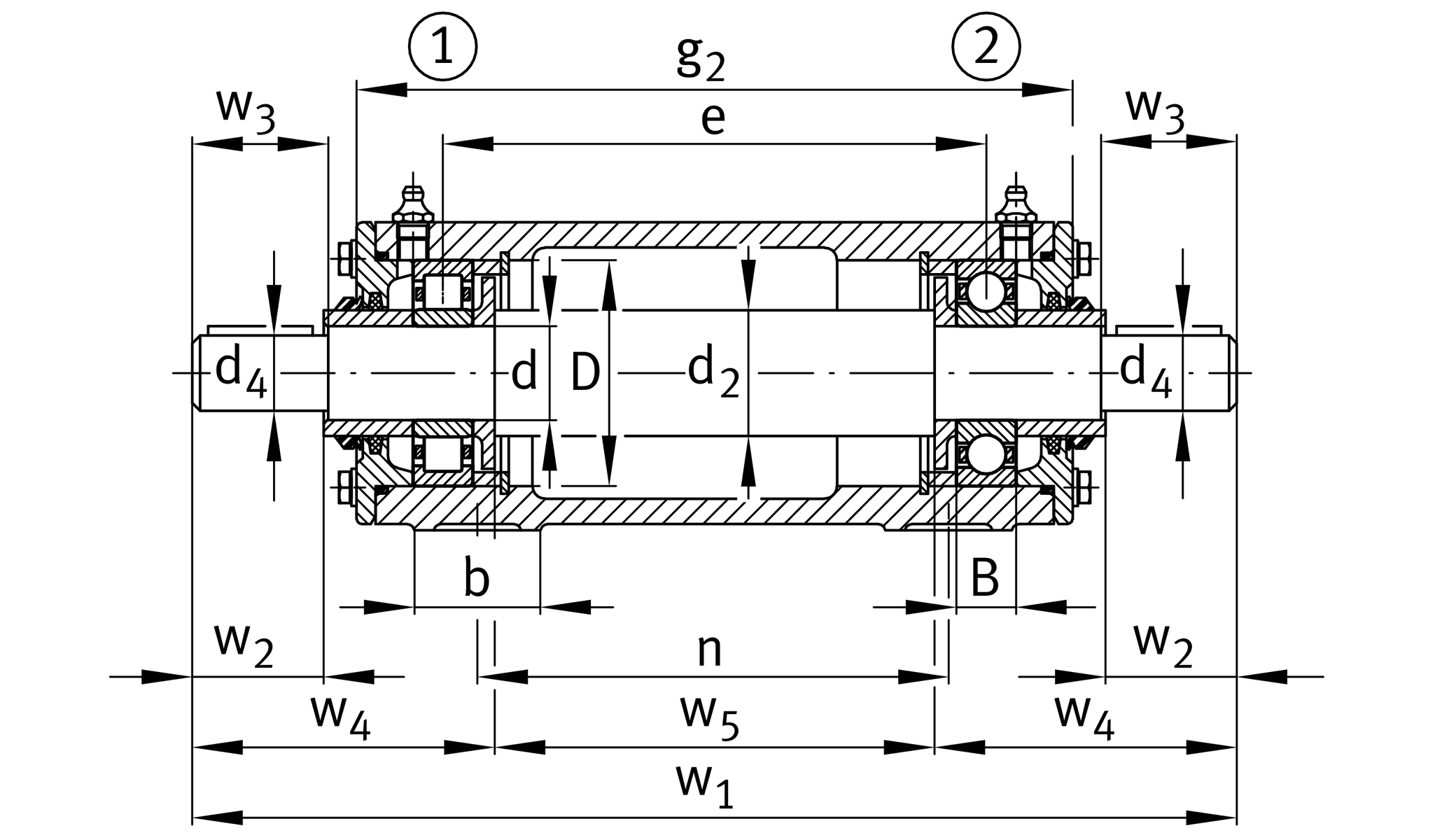

Main Dimensions & Performance Data
| d | 85 mm | Shaft diameter |
| a | 350 mm | Length base |
| h1 | 222 mm | Height |
| g2 | 570 mm | Total width with cover |
| ≈m | 1 g | Weight |
Dimensions
| B | 41 mm | width |
| b | 80 mm | width base |
| c | 30 mm | heigth base |
| D | 180 mm | outside diameter bearing |
| d2 | 100 mm | shaft diameter shoulder |
| d4 | 75 mm | Shaft dieameter outside |
| e | 487 mm | locking collar width |
| h | 112 mm | center heigth |
| m | 290 mm | distance fixing bore |
| n | 440 mm | bore distance width |
| s | M16 | size of fixing screws |
| w1 | 881 mm | length shaft total |
| w2 | 140 mm | distance shaft end |
| w3 | 143 mm | length shaft tap |
| w4 | 229.5 mm | lenght shaft end |
| w5 | 422 mm | length shaft shoulder |
Additional information
NU317-E-TVP2-C3 | bearing designation | |
6317-C3 | reference bearing designation | |
VR317-D | housing |
