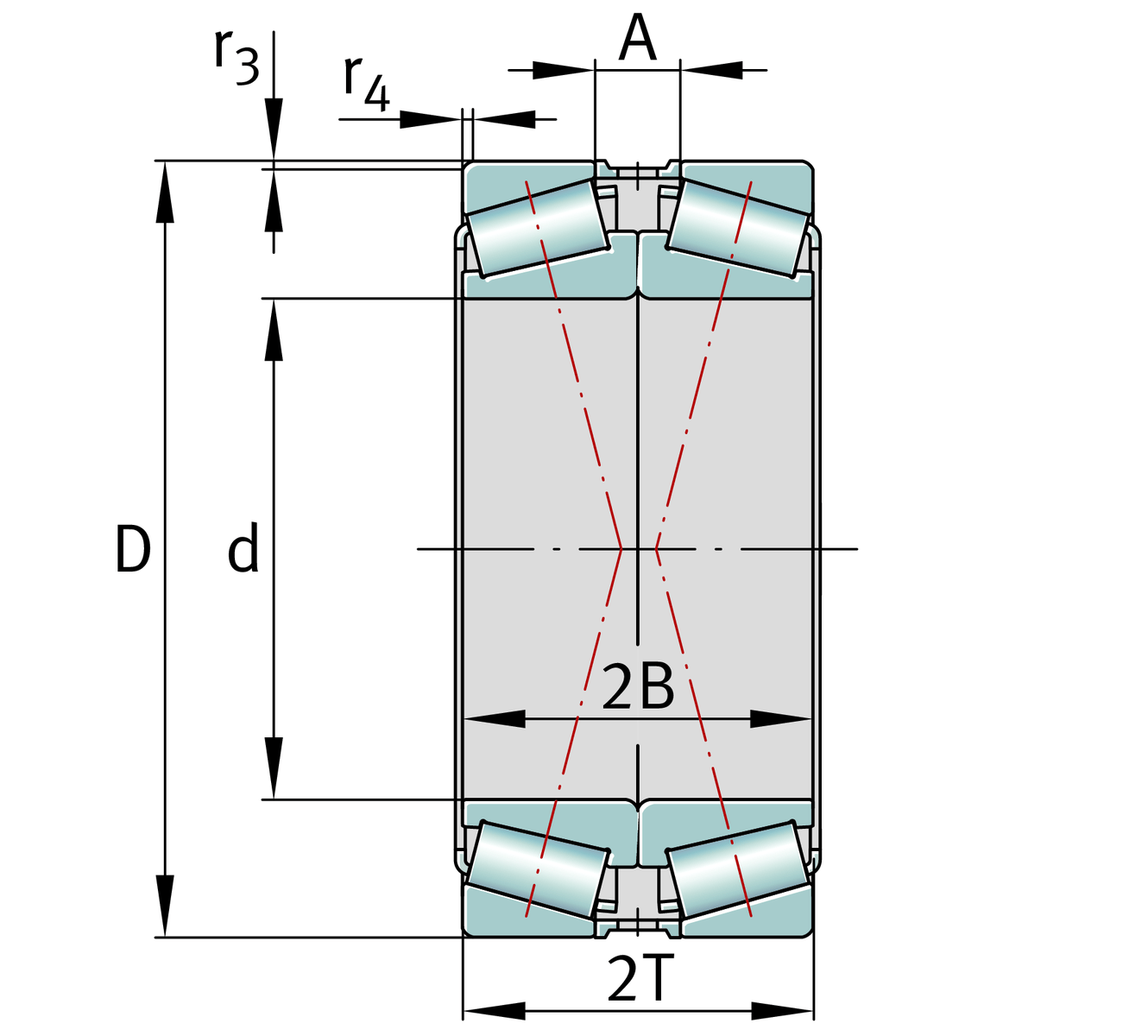

Main Dimensions & Performance Data
| d | 100 mm | Bore diameter |
| D | 180 mm | Outside diameter |
| 2B | 68 mm | Inner ring total width |
| 2T | 74 mm | Outer ring total width |
| Cr | 510,000 N | Basic dynamic load rating, radial |
| C0r | 650,000 N | Basic static load rating, radial |
| Cur | 95,000 N | Fatigue load limit, radial |
| nG | 4,400 1/min | Limiting speed |
| nϑr | 2,650 1/min | Thermal speed rating |
| ≈m | 7.82 kg | Weight |

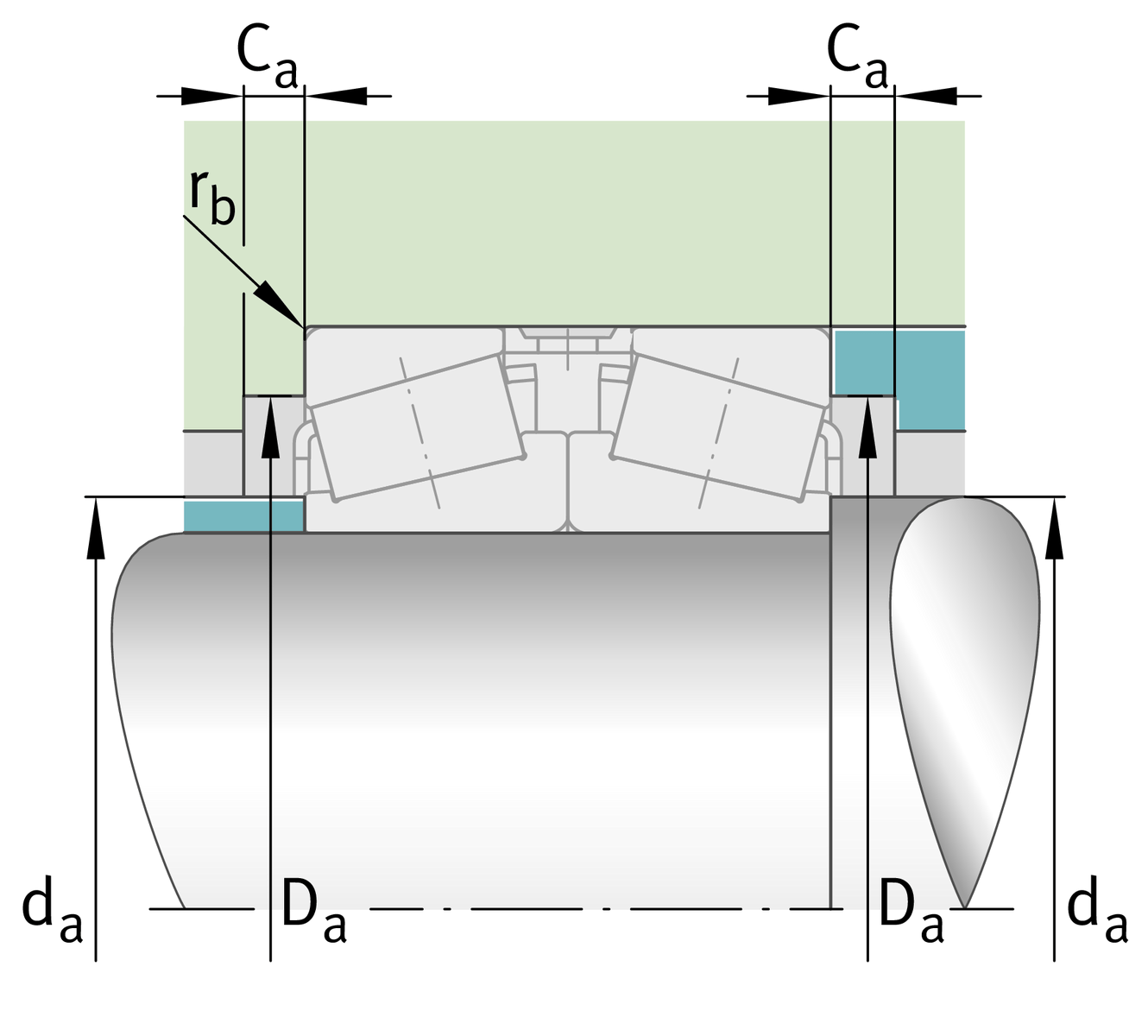

Mounting dimensions
| da max | 116 mm | Maximum diameter of shaft shoulder |
| Da min | 157 mm | Minimum diameter of housing shoulder |
| Da max | 168 mm | Maximum diameter of housing shoulder |
| Ca min | 5 mm | Minimum axial space |
| rb max | 2.5 mm | Maximum fillet radius of housing |
Dimensions
| r3, 4 min | 2.5 mm | Minimum chamfer dimension of outer ring back face |
| A | 16 mm | Width of spacer |
Temperature range
| Tmin | -30 °C | Operating temperature min. |
| Tmax | 120 °C | Operating temperature max. |
Calculation factors
| e | 0.42 | Limiting value of Fa/Fr for the applicability of diff. Values of factors X and Y |
| Y1 | 1.61 | Dynamic axial load factor |
| Y2 | 2.39 | Dynamic axial load factor |
| Y0 | 1.57 | Static axial load factor |
Your current product variant
| Tolerance class | PNXL | Normal (ISO 492:2014), Tolerance of radial runout tKia, tKea and axial runout tSia reduced |
| Heat treatment | Standard | |
| Cage | Standard | Sheet steel cage, roller-guided |
| Axial internal clearance | A0-40 | Axial internal clearance between 0 and 40 µm |
| Quality level | XL | X-life |
| Matched arrangement | F | X arrangement |
| Number of rolling element rows | 2 | Double-row design |
