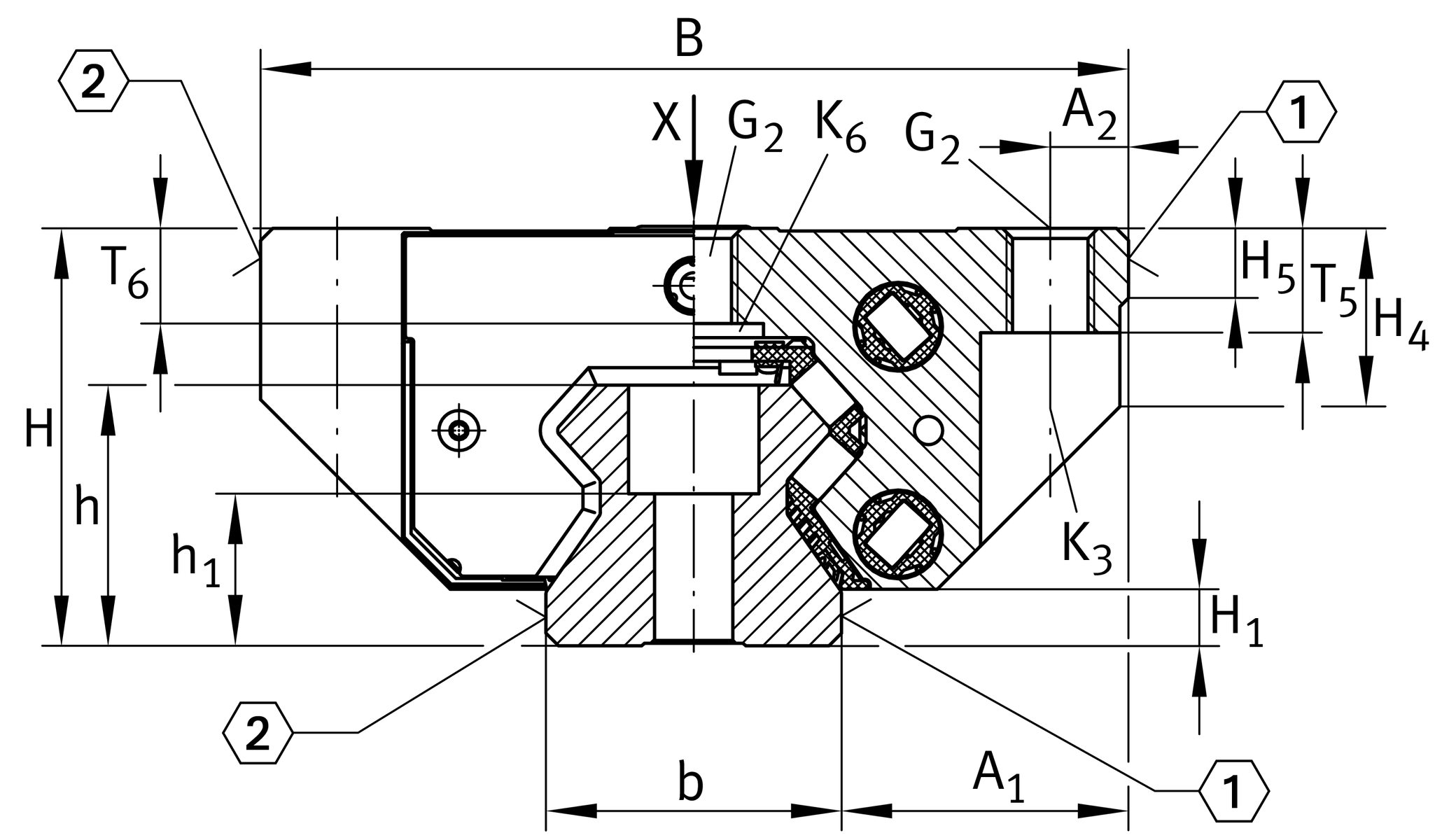

Mounting dimensions
| A1 | 37.5 mm | |
| JB | 100 mm | |
| b | 45 mm | width rail |
| Tolb | -0.005 mm | Upper tolerance |
| Tolb | -0.035 mm | Lower tolerance |
| A2 | 10 mm | |

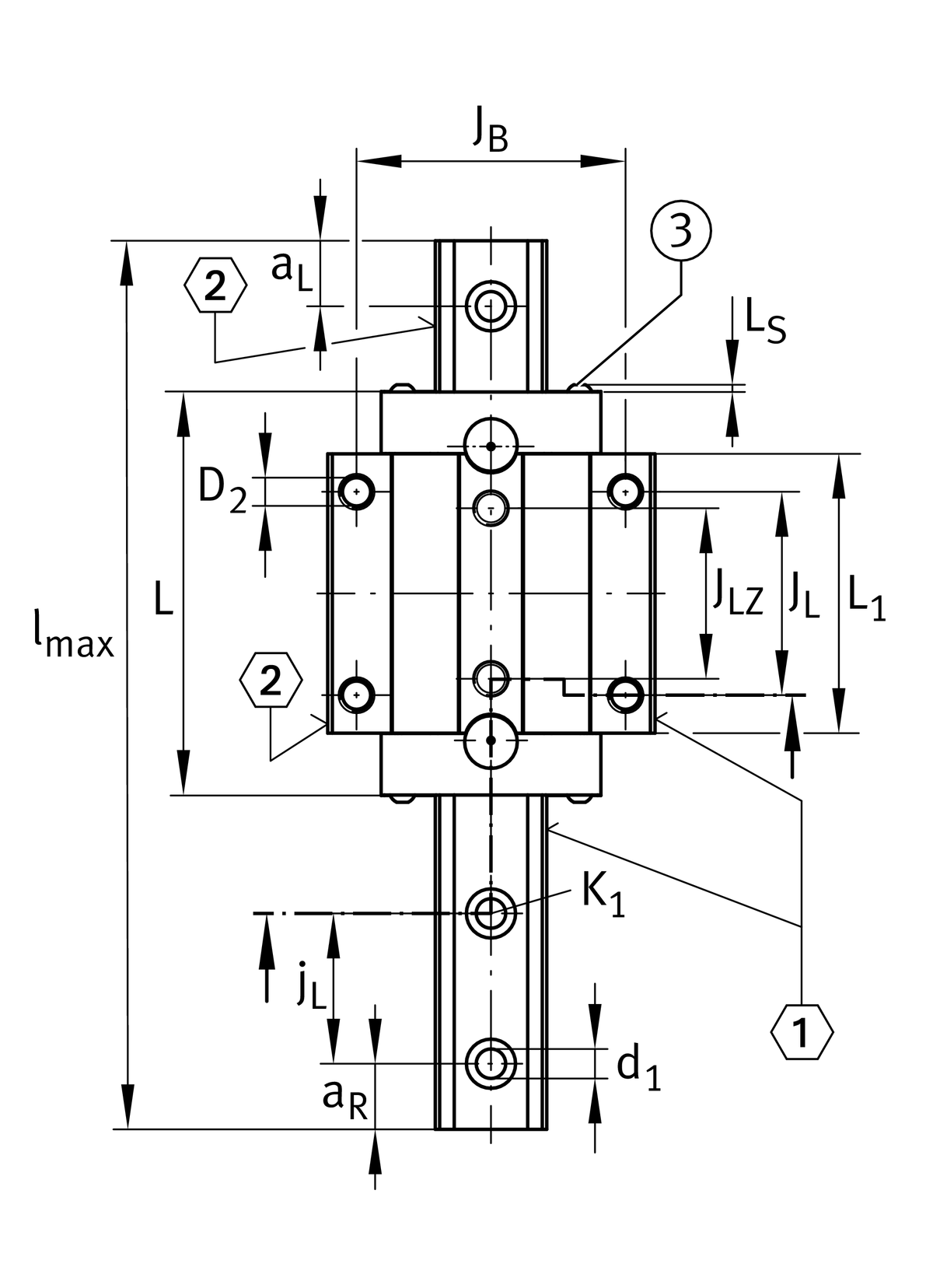

| L1 | 104.2 mm | |
| JL | 80 mm | |
| JLZ | 60 mm | |
| jL | 52.5 mm | |
| aL min | 20 mm | 1 |
| aL max | 41 mm | 1 |
| aR min | 20 mm | Distance 1 |
| aR max | 41 mm | 1 |
| H1 | 8.5 mm | |
| H4 | 26 mm | |
| H5 | 8 mm | |
| T5 | 15 mm | |
| T6 | 13.2 mm | |
| h | 38 mm | |
| h1 | 19.5 mm | |
| Tol h1 | 0.5 mm | Upper tolerance |
| Tol h1 | -0.5 mm | Lower tolerance |
| G2 | M12 | fixing screws |
| G2 MA | 83 Nm | maximum tightening torque 2 |
| K1 | M12 | fixing screws |
| K1 MA | 140 Nm | maximum tightening torque 2 |
| K3 | M10 | fixing screws |
| K3 MA | 83 Nm | maximum tightening torque 2 |
| K6 | M10 | fixing screws |
| K6 MA | 48 Nm | maximum tightening torque 2 |
| d1 | 10.6 mm | |
| D2 | 10.6 mm | |

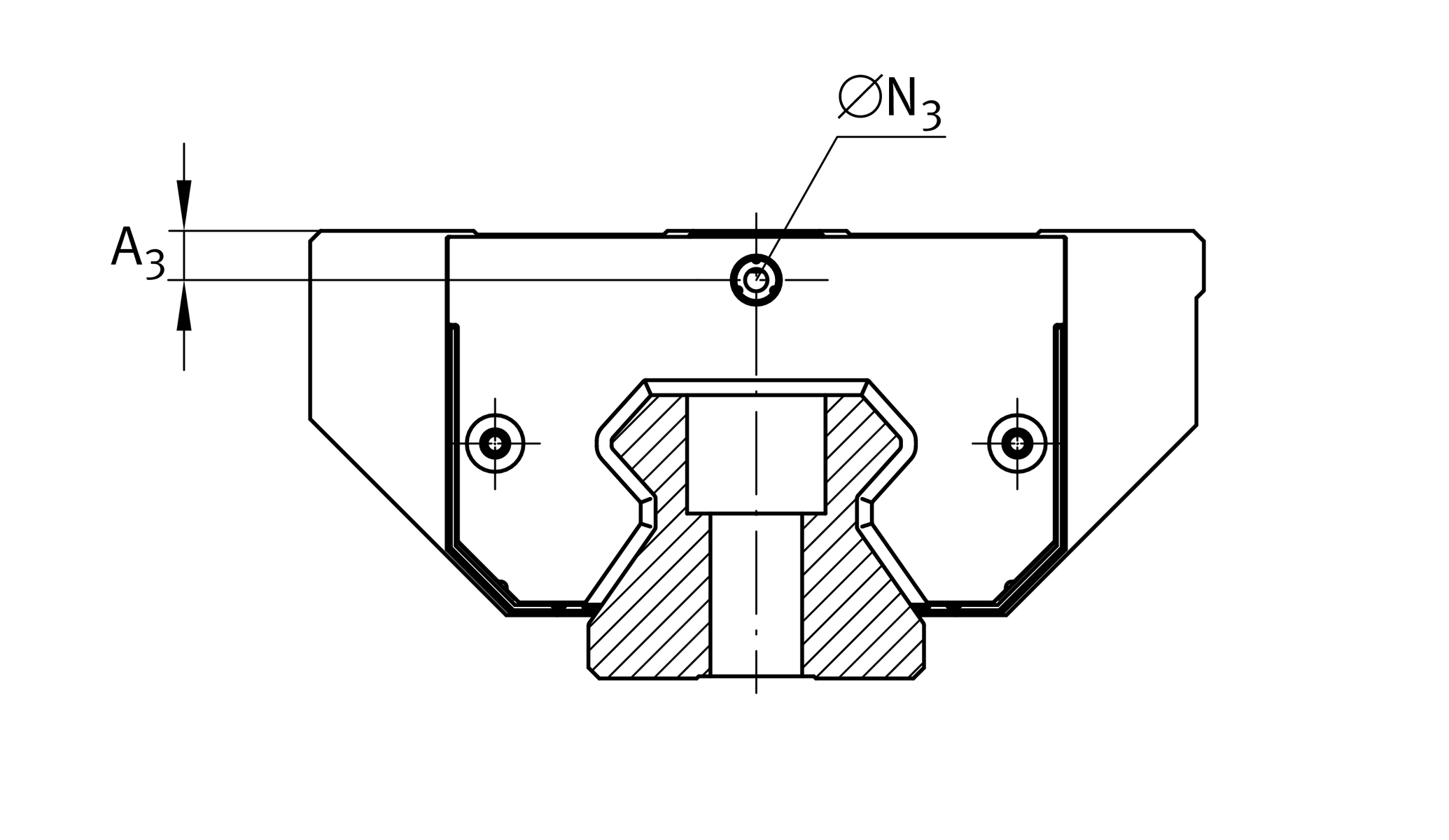

| A3 | 6.6 mm | position lubrication adapter |
| N3 | M6 | lubrication connector 3 |

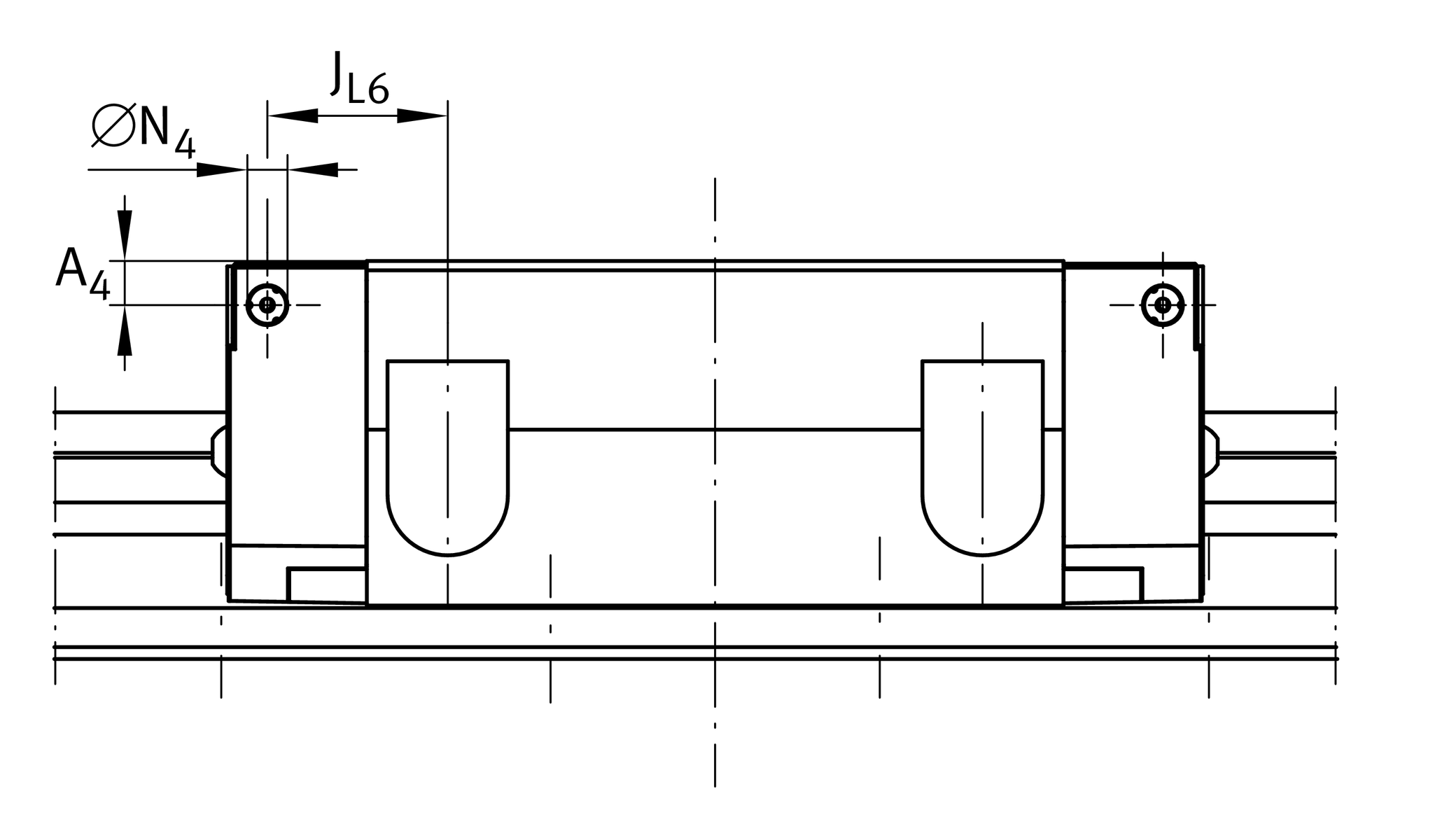

| A4 | 6.6 mm | position lubrication connector |
| N4 | M6 | lubrication connector 3 |
| JL6 | 27 mm | position lubrication connector |

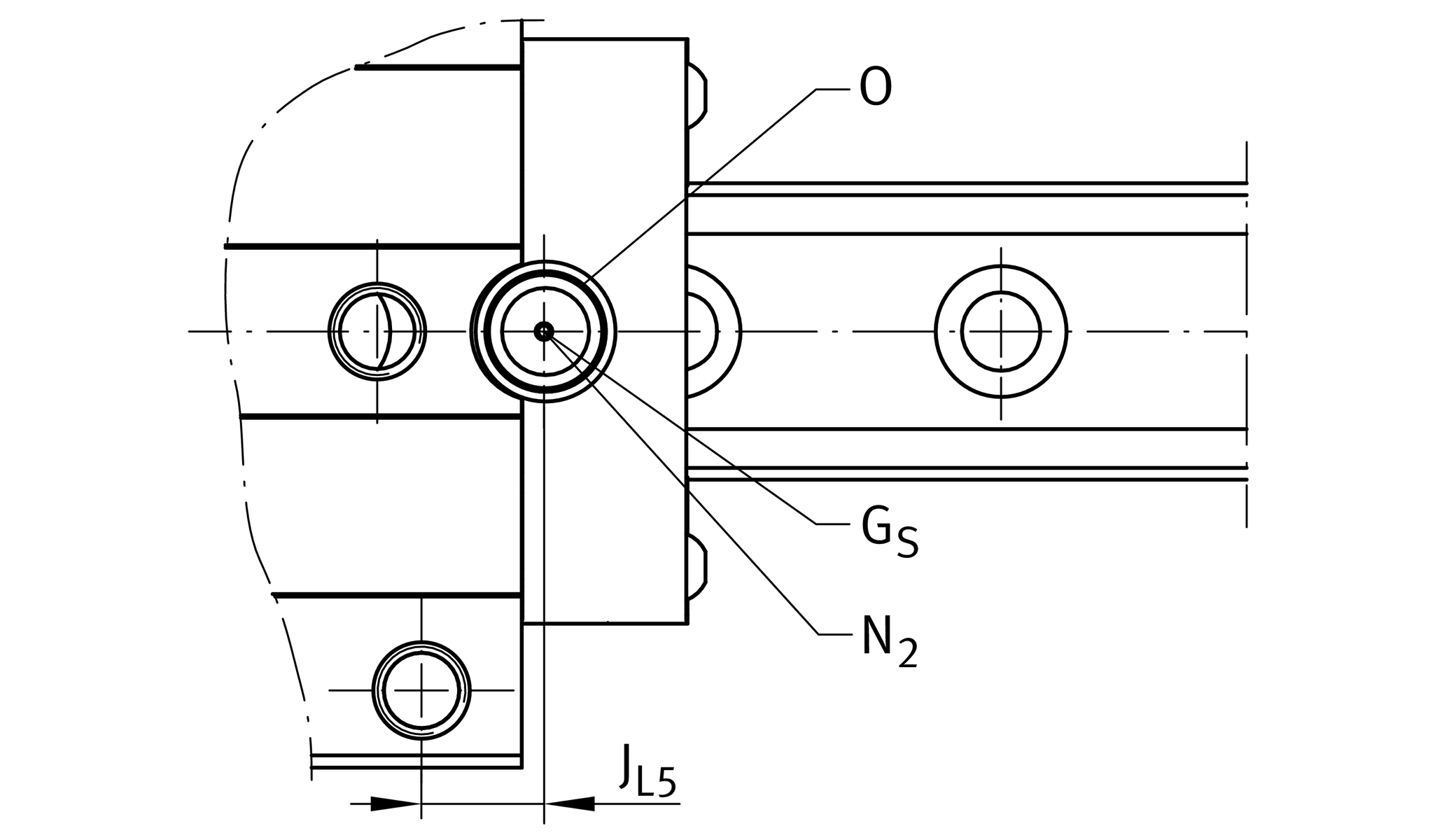

| N2 max | 6 mm | 4 |
| JL5 | 15.7 mm | 5 |
| GS | M4x4 | |
| O | 10x1,5 | O-Ring DIN 3771 |
Main dimensions
| lmax | 5,888 mm | Max length single piece guideway 6 |
| H | 60 mm | height system |
| B | 120 mm | width carriage |
| L | 145.9 mm | overall length carriage 7 |
Technical data
| C | 92,000 N | dynamic load rating 8 |
| C0 | 215,000 N | static load rating 8 |
| M0x | 1,899 Nm | static moment rating about X axis |
| M0y | 4,255 Nm | static moment rating about Y axis |
| M0z | 3,821 Nm | static moment rating about Z axis |
Related products
RWU45-F | Carriage | |
TSX45-E | Guideway |
Your current product variant
| Size code | 45 |
