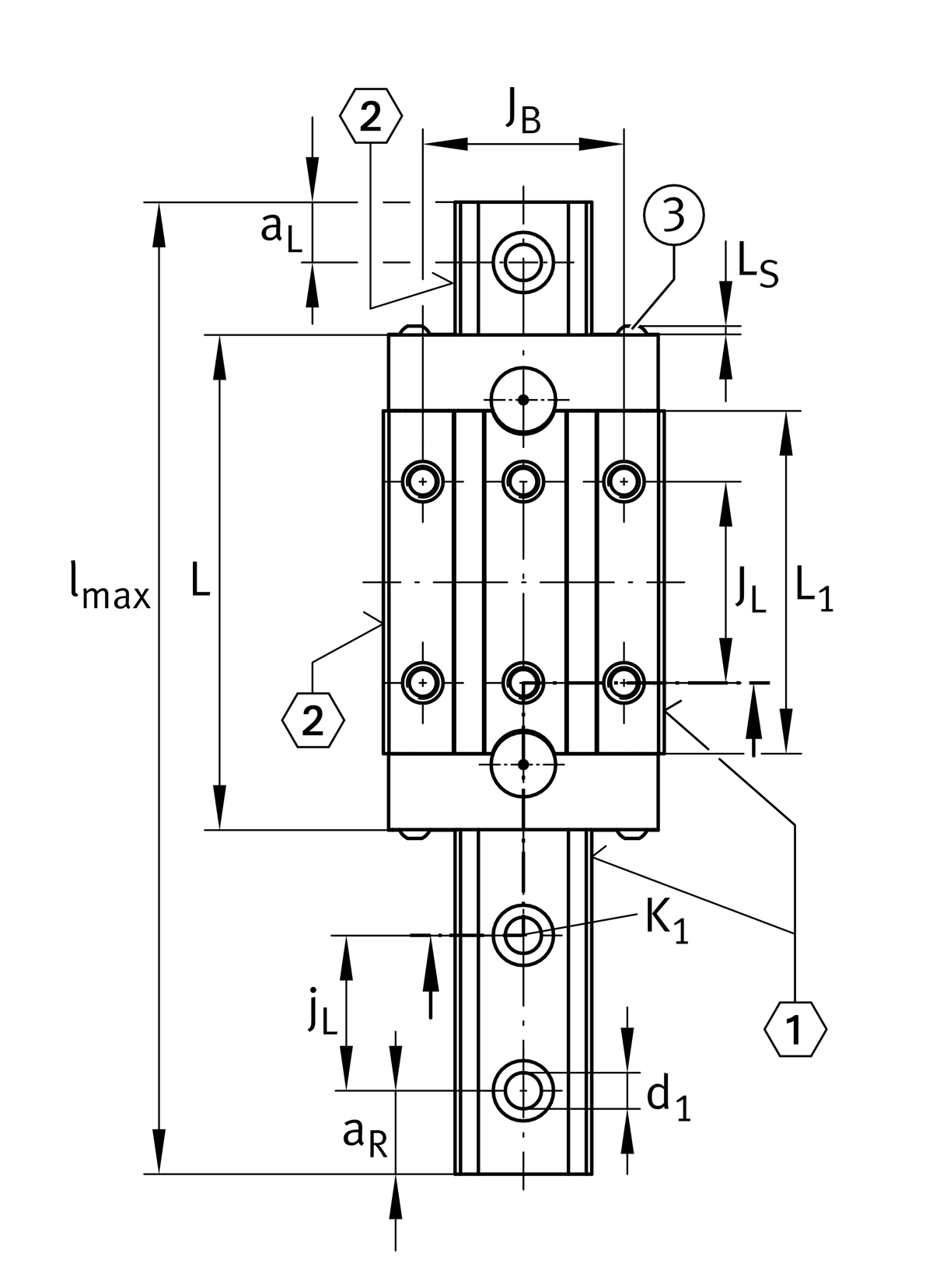

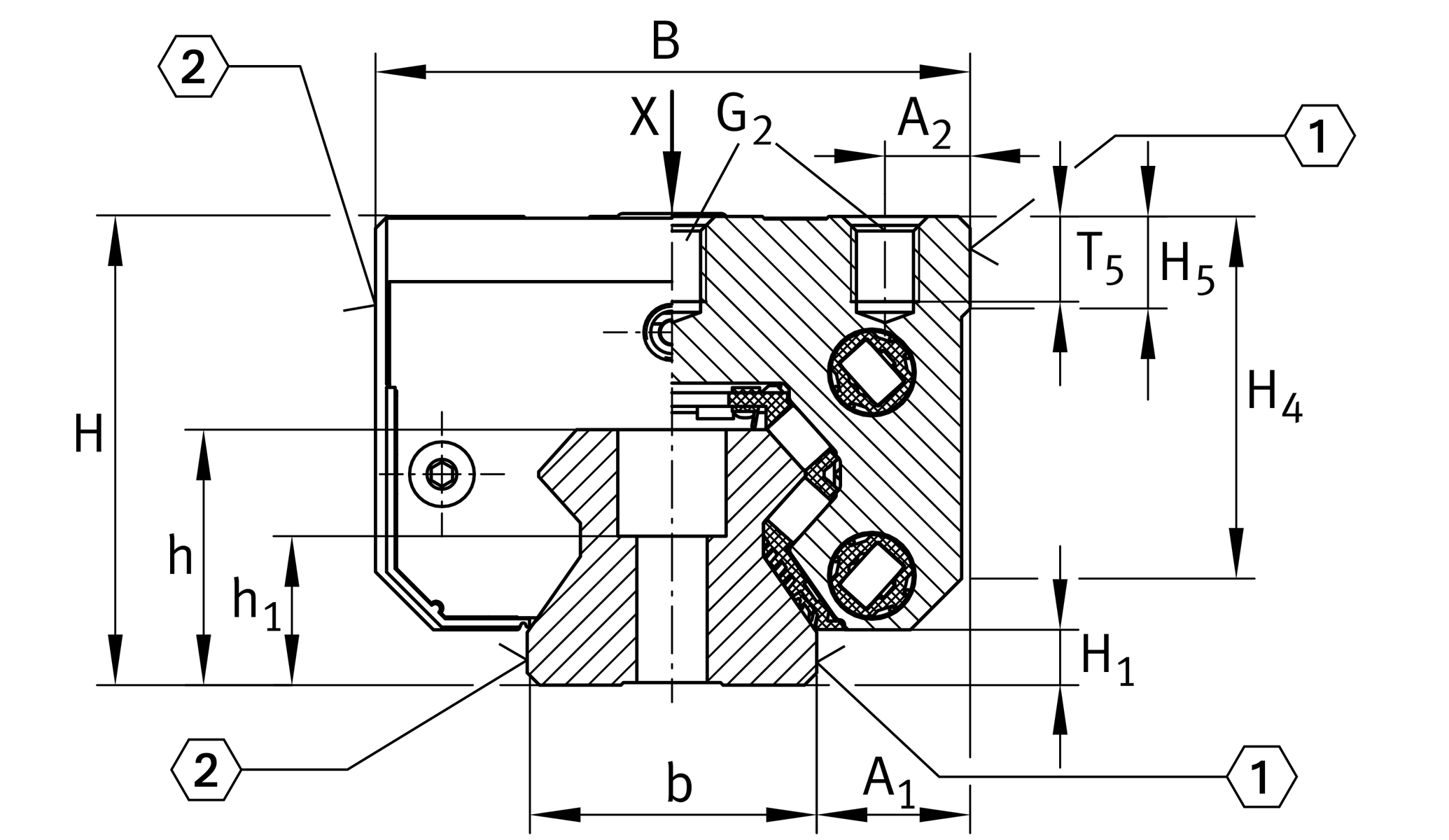

Mounting dimensions
| A1 | 18 mm | |
| JB | 50 mm | |
| b | 34 mm | width rail |
| Tolb | -0.005 mm | Upper tolerance |
| Tolb | -0.035 mm | Lower tolerance |
| A2 | 10 mm | |
| L1 | 85.2 mm | |
| JL | 50 mm | |
| jL | 40 mm | |
| aL min | 20 mm | 1 |
| aL max | 31 mm | 1 |
| aR min | 20 mm | Distance 1 |
| aR max | 31 mm | 1 |
| H1 | 6.5 mm | |
| H4 | 41.9 mm | |
| H5 | 10.8 mm | |
| T5 | 10 mm | |
| h | 30 mm | |
| h1 | 17.5 mm | |
| Tol h1 | 0.5 mm | Upper tolerance |
| Tol h1 | -0.5 mm | Lower tolerance |
| G2 | M8 | fixing screws |
| G2 MA | 41 Nm | maximum tightening torque 2 |
| K1 | M8 | fixing screws |
| K1 MA | 41 Nm | maximum tightening torque 2 |
| d1 | 8.6 mm | |

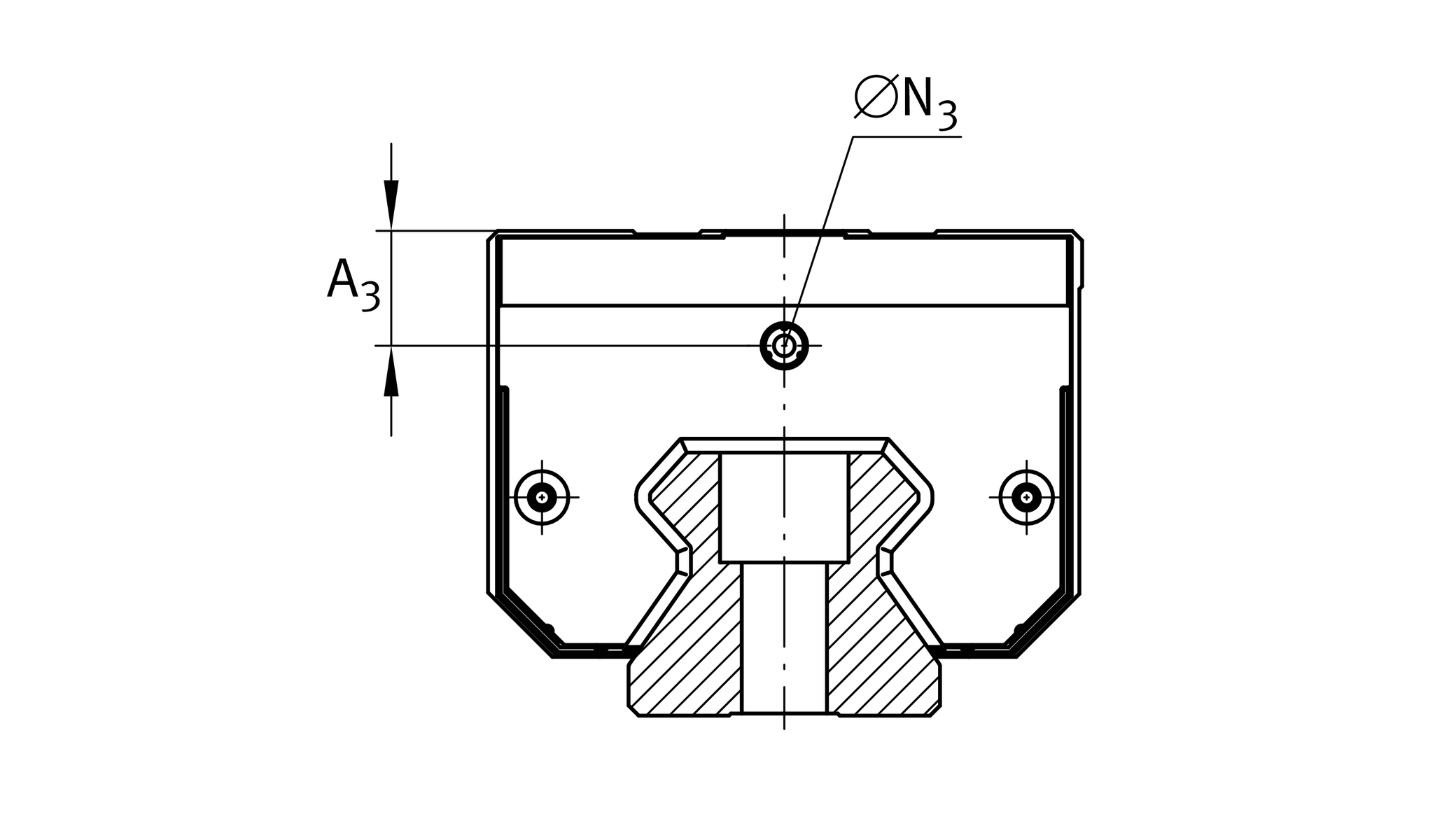

| A3 | 13.6 mm | position lubrication adapter |
| N3 | M6 | lubrication connector 3 |

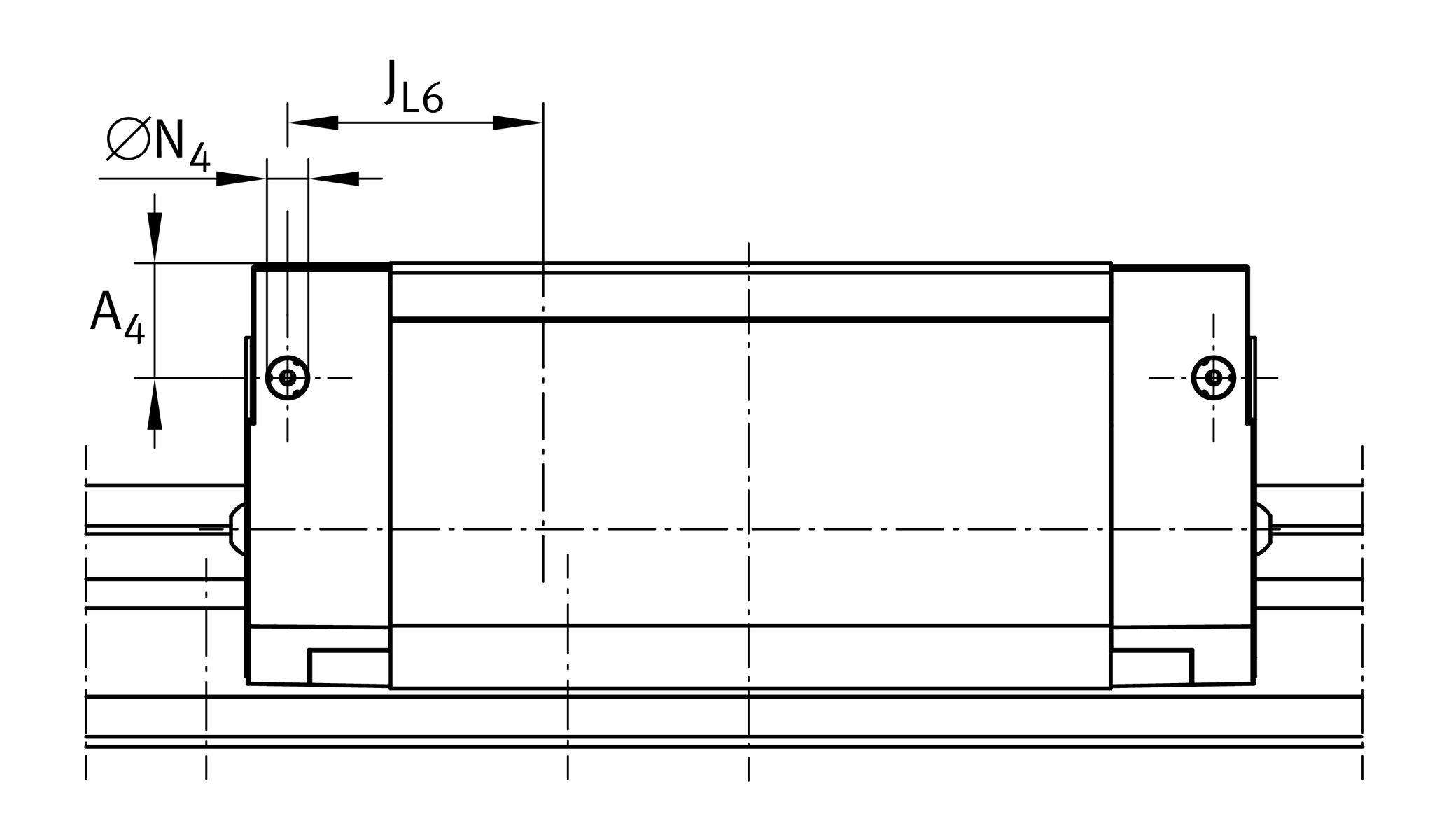

| A4 | 12.6 mm | position lubrication connector |
| N4 | M6 | lubrication connector 3 |
| JL6 | 30.4 mm | position lubrication connector |

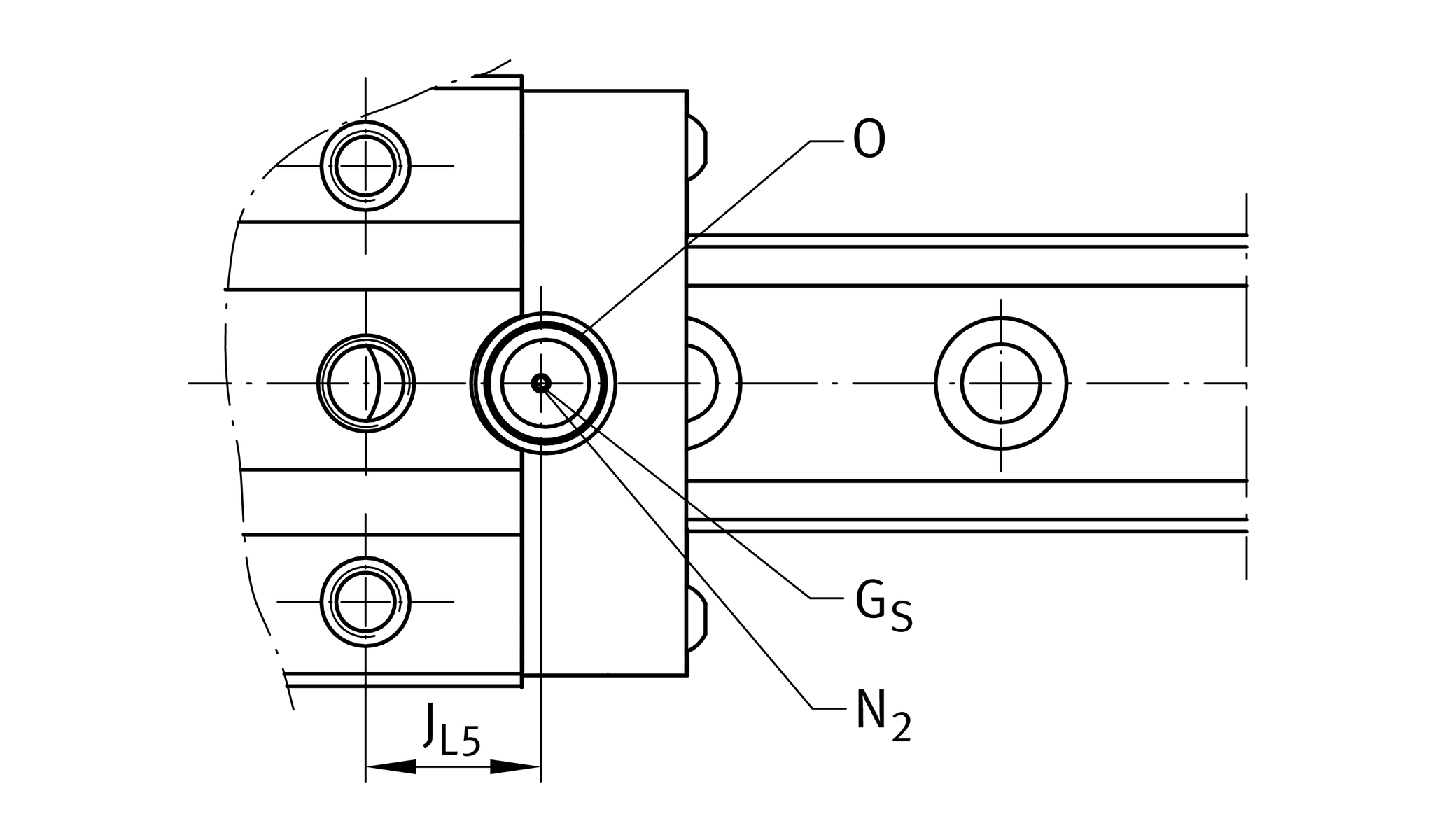

| N2 max | 6 mm | 4 |
| JL5 | 20.3 mm | 5 |
| GS | M4x4 | |
| O | 10x1,5 | O-Ring DIN 3771 |
Main dimensions
| lmax | 5,900 mm | Max length single piece guideway 6 |
| H | 55 mm | height system |
| B | 70 mm | width carriage |
| L | 122.9 mm | overall length carriage 7 |
Technical data
| C | 59,000 N | dynamic load rating 8 |
| C0 | 140,000 N | static load rating 8 |
| M0x | 1,200 Nm | static moment rating about X axis |
| M0y | 2,150 Nm | static moment rating about Y axis |
| M0z | 1,950 Nm | static moment rating about Z axis |
Related products
RWU35-F-H | Carriage | |
TSX35-E | Guideway |
Your current product variant
| Size code | 35 | |
| Carriage design | H | High carriage |
