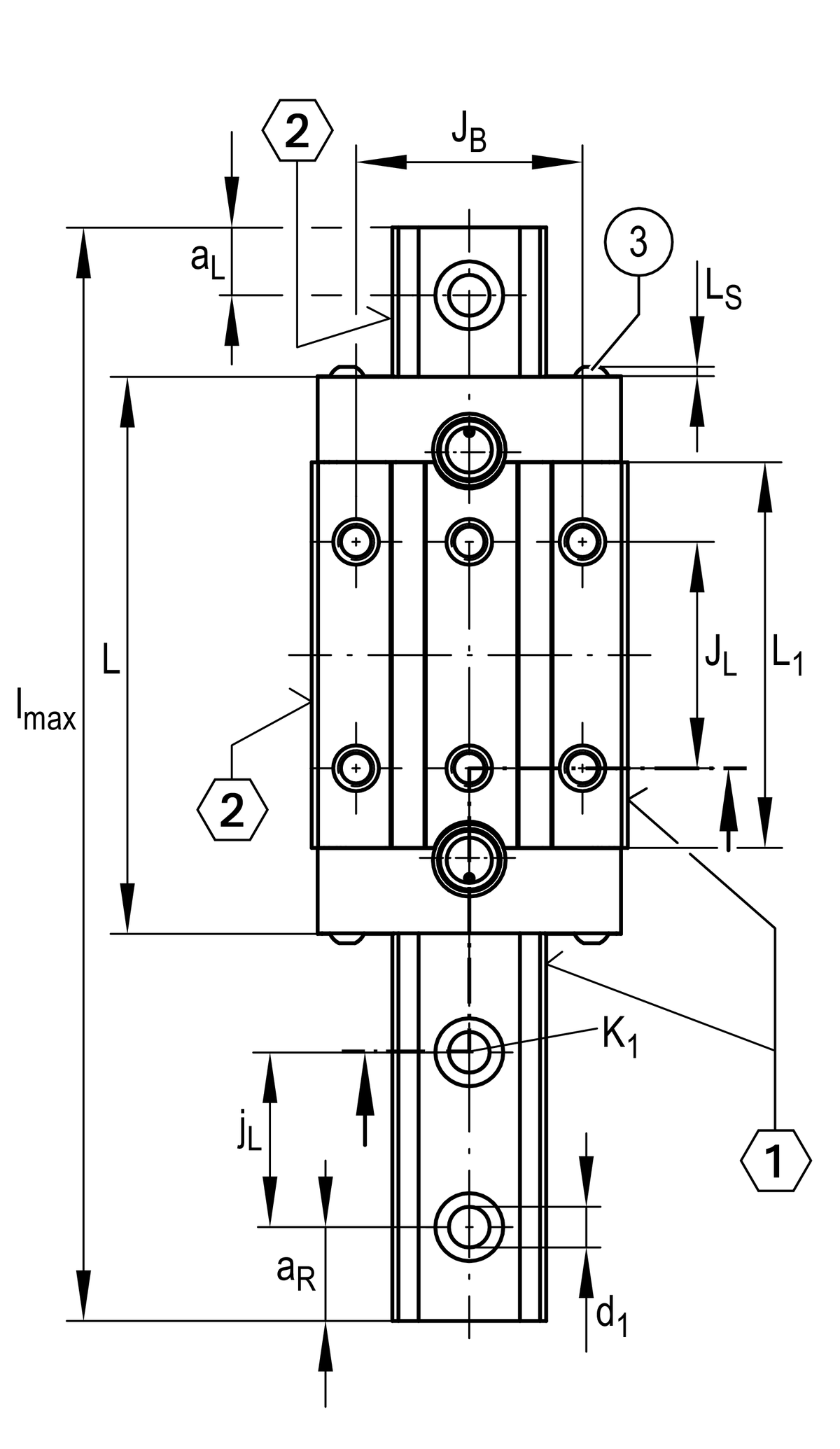

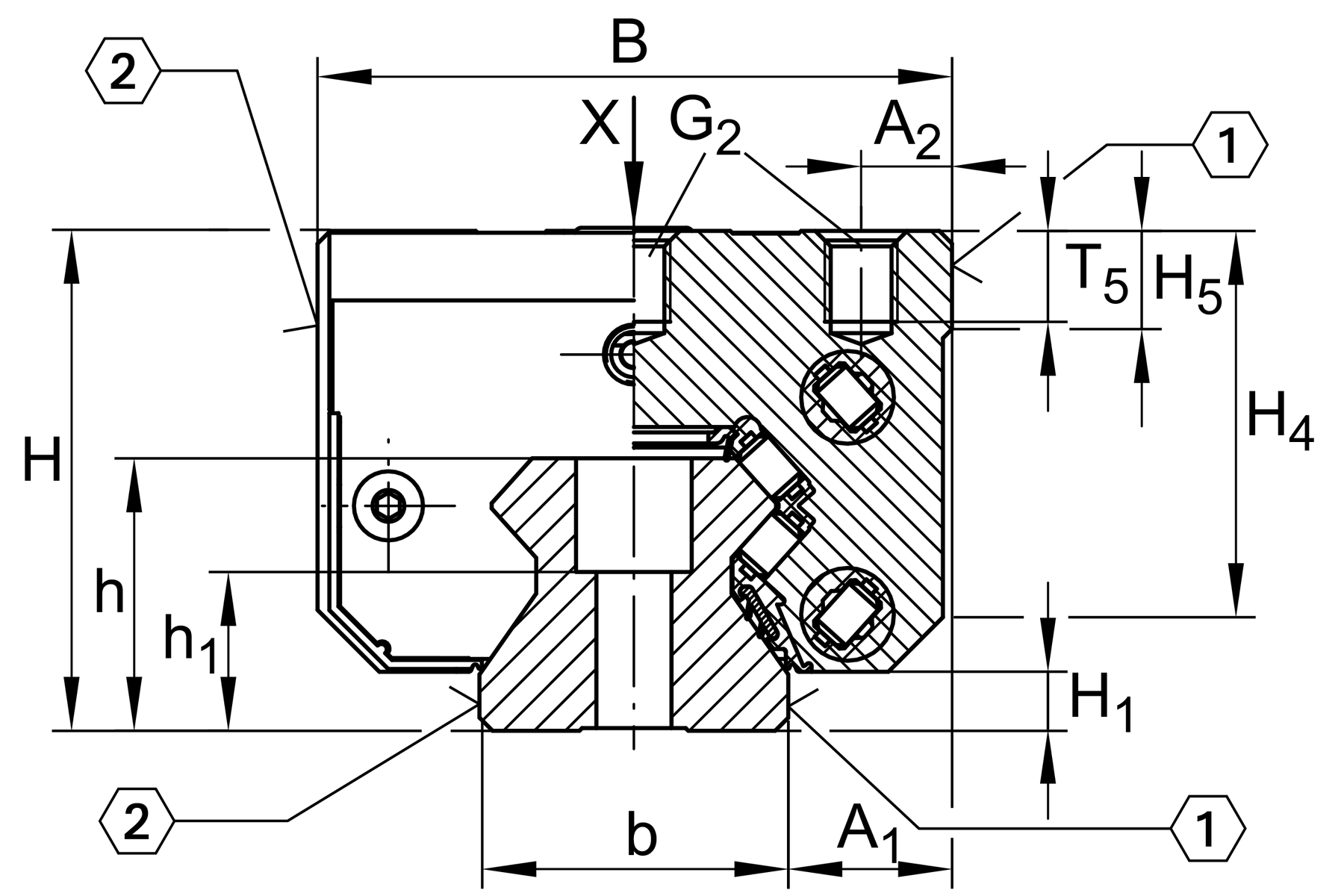

Mounting dimensions
| A1 | 12.5 mm | |
| JB | 35 mm | |
| b | 23 mm | width rail |
| Tolb | -0.005 mm | Upper tolerance |
| Tolb | -0.03 mm | Lower tolerance |
| A2 | 6.5 mm | |
| L1 | 82.2 mm | |
| JL | 50 mm | |
| jL | 30 mm | |
| aL min | 20 mm | 1 |
| aL max | 23 mm | 1 |
| aR min | 20 mm | Distance 1 |
| aR max | 23 mm | 1 |
| H1 | 6.5 mm | |
| H4 | 32.5 mm | |
| H5 | 5.25 mm | |
| T5 | 7.5 mm | |
| h | 22.3 mm | |
| h1 | 11.8 mm | |
| Tol h1 | 0.5 mm | Upper tolerance |
| Tol h1 | -0.5 mm | Lower tolerance |
| G2 MA | 17 Nm | maximum tightening torque 2 |
| K1 | M6 | fixing screws |
| K1 MA | 17 Nm | maximum tightening torque 2 |
| d1 | 6.7 mm | |

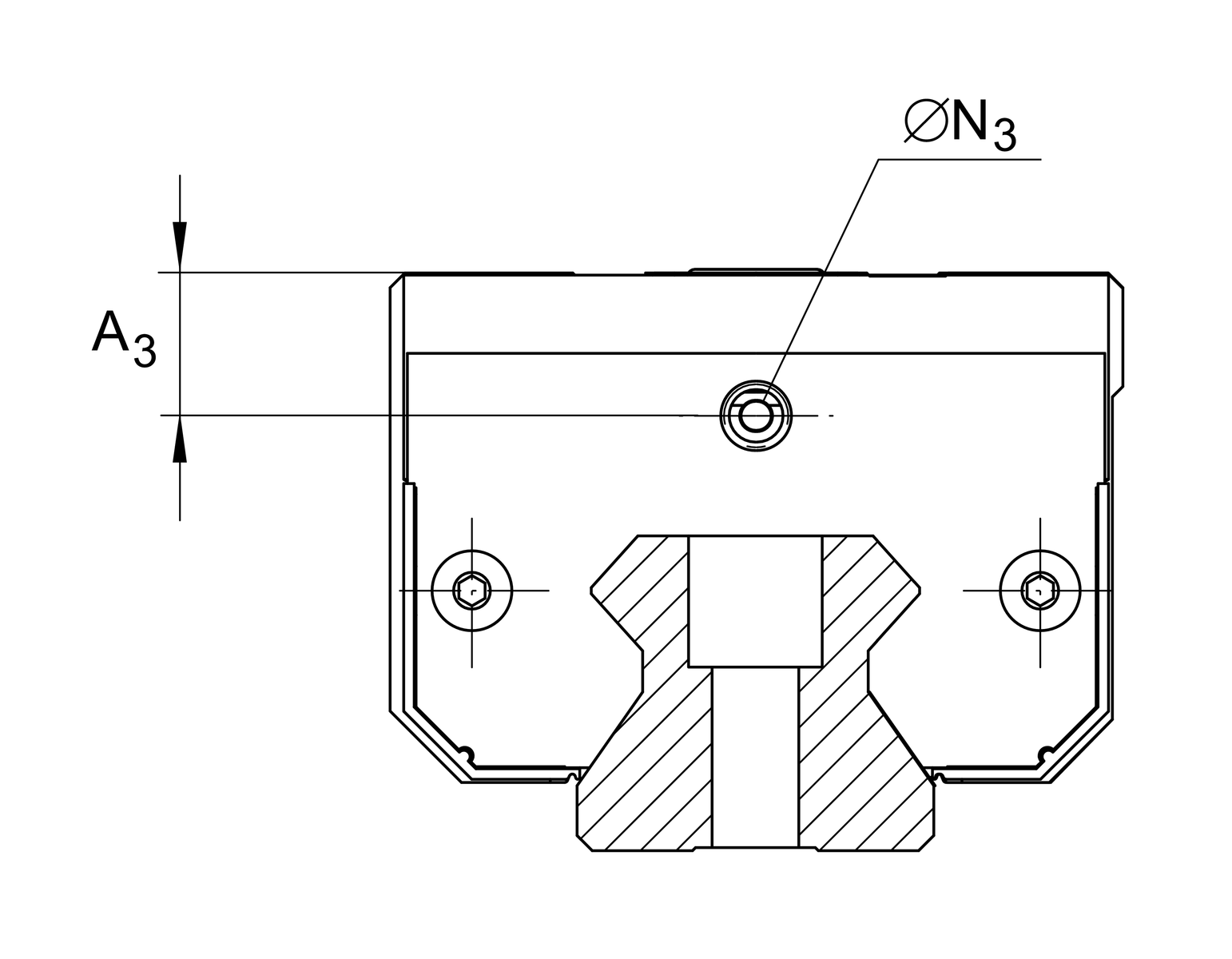

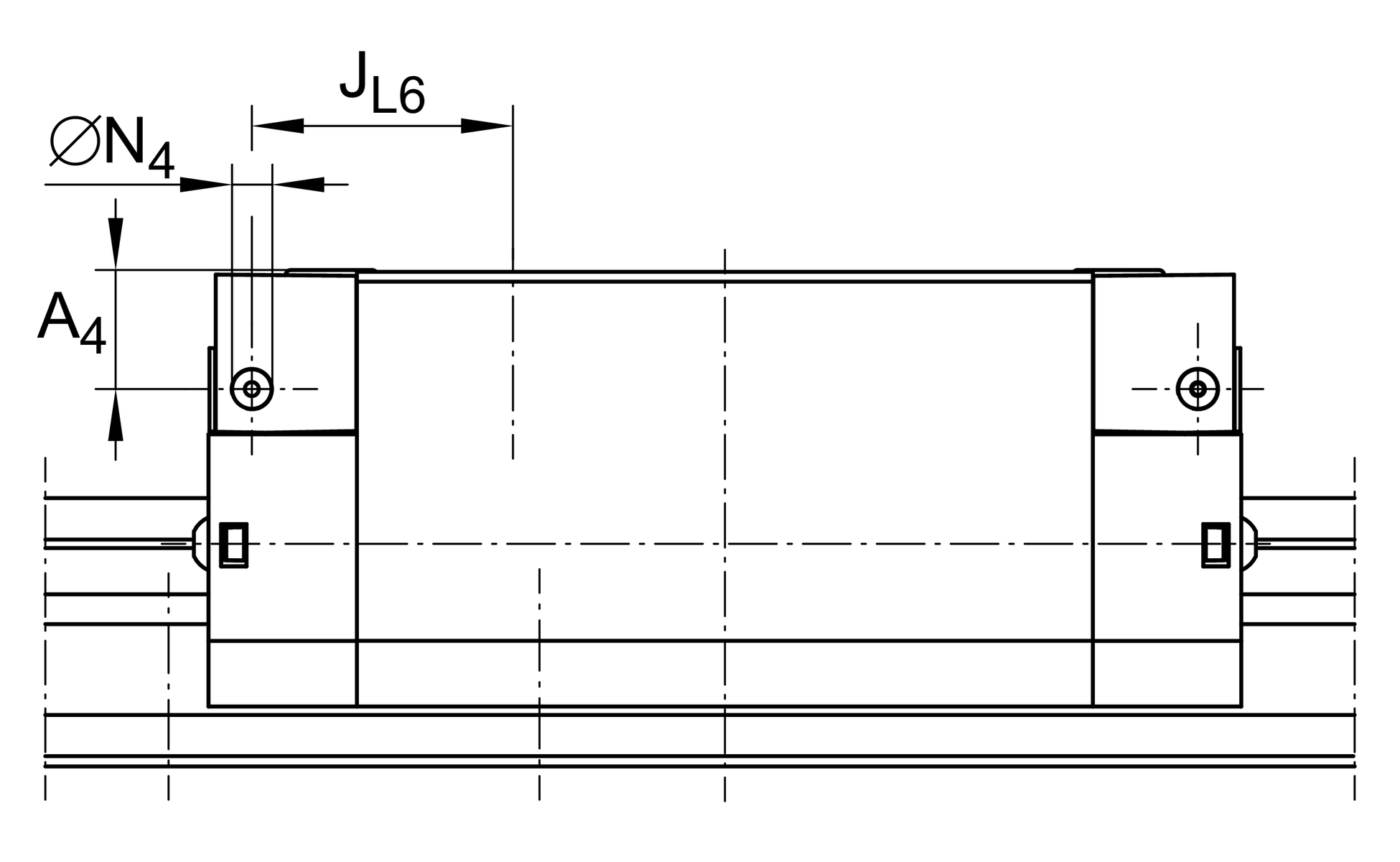

| A3 | 11.5 mm | position lubrication adapter |
| N3 | M6 | lubrication connector 3 |
| N2 max | 3 mm | 4 |

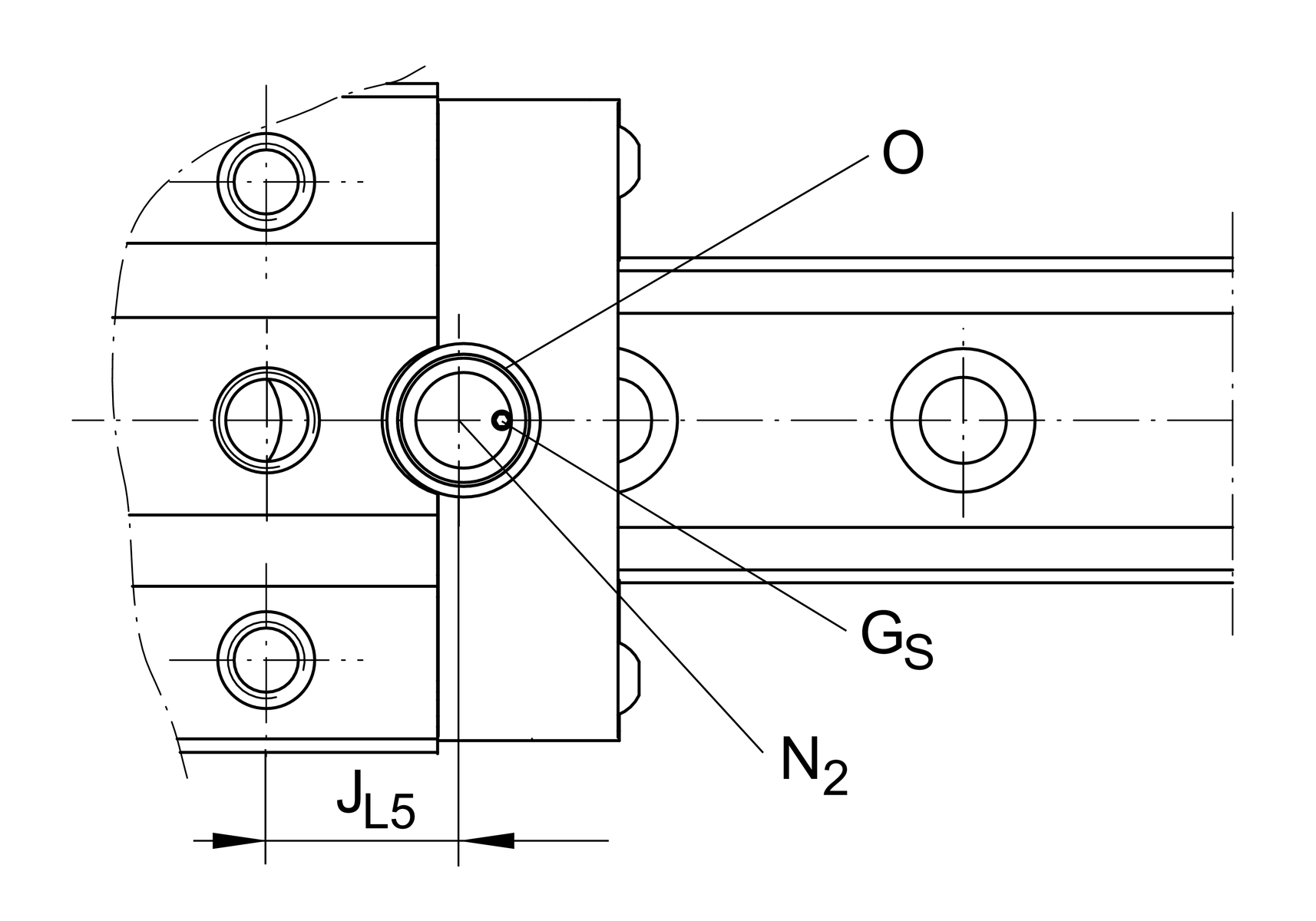

| JL5 | 20.3 mm | 5 |
| GS | M4x4 | |
| O | 10x1,5 | O-Ring DIN 3771 |
Main dimensions
| lmax | 3,930 mm | Max length single piece guideway 6 |
| H | 40 mm | height system |
| B | 48 mm | width carriage |
| L | 107 mm | overall length carriage 7 |
Technical data

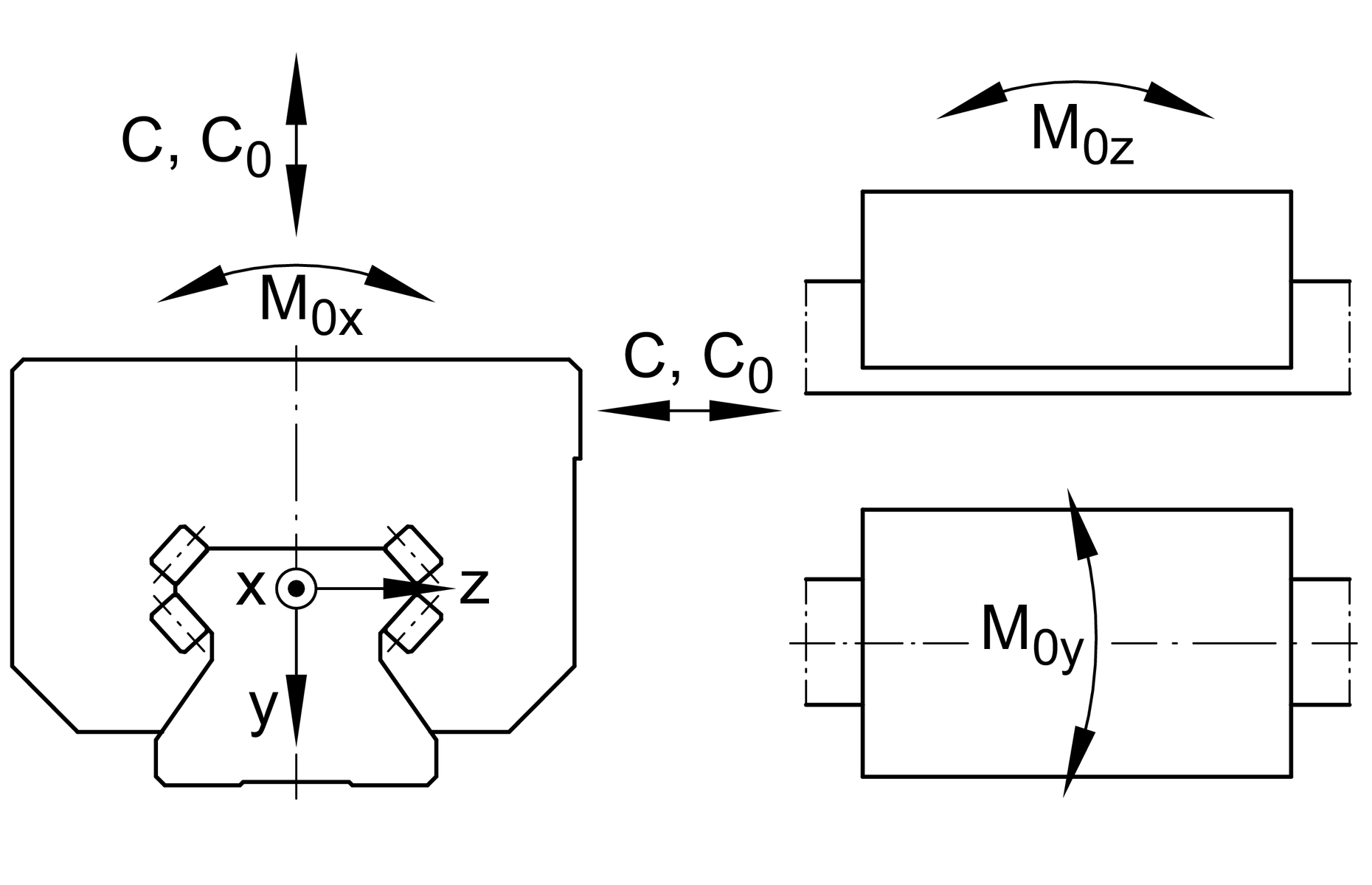

| C | 33,500 N | dynamic load rating 8 |
| C0 | 82,000 N | static load rating 8 |
| M0x | 350 Nm | static moment rating about X axis |
| M0y | 760 Nm | static moment rating about Y axis |
| M0z | 680 Nm | static moment rating about Z axis |
Related products
RWU25-E-HL | Carriage | |
TSX25-D | Guideway |
Your current product variant
| Size code | 25 | |
| Carriage design | HL | High, long carriage |
