ARCALUB-C2-2P-OIL-24VDC
Automatic lubricator CONCEPT ARCALUB-C2-2P-OIL-24VDC
Add item
Technical data
Piston pump
Functional principle
VLub
300 cm³
Lubricant volume
0.15 cm³
Metering quantity (per outlet and stroke/impulse)
pop
30 bar
Operating pressure, max.
Lubricating oil > 68 mm²/s
Lubricant
npb
2
Number of pump bodies
nout
2
Number of outlets
≤ 2
Number of lubrication points: direct
≤ 4
Number of lubrication points: with splitters
> 4
Number of lubrication points: with progressive distributors
PA hose
Connection
Uop
DC 24 V
Operating voltage
M12 x 1, 4 pin
Connection plug for multi-function interface
Imax
<= 250 mA
Current consumption (DC 24 V)
microelectronic
Controller (integrated)
PLC
Controller (extern)
Integrated, electronic
Monitoring: pressure
External (PLC)
Monitoring: fill level
Empty level, back pressure, internal error (PLC)
Error message
IP54
Protection class
Polyamide
Housing material
tmin
-20 °C
Operating temperature, min.
tmax
70 °C
Operating temperature, max.
vertical
Mounting position

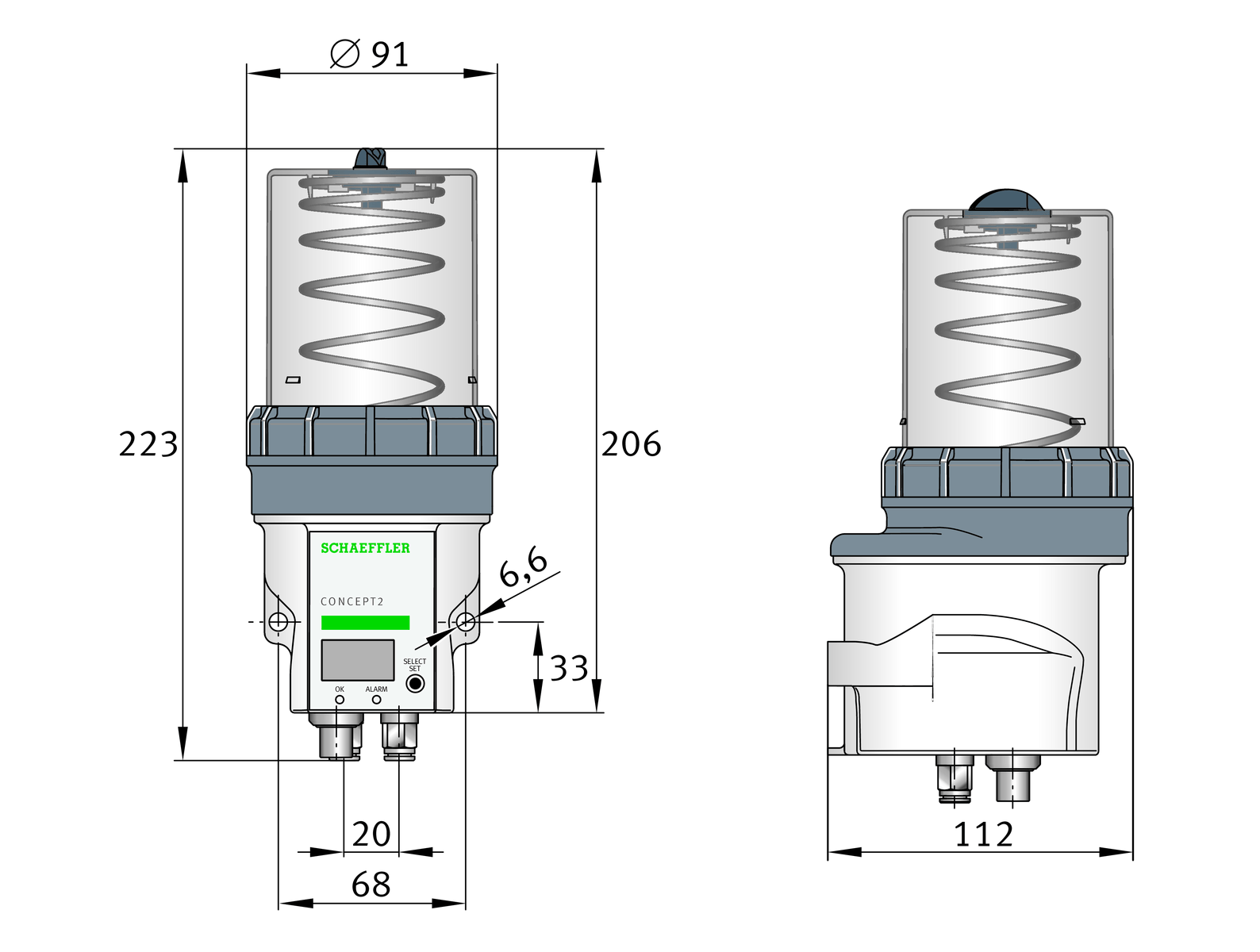

91 x 223 x 112
Dimensions (mm)
≈m
1 kg
Weight

Your current product variant
Drive SystemPPPiston pump
Lubricant volumeV250/300250/300 cm³
