Technical data
Piston pump | Functional principle | |
| VLub | 250 cm³ | Lubricant volume |
0.15 cm³ | Metering quantity (per outlet and stroke/impulse) | |
| pop | 50 bar | Operating pressure, max. |
≤ NLGI 2 (suitability test required) | Lubricant | |
| npb | 2 | Number of pump bodies |
| nout | 2 | Number of outlets |
≤ 2 | Number of lubrication points: direct | |
≤ 4 | Number of lubrication points: with splitters | |
> 4 | Number of lubrication points: with progressive distributors | |
PA hose | Connection | |
| Uop | 3-V lithium-metal battery | Operating voltage |
microelectronic | Controller (integrated) | |
PLC | Controller (extern) | |
Integrated, electronic | Monitoring: pressure | |
External (PLC) | Monitoring: fill level | |
Empty level, back pressure, internal error (PLC) | Error message | |
IP54 | Protection class | |
Polyamide | Housing material | |
| tmin | -20 °C | Operating temperature, min. |
| tmax | 70 °C | Operating temperature, max. |
vertical | Mounting position | |

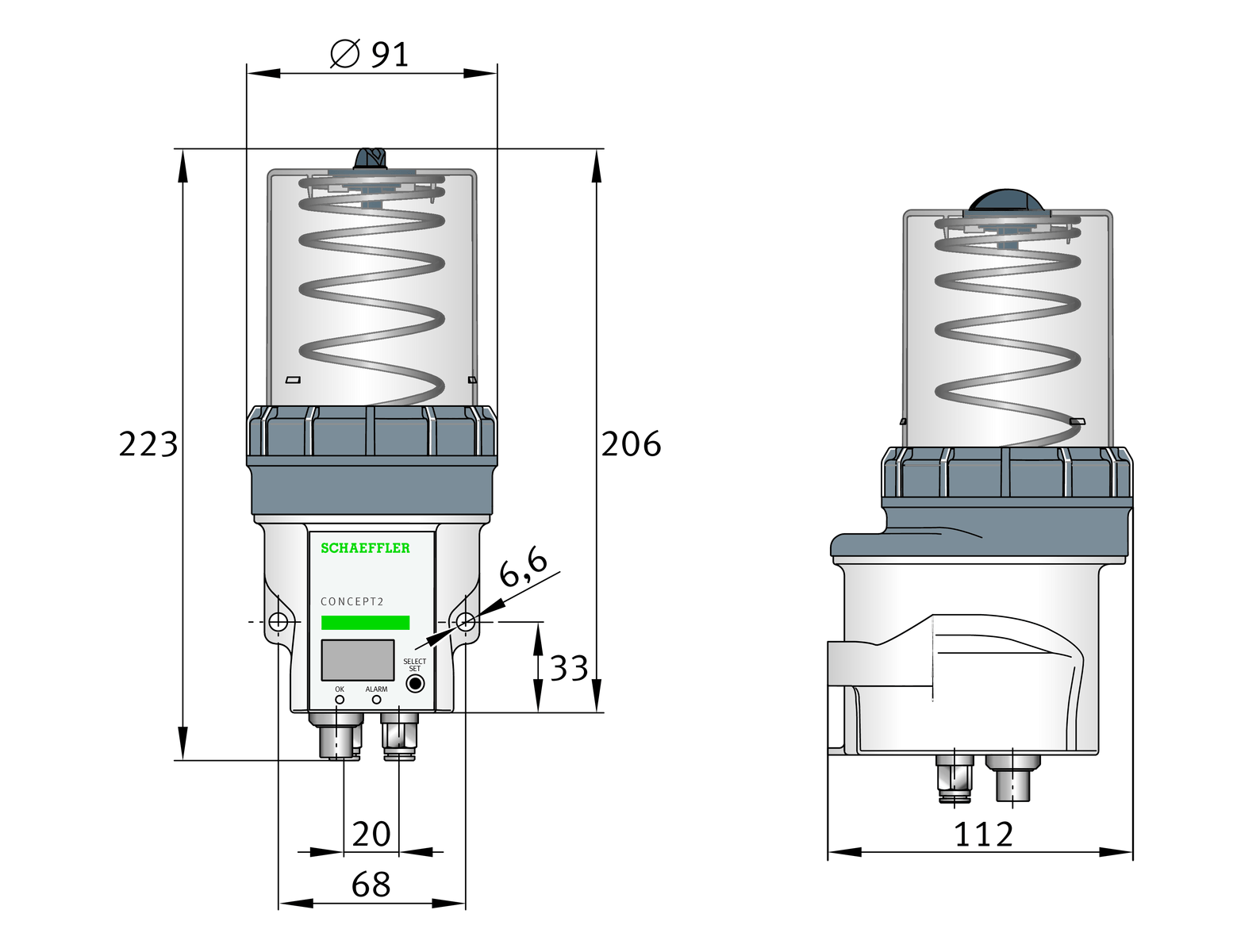

91 x 223 x 112 | Dimensions (mm) | |
| ≈m | 1 kg | Weight |
Your current product variant
| Drive System | PP | Piston pump |
| Lubricant volume | V250/300 | 250/300 cm³ |
