Technical data
Gas drive | Functional principle | |
| VLub | 60 cm³ | Lubricant volume |
| pop | 5 bar | Operating pressure, max. |
ARCANOL-FOOD2 | Lubricant | |
| nout | 1 | Number of outlets |
1 | Number of lubrication points: direct | |
| Uop | — | Operating voltage |
IP68 | Protection class | |
Polyethylenterephthalat (PET) | Housing material | |
| tmin | -20 °C | Operating temperature, min. |
| tmax | 55 °C | Operating temperature, max. |
arbitrary | Mounting position | |
G¼ | Connection thread | |

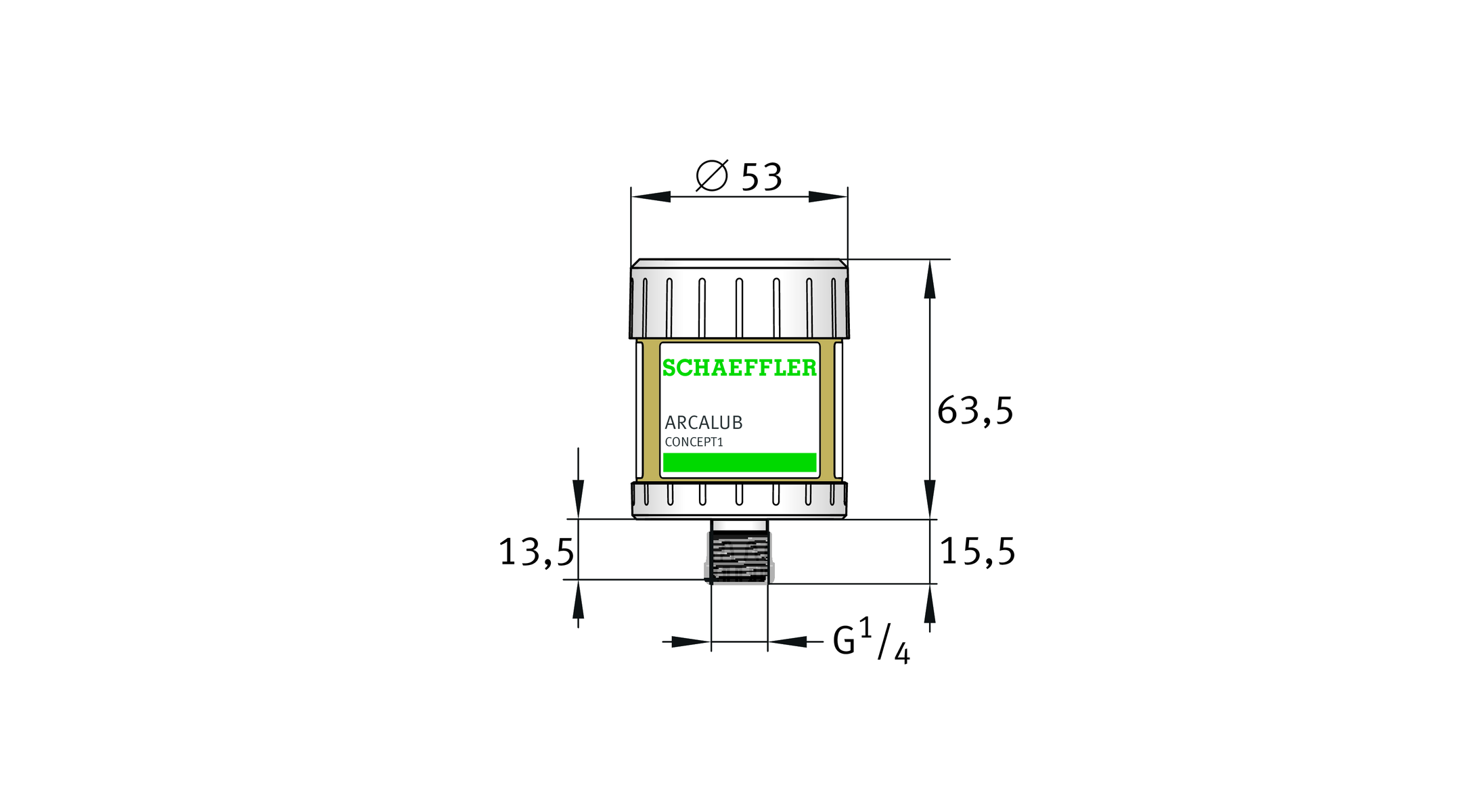

79 x 53 x 53 | Dimensions (mm) | |
| ≈m | 121 g | Weight |
Your current product variant
| Drive System | HG | Hydrogen gas development cell |
| Lubricant volume | V60 | 60 cm³ |
